21D-64M8766 - Troy-Bilt Bronco CRT Tiller (2016) Drive Assembly Parts Diagram

Bronco CRT Tiller

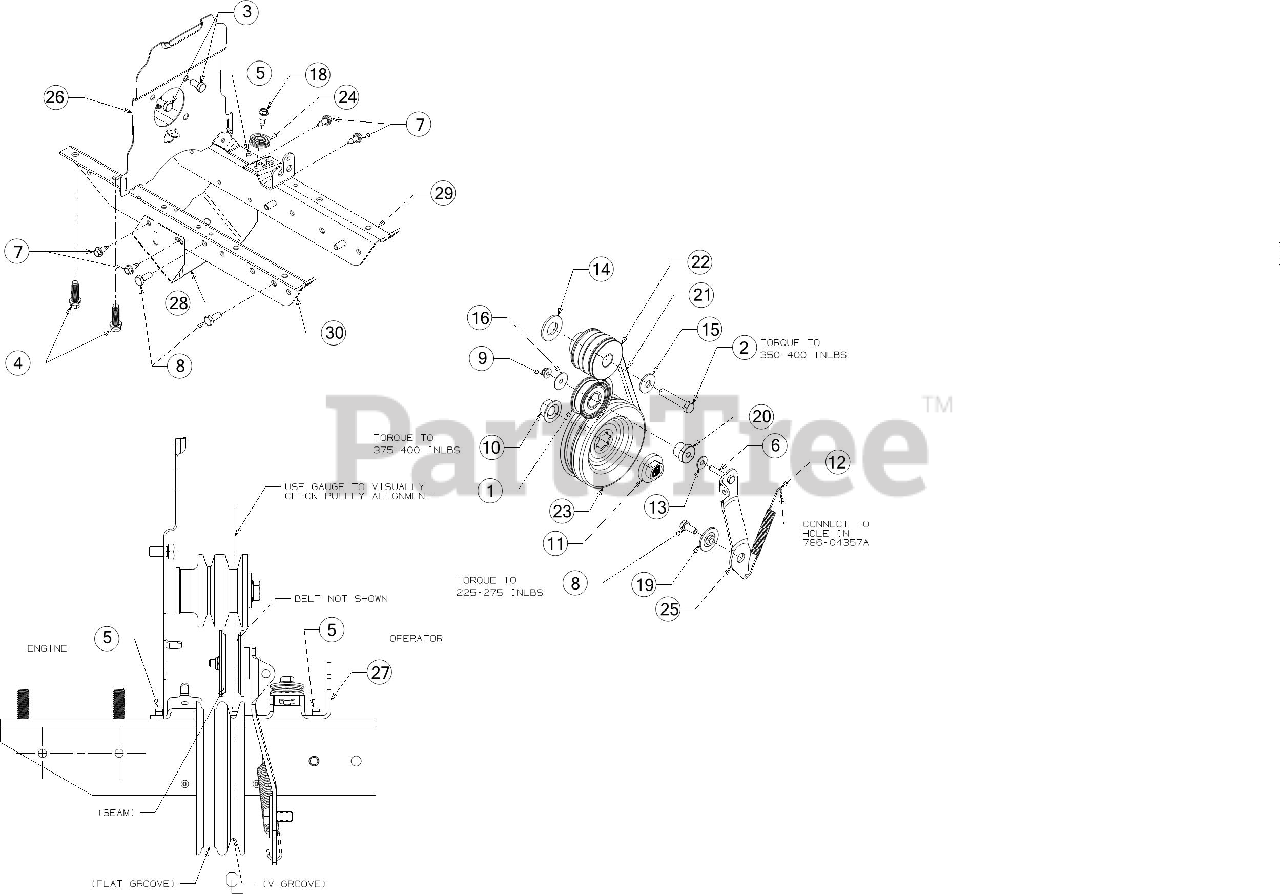

Drive Assembly Parts Diagram

  • Title

1

Troy-Bilt 684-04168

IDLER PULLEY ASSEMBLY

$41.99

$

In Stock, only 3 left!

0

1

Troy-Bilt 790-00230

BEARING SLEEVE

$7.99

$

In Stock, only 2 left!

0

1

Troy-Bilt 941-0919B

BALL BEARING

$21.99

$

In Stock, Qty 20+

0

2

Troy-Bilt 710-0151

HEX SCREW 3/8-24 X2.00

$7.99

$

In Stock, only 2 left!

0

3

Troy-Bilt 710-0170

HEX SCREW 5/16-24 x .62

$6.99

$

In Stock, Qty 11

0

4

Troy-Bilt 710-0502A

SCREW 3/8-16 x 1.250

$6.99

$

In Stock, Qty 9

0

5

Troy-Bilt 710-0599

SCREW 1/4-20 X.500

$4.49

$

In Stock, Qty 20+

0

6

Troy-Bilt 710-0606

SCREW 1/4-20 x 1.50 GR.5

$5.99

$

In Stock, Qty 7

0

7

Troy-Bilt 710-0896

SCREW 1/4-14 x .625

$4.49

$

In Stock, Qty 8

0

8

Troy-Bilt 710-1880

SCREW 5/16-18 x .750

$4.99

$

Usually ships in 3-6 days

0

9

Troy-Bilt 712-04064

FLANGE LOCK NUT

$4.49

$

In Stock, Qty 20+

0

10

Troy-Bilt 712-0700

FLANGE NUT W/HUB

$11.99

$

In Stock, Qty 6

0

11

Troy-Bilt 718-04407

PULLEY HUB

$13.99

$

In Stock, Qty 9

0

12

Troy-Bilt 732-04085

RETURN SPRING

$14.99

$

In Stock, only 1 left!

0

13

Troy-Bilt 736-0173

FLAT WASHER .28 ID x .74 OD x .063

$4.49

$

In Stock, Qty 20+

0

14

Troy-Bilt 736-0315

FLAT WASHER

$7.49

$

In Stock, only 2 left!

0

15

Troy-Bilt 936-0452

BELL WASHER
(Superseded to 736-0452)

$4.99

$

In Stock, only 4 left!

0

16

Troy-Bilt 736-3092

FLAT WASHER

$4.49

$

In Stock, only 4 left!

0

18

Troy-Bilt 738-04425

SHOULDER SCREW

$4.49

$

In Stock, Qty 20+

0

19

Troy-Bilt 748-04087A

PIVOT IDLER SPACER

$6.99

$

In Stock, only 2 left!

0

20

Troy-Bilt 750-04571

SHOULDER SPACER

$7.49

$

In Stock, Qty 6

0

21

Troy-Bilt 954-04090

V-BELT FWD DRIVE 4L x 25.375

$21.99

$

In Stock, Qty 20+

0

22

Troy-Bilt 756-04198A

ENGINE PULLEY

$59.99

$

Usually ships in 3-6 days

0

23

Troy-Bilt 756-04355

TRANSMISSION PULLEY

$58.99

$

In Stock, Qty 10

0

24

Troy-Bilt 756-0625

CABLE GUIDE ROLLER

$9.99

$

In Stock, Qty 6

0

25

Troy-Bilt 786-04312

FORWARD IDLER BRACKET

$14.99

$

Usually ships in 3-6 days

0

26

Troy-Bilt 786-04343-0638

REVERSE IDLER BRACKET

$21.99

$

Usually ships in 3-6 days

0

27

Troy-Bilt 786-04357A-0638

CABLE BRACKET ROLLER

$11.99

$

Usually ships in 3-6 days

0

28

Troy-Bilt 786-04371-0638

PULLEY SHIELD

$21.99

$

Usually ships in 3-6 days

0

29

Troy-Bilt 786-04418B-0638

FRAME-MOUNT (RH)
(Superseded to 986-04418B-0638)

$21.99

$

Usually ships in 3-6 days

0

30

Troy-Bilt 786-04419B-0638

FRAME-MOUNT (LH)
(Superseded to 986-04419B-0638)

$21.99

$

Usually ships in 3-6 days

0
