21D-655A766 - Troy-Bilt Pro-Line CRT Rear-Tine Tiller (2016) Tines Parts Diagram

Pro-Line CRT Rear-Tine Tiller

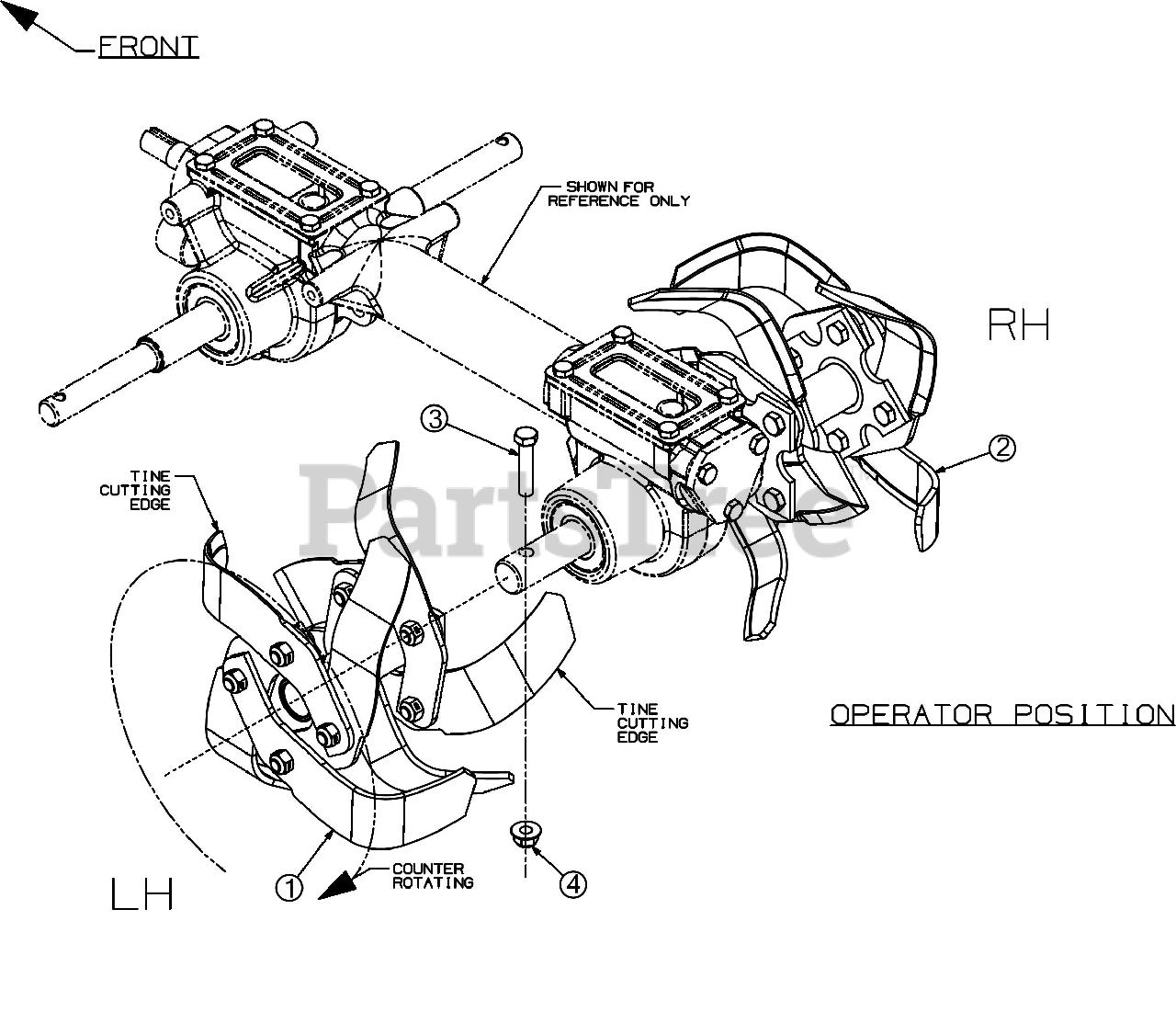

Tines Parts Diagram

  • Title

1

Troy-Bilt 686-04065-0638

TINE HOLDER ASSEMBLY

$

$

Currently unavailable

1

Troy-Bilt 710-0514

SCREW 3/8-16 x 1 GR5

Note: Not Shown

$4.49

$

In Stock, Qty 20+

0

1

Troy-Bilt 742-04226

BOLO TINE 10" (RH)

Note: Not Shown

Variations

742-04226-0637

Troy-Bilt 742-04226-0637

Bolo Tine, RH 10" Powder Black - POWDER BLACK (0637)

$17.99

$

In Stock, Qty 20+

0

742-04226-0638

Troy-Bilt 742-04226-0638

Bolo Tine, RH 10" - MTD/TROY-BILT RED (0638)

$17.99

$

In Stock, Qty 20+

0

$17.99

$

In Stock, Qty 20+

0

1

Troy-Bilt 912-3000

LOCK NUT 3/8-16
(Superseded to 712-3000)

Note: Not Shown

$4.49

$

In Stock, Qty 6

0

2

Troy-Bilt 686-04065-0638

TINE HOLDER ASSEMBLY

$

$

Currently unavailable

2

Troy-Bilt 710-0514

SCREW 3/8-16 x 1 GR5

Note: Not Shown

$4.49

$

In Stock, Qty 20+

0

2

Troy-Bilt 912-3000

LOCK NUT 3/8-16
(Superseded to 712-3000)

Note: Not Shown

$4.49

$

In Stock, Qty 6

0

2

Troy-Bilt 742-04227

BOLO TINE 10" (LH)

Note: Not Shown

Variations

742-04227-0637

Troy-Bilt 742-04227-0637

Bolo Tine, LH 10" Powder Black - POWDER BLACK (0637)

$17.99

$

Usually ships in 3-6 days

0

742-04227-0638

Troy-Bilt 742-04227-0638

Bolo Tine, LH 10" - MTD/TROY-BILT RED (0638)

$17.99

$

In Stock, Qty 7

0

$17.99

$

In Stock, Qty 5

0

3

Troy-Bilt 710-0347

HEX SCREW 3/8-16 x 1.75 GR5

$5.49

$

In Stock, Qty 20+

0

4

Troy-Bilt 712-04065

NUT

$4.49

$

In Stock, Qty 20+

0
