21R502-0002-H5 - Briggs & Stratton Vertical Engine Fuel Supply Group Parts Diagram

Vertical Engine

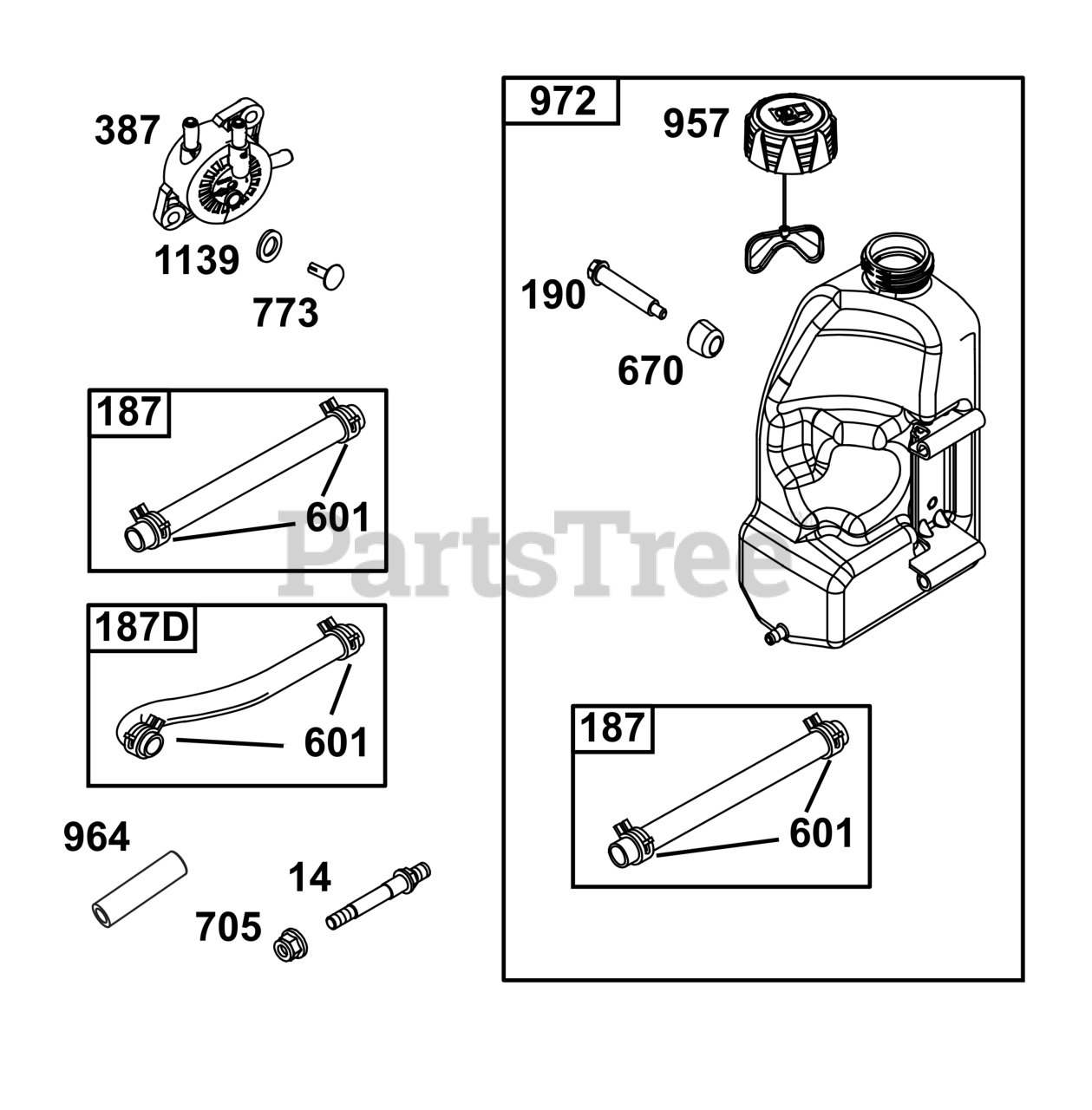

Fuel Supply Group Parts Diagram

  • Title

14

STUD

Note: (Part information located in Cylinder Head Group.)

$

$

Not available

187

Briggs & Stratton 791766

LINE, Fuel

$8.49

$

In Stock, Qty 11

0

187D

Briggs & Stratton 791744

LINE, Fuel

$16.99

$

In Stock, only 1 left!

0

190

Briggs & Stratton 796174

SCREW

Note: (Fuel Tank)

$

$

Not available

387

Briggs & Stratton 597338

PUMP, Fuel

$30.99

$

In Stock, Qty 20+

0

601

Briggs & Stratton 791850

CLAMP, Hose

$3.49

$

In Stock, Qty 9

0

670

Briggs & Stratton 796175

SPACER, Fuel Tank

$

$

Not available

705

Briggs & Stratton 790561

NUT

Note: (Fuel Tank)

$3.99

$

In Stock, only 2 left!

0

773

Briggs & Stratton 796448

RETAINER

$4.99

$

In Stock, Qty 12

0

957

Briggs & Stratton 795027

CAP, Fuel Tank

$10.99

$

In Stock, Qty 17

0

964

Briggs & Stratton 597560

CAP, Connector

$3.99

$

Usually ships in 2-12 days

0

972

Briggs & Stratton 792168

TANK, Fuel

$153.99

$

Usually ships in 2-12 days

0

1139

Briggs & Stratton 796449

WASHER

Note: (Fuel Pump Bracket)

$4.99

$

In Stock, only 3 left!

0
