21R707-0152-G1 - Briggs & Stratton Vertical Engine Flywheel, Ignition, and Starter Group Parts Diagram

Vertical Engine

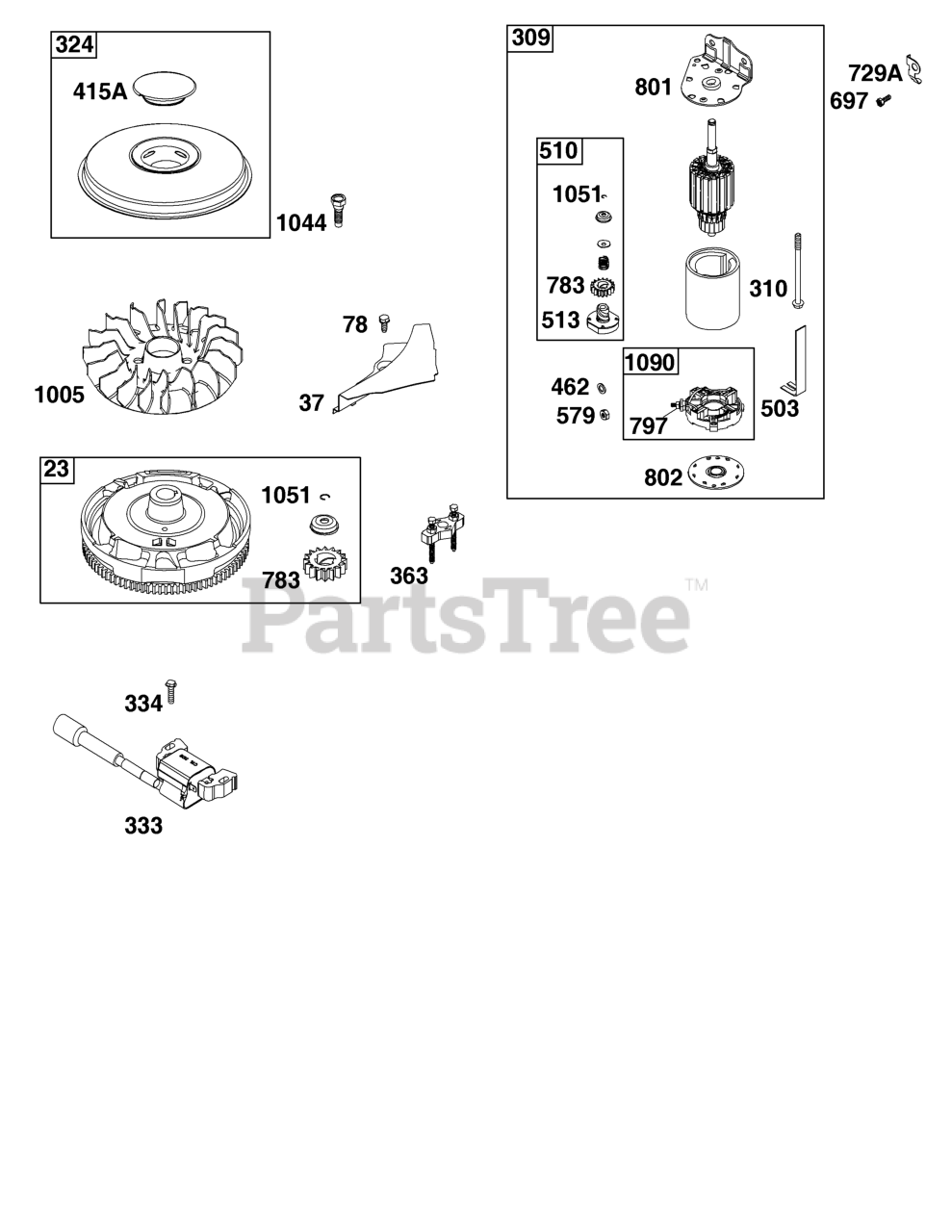

Flywheel, Ignition, and Starter Group Parts Diagram

  • Title

23

Briggs & Stratton 591759

FLYWHEEL

$270.99

$

Usually ships in 2-12 days

0

37

Briggs & Stratton 697352

GUARD, Flywheel

$11.99

$

In Stock, only 2 left!

0

78

Briggs & Stratton 691693

SCREW

$3.99

$

In Stock, only 2 left!

0

309

Briggs & Stratton 593934

MOTOR, Starter

$138.99

$

In Stock, Qty 14

0

310

Briggs & Stratton 690323

BOLT

Note: (Starter Motor)

$4.49

$

In Stock, only 2 left!

0

324

Briggs & Stratton 593933

SCREEN/CUP ASSEMBLY

$49.99

$

In Stock, only 4 left!

0

333

Briggs & Stratton 594626

ARMATURE, Magneto

$55.99

$

In Stock, Qty 15

0

334

Briggs & Stratton 691061

SCREW

Note: (Magneto Armature)

$3.49

$

In Stock, Qty 20+

0

363

Briggs & Stratton 19203

PULLER, Flywheel

$28.99

$

In Stock, only 2 left!

0

415A

Briggs & Stratton 794129

PLUG

$7.49

$

In Stock, only 2 left!

0

462

Briggs & Stratton 691261

WASHER

Note: (Starter Cable)

$4.49

$

In Stock, only 2 left!

0

503

Briggs & Stratton 691532

STRAP, Starter

$6.49

$

In Stock, only 1 left!

0

510

Briggs & Stratton 693699

DRIVE, Starter
(Superseded to 593934)

$138.99

$

In Stock, Qty 14

0

513

Briggs & Stratton 692024

CLUTCH, Drive

$23.99

$

In Stock, only 2 left!

0

579

Briggs & Stratton 691029

NUT

Note: (Starter Cable)

$5.99

$

Usually ships in 2-12 days

0

697

Briggs & Stratton 791680

SCREW

$4.49

$

In Stock, Qty 8

0

729A

Briggs & Stratton 691224

CLIP, Wire

$4.99

$

Usually ships in 2-12 days

0

783

Briggs & Stratton 593935

GEAR, Pinion

$27.99

$

Usually ships in 2-12 days

0

783

Briggs & Stratton 593935

GEAR, Pinion

$27.99

$

Usually ships in 2-12 days

0

797

Briggs & Stratton 693167

NUT

Note: (Brush Retainer)

$4.99

$

Usually ships in 2-12 days

0

801

Briggs & Stratton 691283

CAP, Drive

$92.99

$

Usually ships in 2-12 days

0

802

Briggs & Stratton 691286

CAP, End

$29.99

$

Usually ships in 2-12 days

0

1005

Briggs & Stratton 796200

FAN, Flywheel

$46.99

$

In Stock, only 2 left!

0

1044

Briggs & Stratton 698139

SCREW

Note: (Flywheel)

$6.49

$

In Stock, Qty 10

0

1051

Briggs & Stratton 691265

RING, Retaining

$5.99

$

In Stock, Qty 5

0

1051

Briggs & Stratton 691265

RING, Retaining

$5.99

$

In Stock, Qty 5

0

1090

Briggs & Stratton 691293

RETAINER, Brush

$31.99

$

In Stock, Qty 5

0
