21V82L30X8A (96147001704) - Murray 21" Walk-Behind Mower (2010) Deck & Engine Group (21V82L30X8A) Parts Diagram

21" Walk-Behind Mower

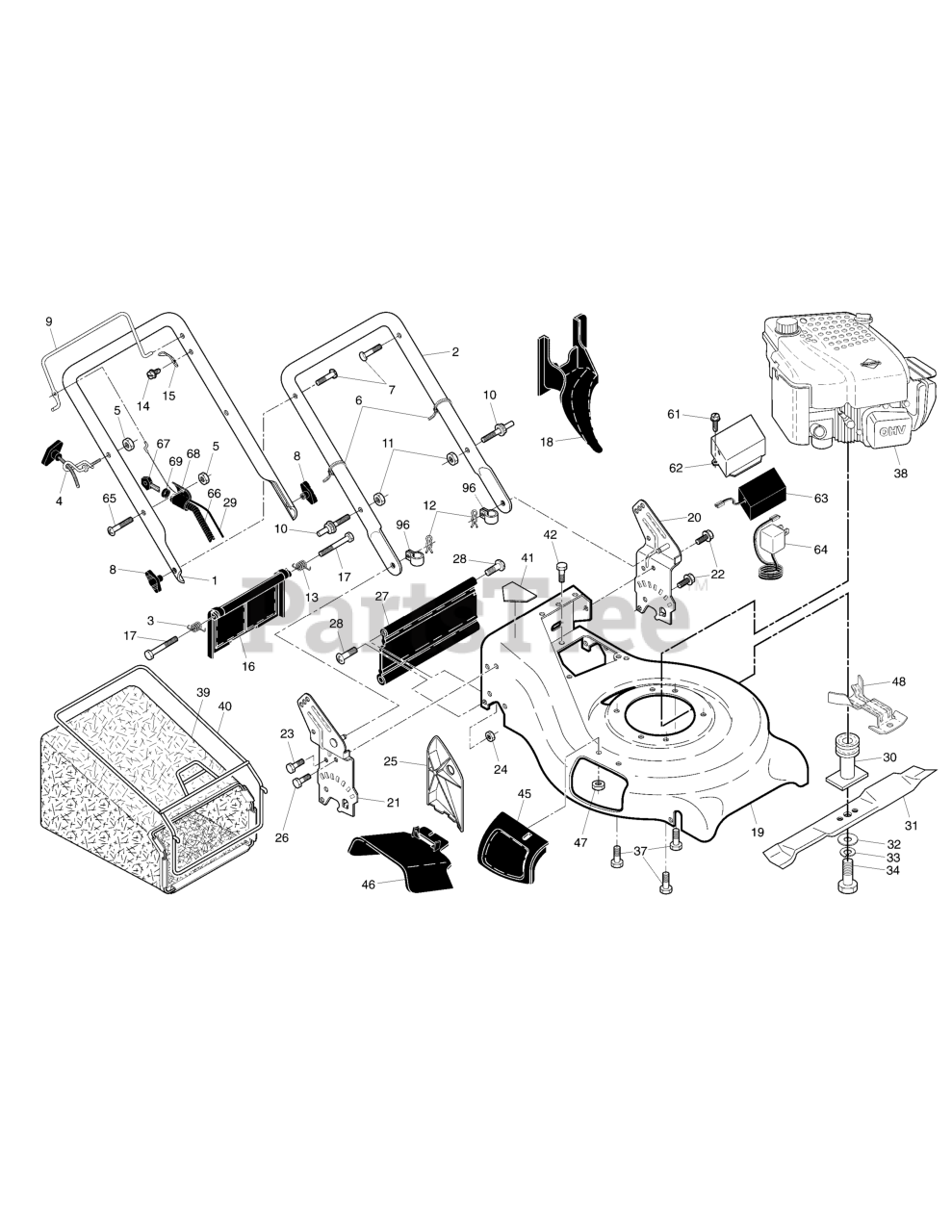

Deck & Engine Group (21V82L30X8A) Parts Diagram

  • Title

1

Murray 708676

Handle, Upper

$

$

Not available

2

Murray 193664X479

** Handle, Lower

Note: (This part is not serviced by Briggs & Stratton)

$

$

Not available

3

Murray 405416

** Spring, Rear Door, RH

Note: (This part is not serviced by Briggs & Stratton)

$5.99

$

In Stock, only 2 left!

0

4

Murray 709279

Rope Guide

$37.99

$

Usually ships in 2-12 days

0

5

Murray 709054

Nut, Hex, with Lockwasher Insert, 1/4-20

$4.99

$

Usually ships in 2-12 days

0

6

Murray 709409

Wire, Tie

$7.49

$

Usually ships in 2-12 days

0

7

Murray 709234

Bolt, Handle 5/16-18 x 2-5/8

$7.49

$

In Stock, only 4 left!

0

8

Murray 709219

Knob, Handle

$7.99

$

Usually ships in 2-12 days

0

9

Murray 708675

Control Bar

$

$

Not available

10

Murray 188821

** Pin, Handle Adjustment

Note: (This part is not serviced by Briggs & Stratton)

$

$

Not available

11

Murray 705355

Nut, Hex

$13.99

$

In Stock, only 1 left!

0

12

Murray 709387

Cotter, Hairpin

$9.99

$

Usually ships in 2-12 days

0

13

Murray 405415

** Spring, Rear Door, LH

Note: (This part is not serviced by Briggs & Stratton)

$5.99

$

In Stock, only 2 left!

0

14

Murray 708466

Screw

$

$

Not available

15

Murray 708689

Bracket, Upstop

$

$

Not available

16

Murray 401815X428

** Rear Door Assembly

Note: (This part is not serviced by Briggs & Stratton)

$

$

Not available

17

Murray 709205

Bolt, Rear Door

$5.49

$

Usually ships in 2-12 days

0

18

Murray 198170

** Plug, Mulcher

Note: (This part is not serviced by Briggs & Stratton)

$43.99

$

In Stock, only 2 left!

0

19

Murray 415192

** Kit, Housing

Note: (This part is not serviced by Briggs & Stratton)

$

$

Not available

20

Murray 192980X479

** Handle Bracket Asembly, LH

Note: (This part is not serviced by Briggs & Stratton)

$

$

Not available

21

Murray 192979X479

** Handle Bracket Assembly, RH

Note: (This part is not serviced by Briggs & Stratton)

$

$

Not available

22

Murray 708472

Screw, Hex Washer Head

$

$

Not available

23

Murray 163183

** Bolt, Hex Head 5/16-18 x 5/8

Note: (This part is not serviced by Briggs & Stratton)

$

$

Not available

24

Murray 705350

Nut, Hex, with Lockwasher Insert 5/16-18

$5.99

$

Usually ships in 2-12 days

0

25

Murray 161333

** Baffle, Side

Note: (This part is not serviced by Briggs & Stratton)

$

$

Not available

26

Murray 709115

Screw #12 x 5/8
(Superseded to 707720)

$6.49

$

Usually ships in 2-12 days

0

27

Murray 192876

** Skirt, Rear

Note: (This part is not serviced by Briggs & Stratton)

$

$

Not available

28

Murray 708006

Screw, Hinge 1/4-20 x 1.25

$

$

Not available

29

Murray 195948

** Cable, Operator Presence

Note: (This part is not serviced by Briggs & Stratton)

$

$

Not available

30

Murray 707994

Blade Adapter / Pulley
(Superseded to 709733)

$33.99

$

Usually ships in 2-12 days

0

31

Murray 709315

Blade, 21"

$39.99

$

In Stock, Qty 9

0

32

Murray 709448

Washer

$9.99

$

In Stock, only 3 left!

0

33

Murray 705316

Washer, Lock

$5.99

$

In Stock, only 1 left!

0

34

Murray 709449

Bolt, Hex Head

$9.99

$

In Stock, Qty 6

0

37

Murray 709093

Bolt, Engine
(Superseded to 709443)

$8.49

$

Usually ships in 2-12 days

0

38

Murray 12Q505-0933-B1

* Engine, Briggs & Stratton

Note: ( Engine Model: 12Q505-0933-B1 )

$

$

Currently unavailable

39

Murray 436943

** Grassbag

Note: (This part is not serviced by Briggs & Stratton)

$

$

Currently unavailable

40

Murray 411951

** Frame, Grassbag

Note: (This part is not serviced by Briggs & Stratton)

$

$

Not available

41

Murray 708373

Danger Decal
(Superseded to 709792)

$11.99

$

Usually ships in 2-12 days

0

42

Murray 705321

Screw, Hex Washer Head
(Superseded to 709742)

$8.99

$

Usually ships in 2-12 days

0

45

Murray 183058X428

** Mulcher Door Assembly

Note: (This part is not serviced by Briggs & Stratton)

$

$

Not available

46

Murray 169699X428

** Discharge Guard

Note: (This part is not serviced by Briggs & Stratton)

$

$

Not available

47

Murray 88349

Nut, Hex

$

$

Currently unavailable

48

Murray 708674

Belt Keeper

$

$

Not available

61

Murray 709115

Screw, Hi-Lo Thread
(Superseded to 707720)

$6.49

$

Usually ships in 2-12 days

0

62

Murray 408002

** Battery Box

Note: (This part is not serviced by Briggs & Stratton)

$

$

Not available

63

Murray 189589

** Battery

Note: (This part is not serviced by Briggs & Stratton)

$

$

Not available

64

Murray 192436

** Battery Charger, C.E.

Note: (This part is not serviced by Briggs & Stratton)

$

$

Not available

65

Murray 186159

** Screw

Note: (This part is not serviced by Briggs & Stratton)

$

$

Not available

66

Murray 197363

** Wiring Harness

Note: (This part is not serviced by Briggs & Stratton)

$55.99

$

Usually ships in 3-10 days

0

67

Murray 180331

** Key

Note: (This part is not serviced by Briggs & Stratton)

$6.99

$

In Stock, Qty 9

0

68

Murray 194953

** Key Start Switch

Note: (This part is not serviced by Briggs & Stratton)

$

$

Not available

69

Murray 194848

** Nut, Cap

Note: (This part is not serviced by Briggs & Stratton)

$

$

Not available

96

Murray 709289

Clip, Cable

$7.49

$

Usually ships in 2-12 days

0

- -

Murray 708374

Warning Decal (not shown)

$

$

Not available

- -

Murray 709267

Operator's Manual, English

$13.99

$

Usually ships in 2-12 days

0

- -

Murray 193743

Operator's Manual, Spanish

$2.99

$

Usually ships in 3-10 days

0
