21V82L30X8A (96147001704) - Murray 21" Walk-Behind Mower (2010) Wheels Group (21V82L30X8A) Parts Diagram

21" Walk-Behind Mower

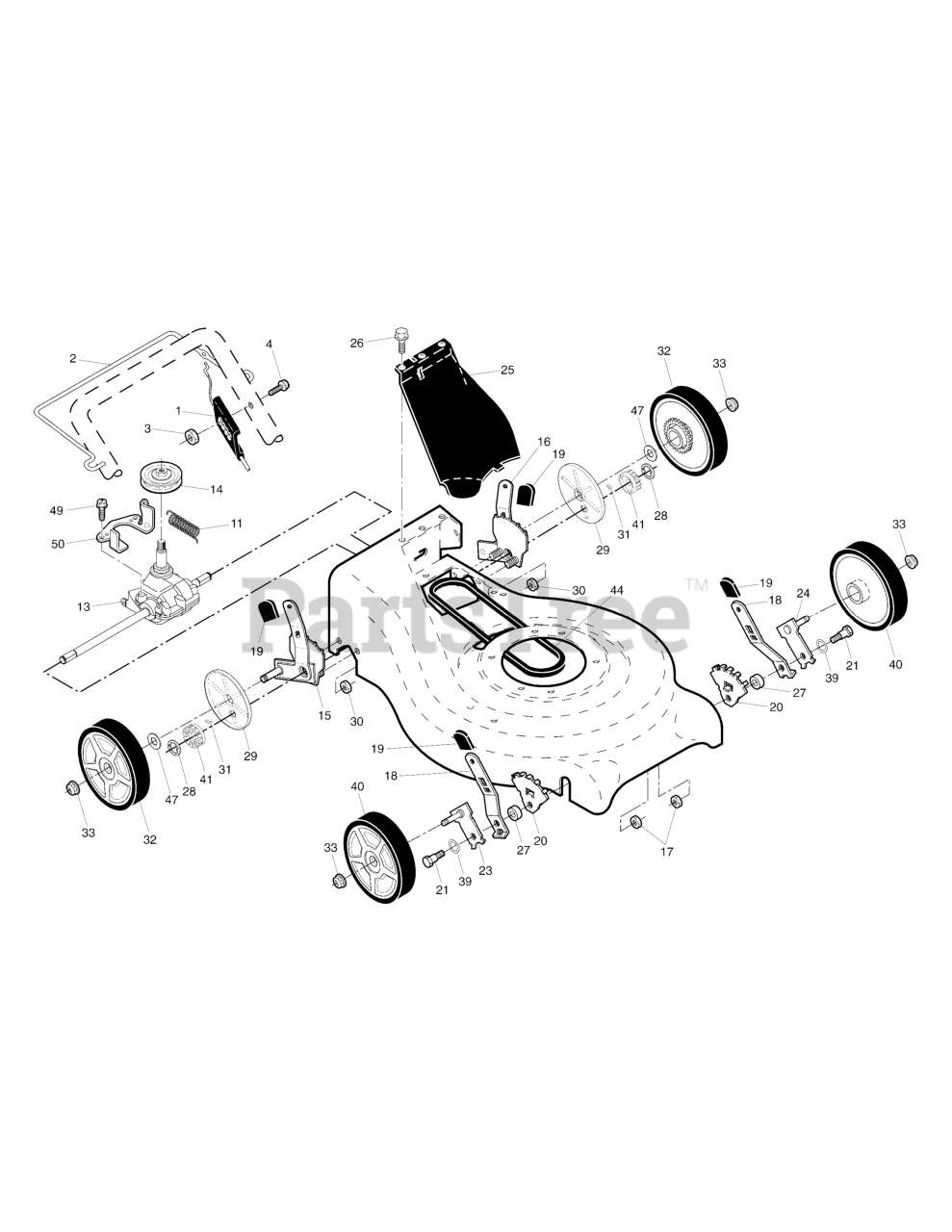

Wheels Group (21V82L30X8A) Parts Diagram

  • Title

1

Murray 404846

** Drive Control Assembly (Includes Cable)

Note: (This part is not serviced by Briggs & Stratton.)

$

$

Not available

2

Murray 709274

Bar, Drive Control

$34.99

$

Usually ships in 2-12 days

0

3

Murray 709237

Nut, Hex

$6.99

$

Usually ships in 2-12 days

0

4

Murray 708338

Screw

$6.49

$

Usually ships in 2-12 days

0

11

Murray 709314

Spring, Return

$6.49

$

Usually ships in 2-12 days

0

13

Murray 419214

** Gear Case Assembly, Complete

Note: (This part is not serviced by Briggs & Stratton.)

$

$

Not available

14

Murray 193443

** Pulley, Drive

Note: (This part is not serviced by Briggs & Stratton.)

$17.99

$

Usually ships in 3-10 days

0

15

Murray 409073

** Kit, Wheel Adjuster Assembly, RH (Includes Knob and Bearing)

Note: (This part is not serviced by Briggs & Stratton.)

$27.99

$

Usually ships in 3-10 days

0

16

Murray 409074

** Kit, Wheel Adjuster Assembly, LH (Includes Knob and Bearing)

Note: (This part is not serviced by Briggs & Stratton.)

$

$

Not available

17

Murray 709354

Nut, Hex

$8.99

$

Usually ships in 2-12 days

0

18

Murray 709304

Spring, Selector

$12.99

$

In Stock, only 1 left!

0

19

Murray 709451

Knob, Selector Spring

$9.49

$

In Stock, only 2 left!

0

20

Murray 708661

Bracket, Wheel Adjusting

$8.99

$

Usually ships in 2-12 days

0

21

Murray 709307

Bolt, Shoulder

$7.99

$

In Stock, only 1 left!

0

23

Murray 709301

Axle Arm Assembly, RH

$16.99

$

In Stock, only 1 left!

0

24

Murray 709300

Axle Arm Assembly, LH

$14.99

$

Usually ships in 2-12 days

0

25

Murray 408001X428

** Cover Drive

Note: (This part is not serviced by Briggs & Stratton.)

$

$

Not available

26

Murray 708466

Screw, Threaded, Rolled #10-25 x .50

$6.49

$

Usually ships in 2-12 days

0

27

Murray 709305

Spacer

$10.99

$

Usually ships in 2-12 days

0

28

Murray 709024

E-Ring 7/16
(Superseded to 709760)

$6.49

$

Usually ships in 2-12 days

0

29

Murray 708220

Cover, Dust, Wheel
(Superseded to 707715)

$14.99

$

In Stock, only 1 left!

0

30

Murray 709432

Nut, Hex
(Superseded to 705713)

$5.99

$

Usually ships in 2-12 days

0

31

Murray 709310

Pawl

$5.99

$

Usually ships in 2-12 days

0

32

Murray 405744X460

** Wheel & Tire Assembly, Rear

Note: (This part is not serviced by Briggs & Stratton.)

$

$

Not available

33

Murray 709321

Nut, Flangelock 3/8-16

$9.99

$

In Stock, only 1 left!

0

41

Murray 404835

** Pinion, Gear

Note: (This part is not serviced by Briggs & Stratton.)

$6.49

$

In Stock, Qty 20+

0

39

Murray 709306

Washer, Curved, Cylindrical

$10.99

$

Usually ships in 2-12 days

0

40

Murray 708615

Wheel & Tire Assembly, Front

$26.99

$

Usually ships in 2-12 days

0

44

Murray 406580

** V-Belt

Note: (This part is not serviced by Briggs & Stratton.)

$30.99

$

In Stock, only 4 left!

0

47

Murray 709410

Washer

$7.49

$

Usually ships in 2-12 days

0

49

Murray 709115

Screw, Hi-Lo Thread #12 x 5/8

$4.99

$

Usually ships in 2-12 days

0

50

Murray 404832X004

** Belt Keeper

Note: (This part is not serviced by Briggs & Stratton.)

$6.49

$

Usually ships in 3-10 days

0
