22-11B501 (211-5) - Toro Yard Tractor (1985) CLUTCH, BRAKE AND SPEED CONTROL LINKAGE Parts Diagram

Yard Tractor

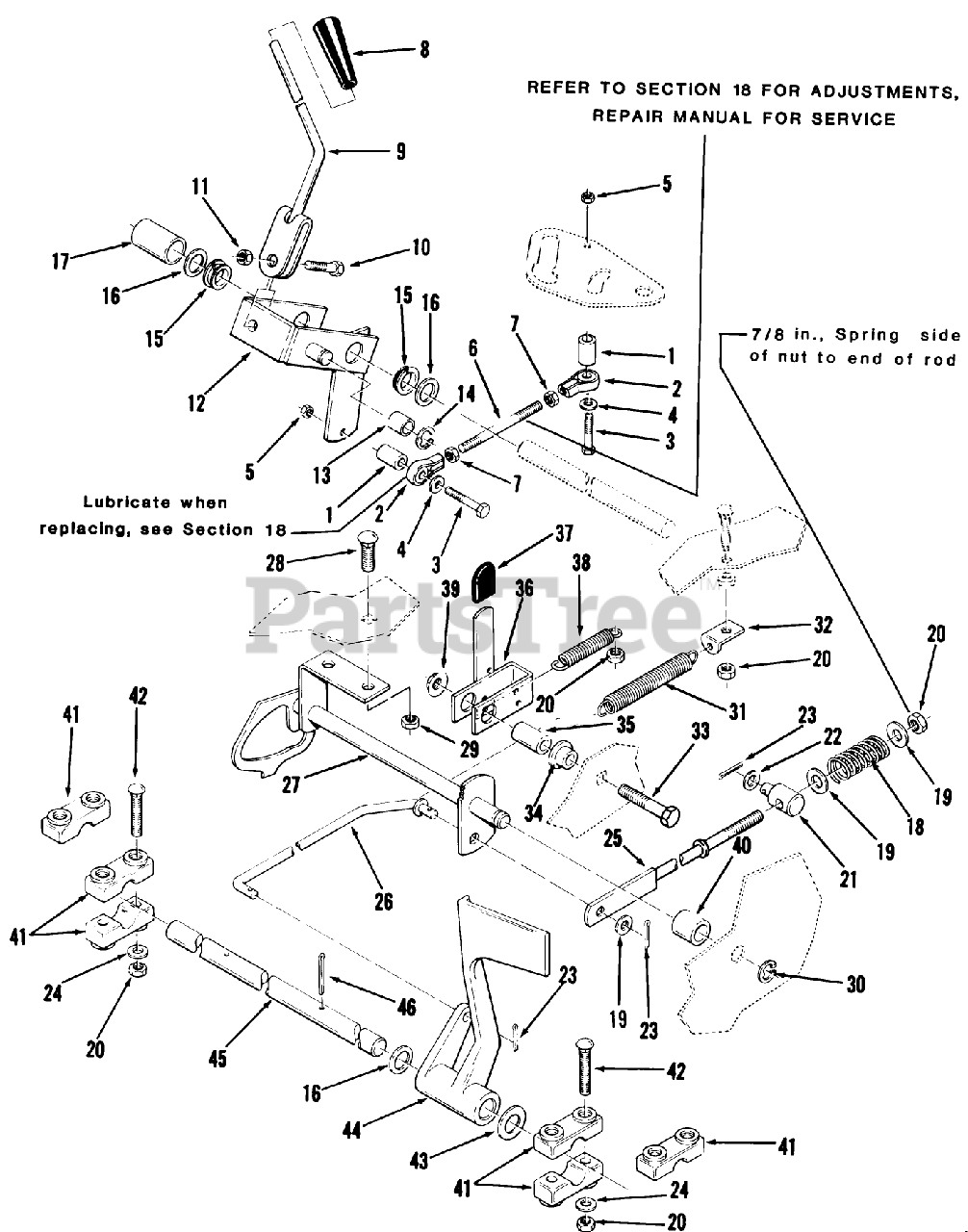

CLUTCH, BRAKE AND SPEED CONTROL LINKAGE Parts Diagram

  • Title

1

Toro 100304

Spacer

$7.49

$

Usually ships in 3-6 days

0

2

Toro 110189

ASSY ROD END

$

$

Not available

3

Toro 908007

Bolt 1/4-20 X 1 1/2
(Superseded to 321-9)

$5.49

$

In Stock, Qty 20+

0

4

Toro 920007

USE 920007P WASHER
(Superseded to 3256-22)

$0.99

$

In Stock, Qty 20+

0

5

Toro 915111

Nut
(Superseded to 3217-5)

$0.99

$

In Stock, Qty 6

0

6

Toro 109413

Control Rod

$

$

Not available

7

Toro 915083

Jam Nut 1/4-28
(Superseded to 3220-1)

$1.49

$

Usually ships in 3-6 days

0

8

Toro 6129

KNOB

$14.99

$

In Stock, only 2 left!

0

9

Toro 110642

CONTROL ARM ASSY OBS

$

$

Not available

10

Toro 908035

Bolt
(Superseded to 323-7)

$3.49

$

In Stock, Qty 20+

0

11

Toro 915663

NUT
(Superseded to 3296-39)

$2.99

$

In Stock, Qty 20+

0

12

Toro 109417

Control Cam
(Superseded to 114508)

$

$

Not available

13

Toro 100656

BEARING-CAM RETURN

$6.99

$

Usually ships in 3-6 days

0

14

Toro 5701

E Ring
(Superseded to 32120-47)

$1.49

$

In Stock, Qty 10

0

15

Toro 5985

Bushing
(Superseded to 86-9320)

$9.99

$

Usually ships in 3-6 days

0

16

Toro 920215

Washer
(Superseded to 9202154)

$3.49

$

In Stock, Qty 14

0

17

Toro 100171

SPACER

$

$

Not available

18

Toro 7602

SPRING FRICTION

$

$

Not available

19

Toro 920038

Collar
(Superseded to 3-2563)

$0.99

$

In Stock, Qty 9

0

20

Toro 915112

Nut
(Superseded to 3217-6)

$1.49

$

In Stock, only 2 left!

0

21

Toro 6739

TRUNNION-LIFT

$25.99

$

In Stock, only 2 left!

0

22

Toro 920009

Washer
(Superseded to 3256-24)

$0.99

$

In Stock, Qty 20+

0

23

Toro 932008

Cotter Pin
(Superseded to 3-2726)

$

$

Not available

24

Toro 920008

WASHER 5/16 SAE

$0.99

$

In Stock, Qty 8

0

25

Toro 109606

REAR BRAKE ROD ASM R

$

$

Not available

26

Toro 109423

BRAKE ROD (FRONT)

$

$

Not available

27

Toro 109407

ASSY NEUTRAL RETU R

$

$

Not available

28

Toro 900233

Carriage Bolt 3/8-16 X 3/4
(Superseded to 3231-30)

$4.99

$

In Stock, only 1 left!

0

29

Toro 915113

Nut
(Superseded to 32153-2)

$

$

Not available

30

Toro 5701

E Ring
(Superseded to 32120-47)

$1.49

$

In Stock, Qty 10

0

31

Toro 6949

CLUTCH SPRING

$

$

Not available

32

Toro 2534

CLIP - SPRING

$4.99

$

In Stock, only 2 left!

0

33

Toro 908038

Bolt
(Superseded to 323-10)

$1.49

$

In Stock, only 3 left!

0

34

Toro 101765

SPACER

$

$

Not available

35

Toro 102025

SPACER

$

$

Not available

36

Toro 110643

Parking Brake Lever

$

$

Not available

37

Toro 6820

GRIP

$2.99

$

In Stock, only 2 left!

0

38

Toro 103628

SPRING-EXTENSION

$14.99

$

In Stock, only 4 left!

0

39

Toro 102809

LOCKNUT-FLANGE
(Superseded to 32128-19)

$1.99

$

In Stock, Qty 6

0

40

Toro 6264

Spacer

$

$

Not available

41

Toro 106585

BLOCK PIVOT

$

$

Not available

42

Toro 900041

Washer
(Superseded to 3230-5)

$0.99

$

In Stock, Qty 20+

0

43

Toro 920261

Special Washer

$

$

Not available

44

Toro 110621

PEDAL CLUTCH R

$108.99

$

Usually ships in 3-6 days

0

45

Toro 109401

Shaft

$

$

Not available

46

Toro 932025

PIN

$

$

Not available
