22-12TE01 (YT 12-A) - Toro Yard Tractor (1986) Drive Belt And Pulleys - Automatic Model Parts Diagram

Yard Tractor

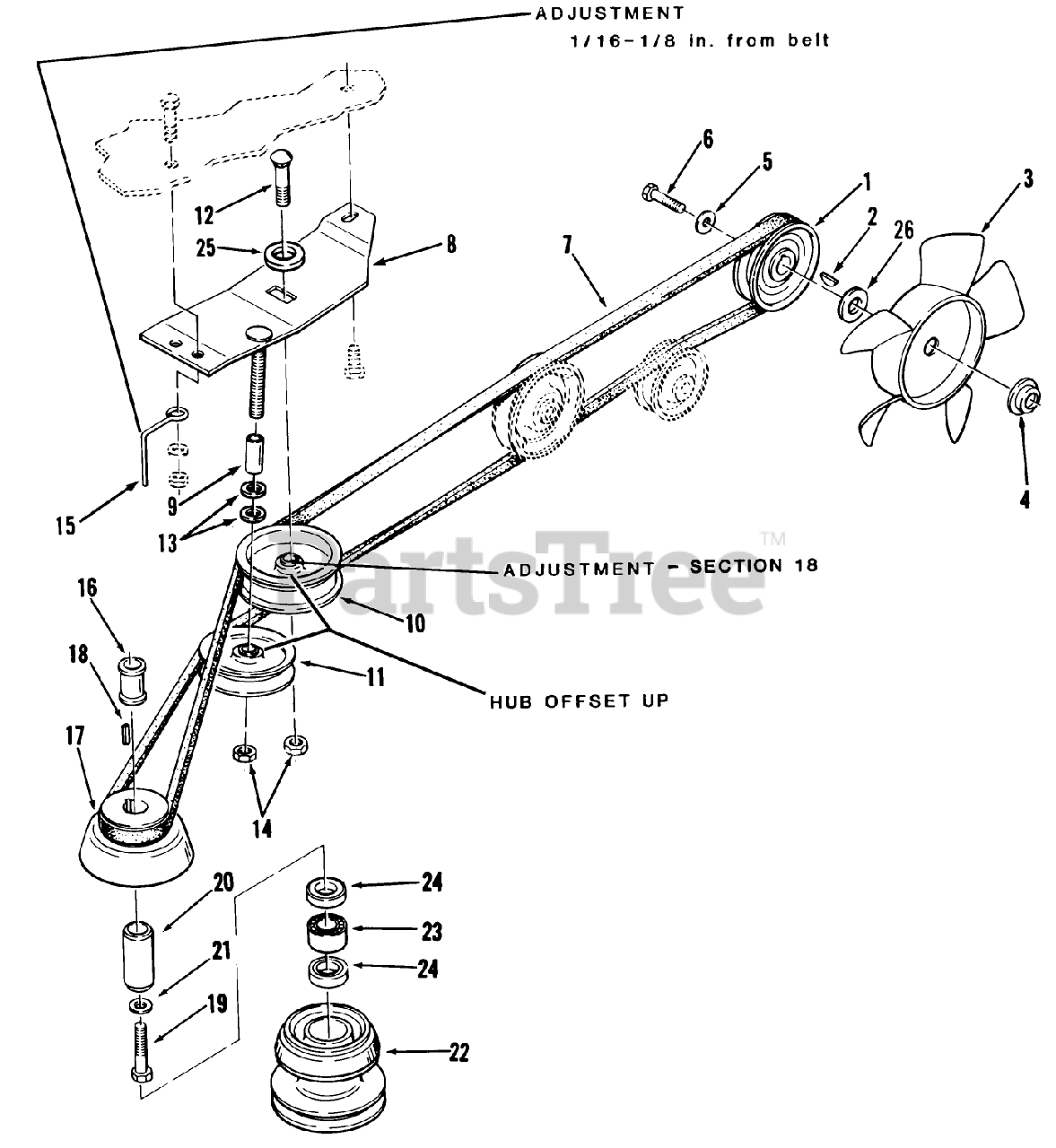

Drive Belt And Pulleys - Automatic Model Parts Diagram

  • Title

1

Toro 109387

DISCONTINUED

$

$

Not available

2

Toro 937082

KEY WOODR 1/8X1/2 DI

$

$

Not available

3

Toro 109389

DISCONTINUED

$

$

Not available

4

Toro 109798

DISCONTINUED

$

$

Not available

5

Toro 103995

WASHER

$9.99

$

Usually ships in 3-6 days

0

6

Toro 908005

See Supercession: 321-6
(Superseded to 321-6)

$0.99

$

In Stock, Qty 20+

0

7

Toro 109428

V-BELT

$50.99

$

In Stock, only 2 left!

0

8

Toro 109429

DISCONTINUED

$

$

Not available

9

Toro 109414

DISCONTINUED

$

$

Not available

10

Toro 105874

See Supercession: 92-7104
(Superseded to 92-7104)

$31.99

$

In Stock, only 2 left!

0

11

Toro 3205

V Idler Pulley

$

$

Currently unavailable

12

Toro 900065

See Supercession: 3231-4
(Superseded to 323-14)

$4.49

$

In Stock, Qty 20+

0

13

Toro 920009

See Supercession: 3256-24
(Superseded to 3256-24)

$0.99

$

In Stock, Qty 20+

0

14

Toro 915113

See Supercession: 32153-2
(Superseded to 32153-2)

$

$

Not available

15

Toro 6149

See Supercession: 703294
(Superseded to 703294)

$

$

Not available

16

Toro 106563

TUBE SPACER

$147.99

$

Usually ships in 3-6 days

0

17

Toro 108408

PULLEY-ENGINE

$244.99

$

Usually ships in 3-6 days

0

18

Toro 105453

KEY

$2.49

$

In Stock, only 2 left!

0

19

Toro 908195

HEX HD CAP SCREW

$

$

Not available

20

Toro 106564

DISCONTINUED

$

$

Not available

21

Toro 107750

DISCONTINUED

$

$

Not available

22

Toro 106565

See Supercession: 111321
(Superseded to 111321)

$

$

Not available

23

Toro 106769

BRG-NEEDLE OPEN END

$67.99

$

In Stock, only 2 left!

0

24

Toro 6663

SEAL-OIL

$

$

Not available

25

Toro 920011

See Supercession: 3256-26
(Superseded to 3256-26)

$0.99

$

In Stock, Qty 19

0

26

Toro 920261

Special Washer

$

$

Not available
