22-12TE01 (YT 12-A) - Toro Yard Tractor (1986) Front Axle And Steering (mower Hanger) Parts Diagram

Yard Tractor

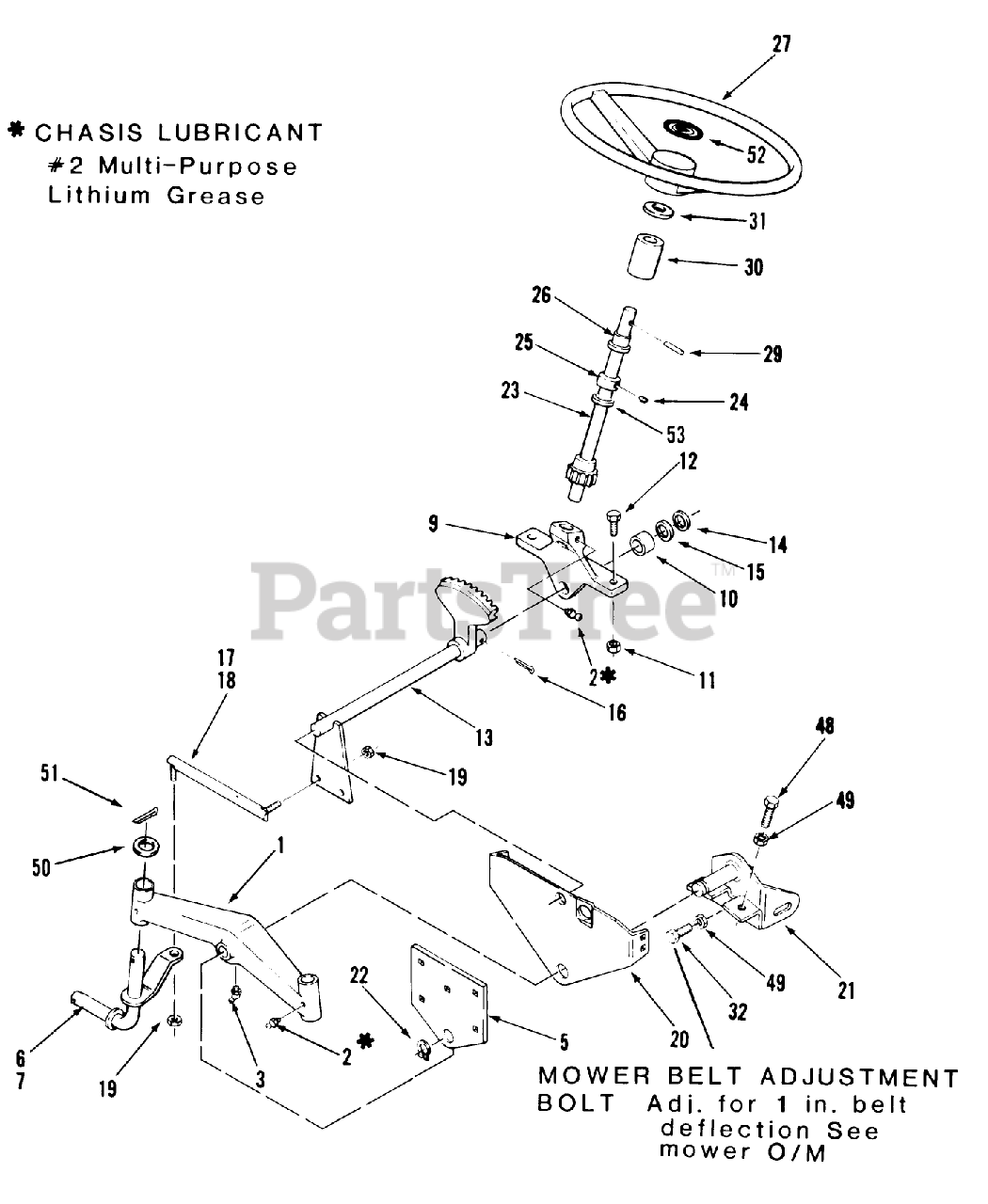

Front Axle And Steering (mower Hanger) Parts Diagram

  • Title

1

Toro 106199

DISCONTINUED

$

$

Not available

2

Toro 1030

DUP PART SEE $BOOK

$

$

Not available

3

Toro 1481

FITTING-GREASE

$6.99

$

In Stock, only 1 left!

0

5

Toro 108910

DISCONTINUED

$

$

Not available

6

Toro 111112

See Supercession: 115436
(Superseded to 115436)

$

$

Not available

7

Toro 111113

See Supercession: 115435
(Superseded to 115435)

$

$

Not available

9

Toro 109733

See Supercession: 88-2710-03
(Superseded to 88-2710-03)

$

$

Not available

10

Toro 6397

BEARING-BRONZE

$27.99

$

In Stock, only 3 left!

0

11

Toro 915113

See Supercession: 32153-2
(Superseded to 32153-2)

$

$

Not available

12

Toro 908034

See Supercession: 323-6
(Superseded to 323-6)

$2.99

$

In Stock, Qty 20+

0

13

Toro 111356

ASSY STEER SHAFT LOW

$571.99

$

Usually ships in 3-6 days

0

14

Toro 5210

WASHER-SHIM

$2.49

$

In Stock, Qty 20+

0

15

Toro 1278

WASHER

$2.49

$

In Stock, Qty 20+

0

16

Toro 932035

DISCONTINUED

$

$

Not available

17

Toro 1772

See Supercession: 1772-01
(Superseded to 1772-01)

$

$

Not available

18

Toro 1773

See Supercession: 1773-01
(Superseded to 1773-01)

$

$

Not available

19

Toro 915002

See Supercession: 9150026
(Superseded to 9150026)

$1.99

$

In Stock, Qty 20+

0

20

Toro 111361

DISCONTINUED

$

$

Not available

21

Toro 109252

See Supercession: 109252-01
(Superseded to 109252-01)

$

$

Not available

22

Toro 104822

See Supercession: 32120-93
(Superseded to 32120-93)

$2.99

$

In Stock, Qty 20+

0

23

Toro 104885

DISCONTINUED

$

$

Not available

Toro 106311

See Supercession: 106311-01
(Superseded to 106311-01)

$

$

Not available

24

Toro 909848

See Supercession: 3245-32
(Superseded to 3245-32)

$5.49

$

In Stock, only 2 left!

0

25

Toro 1085

See Supercession: 83-2770
(Superseded to 83-2770)

$

$

Not available

26

Toro 109189

BEARING-FLANGED

$3.49

$

In Stock, Qty 16

0

27

Toro 106055

DISCONTINUED

$

$

Not available

Toro 102715

DISCONTINUED

$

$

Not available

29

Toro 933221

See Supercession: 32121-111
(Superseded to 32121-111)

$3.49

$

In Stock, Qty 20+

0

30

Toro 109529

DISCONTINUED

$

$

Not available

Toro 109195

DISCONTINUED

$

$

Not available

31

Toro 109262

WASHER-FLAT

$4.49

$

In Stock, only 1 left!

0

32

Toro 911424

See Supercession: 67-1900
(Superseded to 67-1900)

$4.49

$

Usually ships in 3-6 days

0

48

Toro 908035

See Supercession: 323-7
(Superseded to 323-7)

$3.49

$

In Stock, Qty 20+

0

49

Toro 915236

See Supercession: 9152366
(Superseded to 9152366)

$3.99

$

In Stock, only 1 left!

0

50

Toro 1278

WASHER

$2.49

$

In Stock, Qty 20+

0

51

Toro 932026

COTTER PIN-4

$0.99

$

In Stock, Qty 11

0

52

Toro 102856

DISCONTINUED

$

$

Not available

53

Toro 111646

RING-RETAINING

$1.99

$

In Stock, only 4 left!

0
