22-12TE01 (YT 12-A) - Toro Yard Tractor (1986) Transaxle Parts Diagram

Yard Tractor

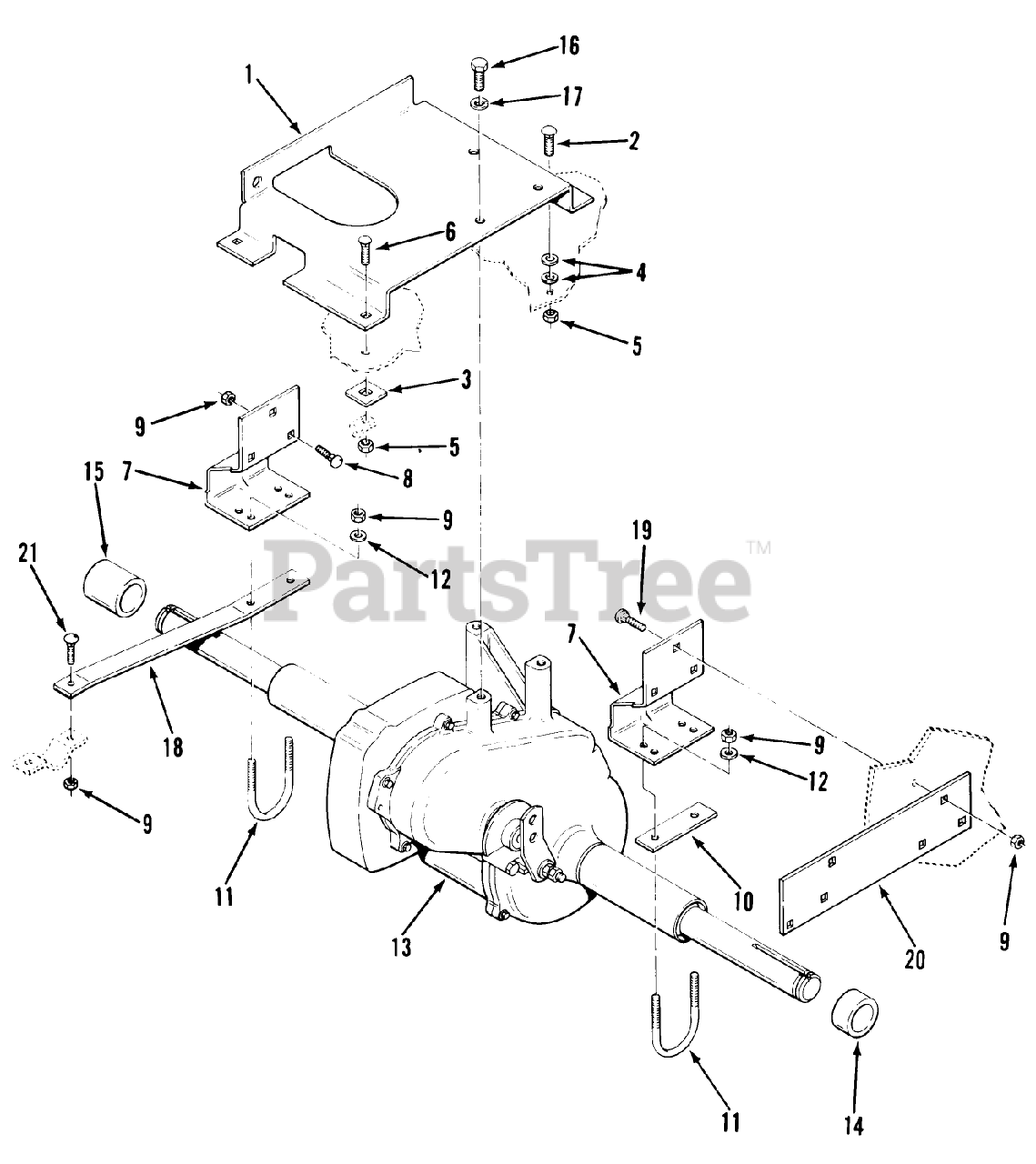

Transaxle Parts Diagram

  • Title

1

Toro 109402

DISCONTINUED

$

$

Not available

2

Toro 900038

See Supercession: 3230-2
(Superseded to 3230-2)

$1.49

$

In Stock, only 2 left!

0

3

Toro 106874

DISCONTINUED

$

$

Not available

4

Toro 920008

WASHER 5/16 SAE

$0.99

$

In Stock, Qty 8

0

5

Toro 915112

See Supercession: 3217-6
(Superseded to 3217-6)

$1.49

$

In Stock, Qty 5

0

6

Toro 900038

See Supercession: 3230-2
(Superseded to 3230-2)

$1.49

$

In Stock, only 2 left!

0

7

Toro 109388

DISCONTINUED

$

$

Not available

8

Toro 900037

See Supercession: 3230-1
(Superseded to 3230-1)

$1.99

$

In Stock, Qty 20+

0

9

Toro 915112

See Supercession: 3217-6
(Superseded to 3217-6)

$1.49

$

In Stock, Qty 5

0

10

Toro 107558

DISCONTINUED

$

$

Not available

11

Toro 109381

U-BOLT AXLE MTG

$9.99

$

In Stock, only 1 left!

0

12

Toro 920008

WASHER 5/16 SAE

$0.99

$

In Stock, Qty 8

0

13

Toro 109390

DISCONTINUED

Note: Order Replacement Parts or Complete Assembly Through Manufacturer-s Distribution System, Using Model/Spec. Number Shown.

$

$

Not available

14

Toro 109393

DISCONTINUED

$

$

Not available

15

Toro 109394

DISCONTINUED

$

$

Not available

16

Toro 908034

See Supercession: 323-6
(Superseded to 323-6)

$2.99

$

In Stock, Qty 20+

0

17

Toro 920083

See Supercession: 3253-21
(Superseded to 3253-21)

$0.99

$

In Stock, Qty 8

0

18

Toro 110187

DISCONTINUED

$

$

Not available

19

Toro 900037

See Supercession: 3230-1
(Superseded to 3230-1)

$1.99

$

In Stock, Qty 20+

0

20

Toro 110188

DISCONTINUED

$

$

Not available

21

Toro 900038

See Supercession: 3230-2
(Superseded to 3230-2)

$1.49

$

In Stock, only 2 left!

0
