22-13KE02 (252-H) - Toro Yard Tractor (1989) CARBURETOR Parts Diagram

Yard Tractor

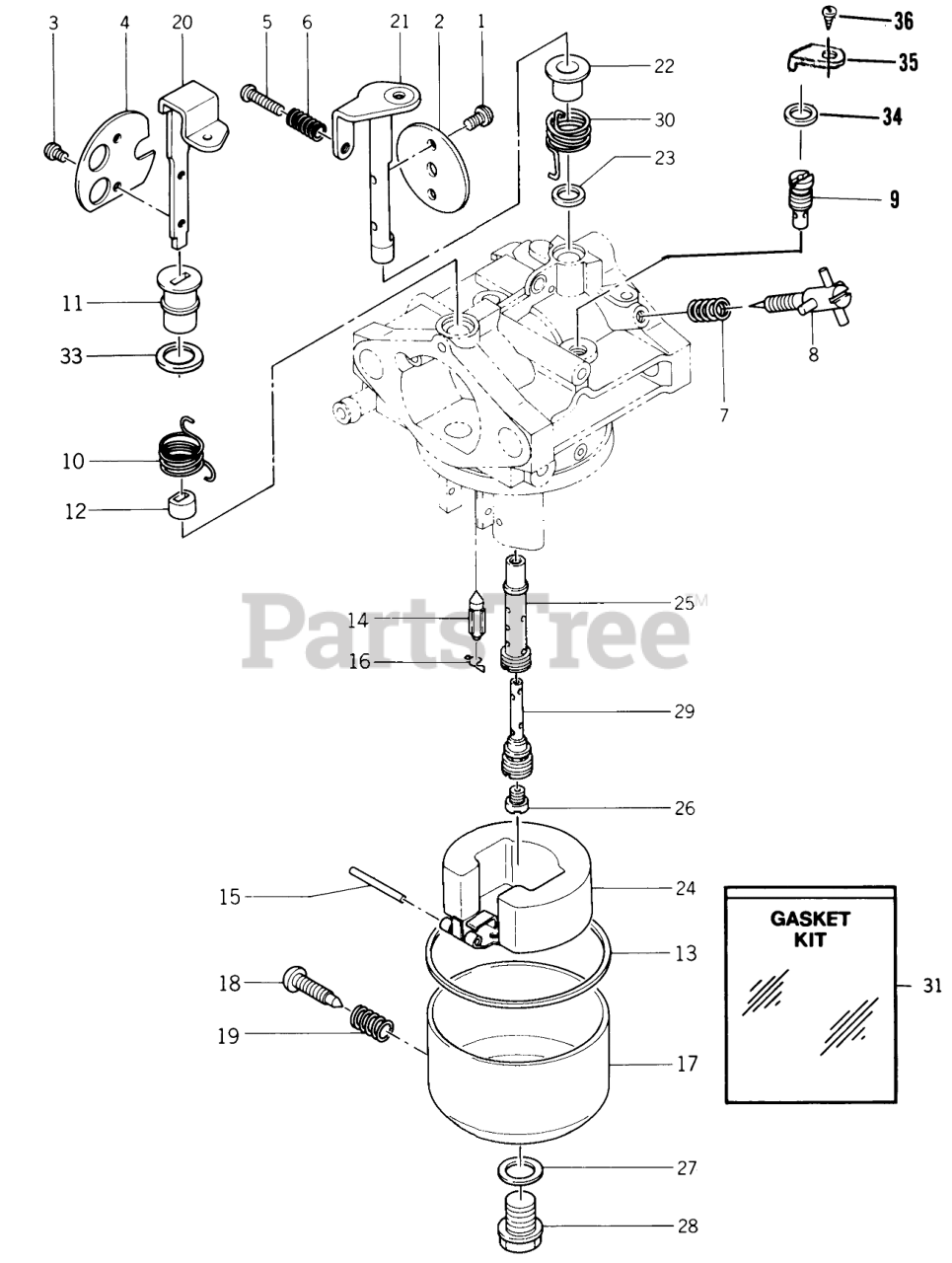

CARBURETOR Parts Diagram

  • Title

1

Toro KW10125

SCREW-THROTTLE PLATE

$

$

Not available

2

Toro KW10066

VALVE THROTTLE

$

$

Not available

3

Toro KW10118

SCREW

$

$

Not available

4

Toro KW10075

VALVE CHOKE

$

$

Not available

5

Toro KW10194

SCREW

$

$

Not available

6

Toro KW10108

SPRING IDLE

$

$

Not available

7

Toro KW10105

SPRING

$

$

Not available

8

Toro KW10064

Adjuster Screw

$

$

Not available

9

Toro KW10302

JET-PILOT

$

$

Not available

10

Toro KW10296

SPRING

$

$

Not available

11

Toro KW10715

RING

$

$

Not available

12

Toro KW10120

COLLAR

$

$

Not available

13

Toro KW10109

GASKET

$

$

Not available

14

Toro KW10067

NEEDLE VALVE ASSY

$

$

Not available

15

Toro KW10116

PIN-FLOAT

$

$

Not available

16

Toro KW10297

CLIP

$

$

Not available

17

Toro KW10298

16020-2094 Float Chamber Assy (includes items 18 & 19)

$

$

Not available

18

Toro KW10121

SCREW-DRAIN

$

$

Not available

19

Toro KW10106

SPRING

$

$

Not available

20

Toro KW10069

SHAFT-CHOKE

$

$

Not available

21

Toro KW10068

Shaft-Throttle

$

$

Not available

22

Toro KW10215

RING BUSHING

$

$

Not available

23

Toro KW10126

RING-O

$

$

Not available

24

Toro KW10299

FLOAT

$

$

Not available

25

Toro KW10161

NOZZLE-MAIN

$

$

Not available

26

Toro KW10231

JET MAIN

$

$

Not available

27

Toro KW10131

GASKET

$

$

Not available

28

Toro KW10115

BOLT

$

$

Not available

29

Toro KW10703

HOLDER-MAIN JET

$

$

Not available

30

Toro KW10235

Spring

$

$

Not available

31

Toro KW10245

Carburetor Gasket Set
(Superseded to KW10731)

$

$

Not available

33

Toro KW10282

SEAL

$

$

Not available

34

Toro KW10293

O-RING

$

$

Not available

35

Toro KW10294

PLATE

$

$

Not available

36

Toro KW10295

Screw
(Superseded to KW10620)

$

$

Not available
