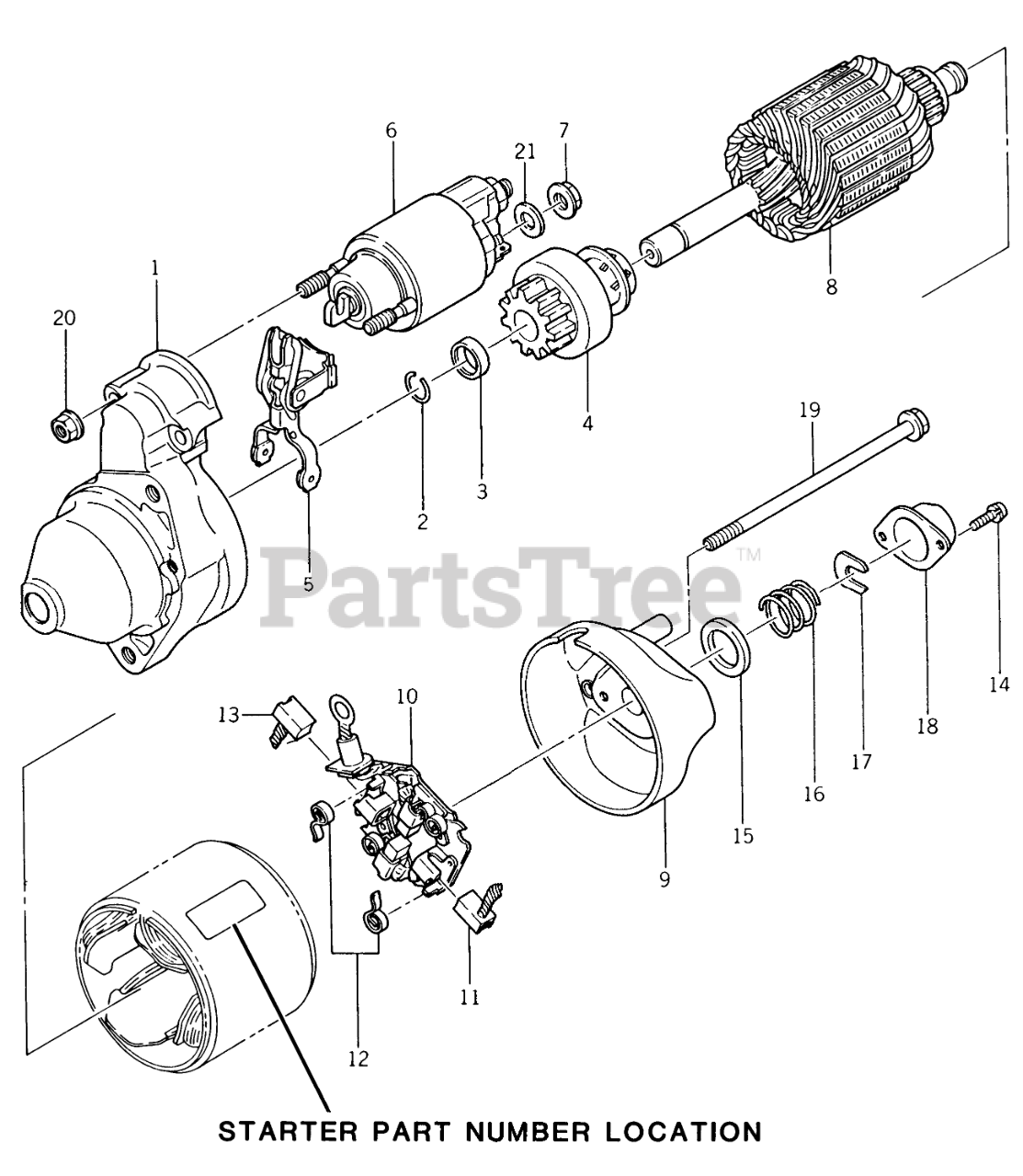

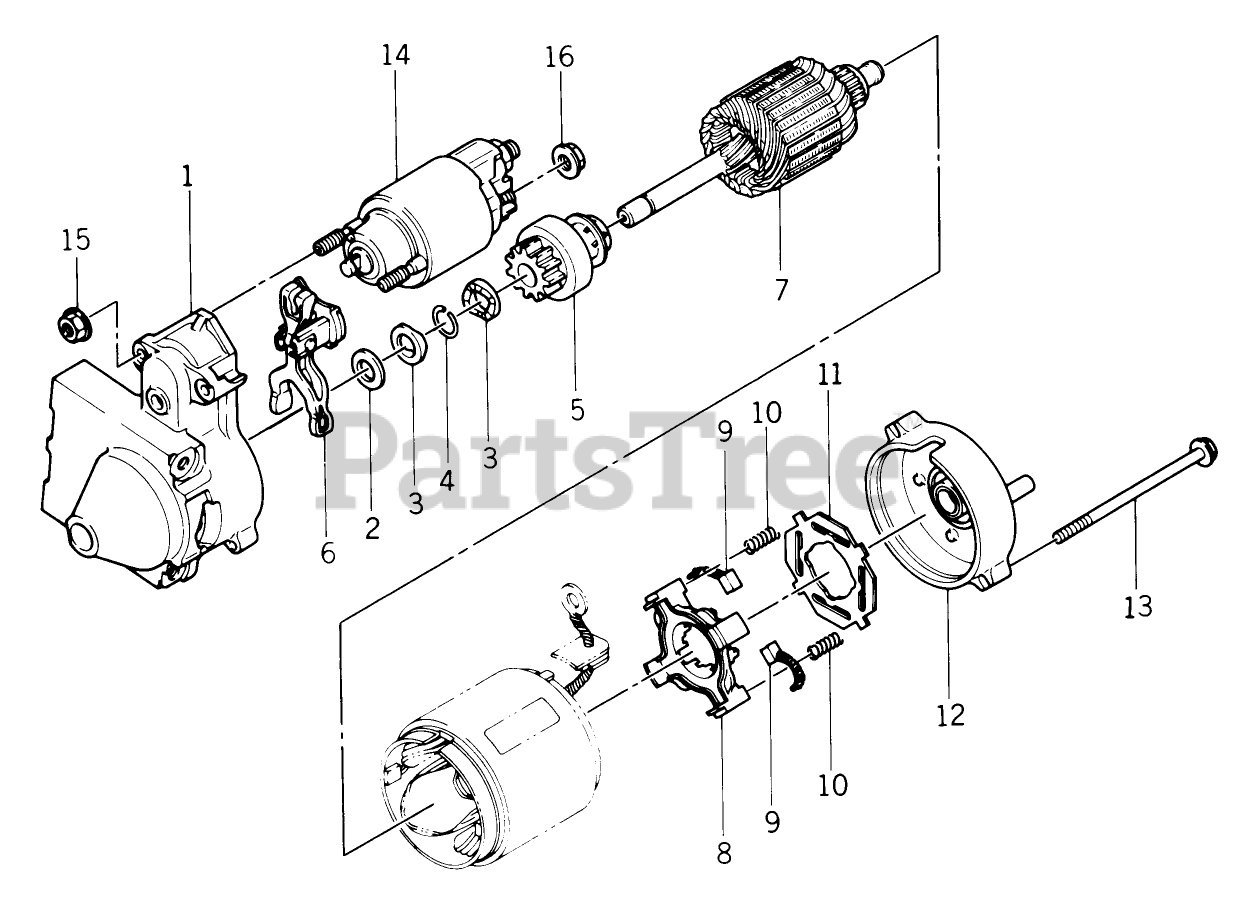

22-13KE02 (252-H) - Toro Yard Tractor (1989) ELECTRIC STARTER Parts Diagram

Yard Tractor

ELECTRIC STARTER Parts Diagram

  • Title

1

Toro KW10541

COVER ASS'Y

$

$

Not available

1

Toro KW10717

ASS'Y-STARTER COVER

$

$

Not available

2

Toro KW10662

RING-SNAP

$

$

Not available

3

Toro KW10572

STOPPER PINION

$

$

Not available

4

Toro KW10512

CLUTCH ASS'Y

$

$

Not available

4

Toro KW10718

ASS'Y-STARTER CLUTCH

$

$

Not available

5

Toro KW10521

LEVER SHIFT

$

$

Not available

5

Toro KW10719

ASS'Y-SHIFT LEVER

$

$

Not available

6

Toro KW10562

SWITCH ASS'Y

$

$

Not available

6

Toro KW10720

ASS'Y-STARTER SWITCH

$

$

Not available

7

Toro KW10198

NUT

$

$

Not available

8

Toro KW10549

ARMATURE

$

$

Not available

9

Toro KW10542

COVER ASS'Y

$

$

Not available

10

Toro KW10527

BRUSH HOLDER ASS'Y

$

$

Not available

11

Toro KW10546

BRUSH

$

$

Not available

12

Toro KW10547

Spring

$

$

Not available

13

Toro KW10546

BRUSH

$

$

Not available

14

Toro KW10618

SCREW

$

$

Not available

15

Toro KW10684

SEAL

$

$

Not available

16

Toro KW10682

SPRING

$

$

Not available

17

Toro KW10573

STOPPER

$

$

Not available

18

Toro KW10525

COVER

$

$

Not available

19

Toro KW10614

BOLT

$

$

Not available

20

Toro KW10197

NUT

$

$

Not available

21

Toro KW10143

Washer

$

$

Not available
