22-14O501 (244-5) - Toro Yard Tractor (SN: 010000001 - 019999999) (1991) DASH ASSEMBLY Parts Diagram

Yard Tractor

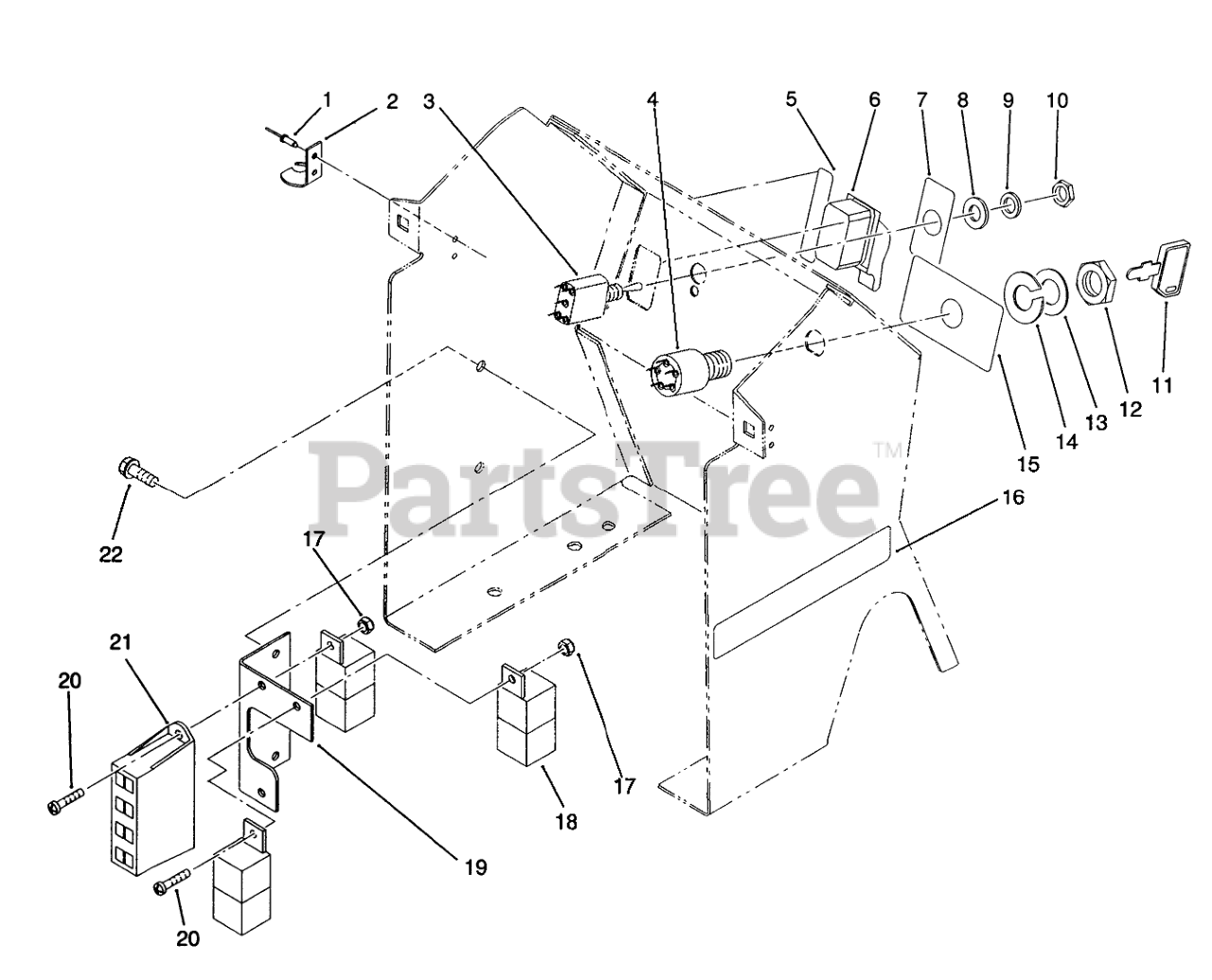

DASH ASSEMBLY Parts Diagram

  • Title
1

Toro Part# 117431

POPRIVET 1/8X 1/8 BK
Usually ships same day

Not available

$

$

2

Toro Part# 117343

KEEPER-LATCH
Usually ships in 1 day

$

$3.33

0

3

Toro Part# 102138

SWITCH-LIGHTS
Usually ships in 1 day

$

$28.13

0

4

Toro Part# 116338

Switch-Ignition, Assembly (Incl. Ref #4 & 11-14)
Usually ships in 1 day

$

$62.12

0

5

Toro Part# 78-8440

DECAL-PTO
Usually ships same day

Not available

$

$

6

Toro Part# 78-3030

PTO-SWITCH W/COVER
Usually ships in 5 to 8 days

$

$88.52

0

7

Toro Part# 78-8490

DECAL-LIGHTS
Usually ships same day

Not available

$

$

8

Toro Part# 102250

WIRE ASSY
Usually ships same day

Not available

$

$

Usually ships in 1 day

$

$0.57

0

Usually ships same day

Not available

$

$

11

Toro Part# 116738

Key
(Superseded to 62-7770)
Usually ships in 1 day

$

$3.68

0

Usually ships in 5 to 8 days

$

$6.32

0

13
Usually ships in 5 to 8 days

$

$6.74

0

14

Toro Part# 9201604

WASHER-LOCK
Usually ships in 1 day

$

$0.45

0

15

Toro Part# 78-8480

DECAL-IGNITION
Usually ships same day

Not available

$

$

16

Toro Part# 117512

DECAL-MODEL 5-SPEED
Usually ships same day

Not available

$

$

17

Toro Part# 9157404

Nut
(Superseded to 3296-2)
Usually ships in 1 day

$

$1.33

0

Usually ships in 1 day

$

$27.53

0

19

Toro Part# 78-2250A

Bracket-Holder, Fuse
Usually ships same day

Currently unavailable

$

$

20

Toro Part# 9107964

SCREW-PPH
Usually ships in 5 to 8 days

$

$1.00

0

21

Toro Part# 120930

FUSE-HOLDER 4 WAY
(Superseded to 67-7160)
Usually ships in 1 day

$

$18.26

0

22

Toro Part# 79-1590

TRS-1/4-20X1/2 BLACK
Usually ships same day

Not available

$

$
