22-14O501 (244-5) - Toro Yard Tractor (SN: 010000001 - 019999999) (1991) Dash Assembly Parts Diagram

Yard Tractor

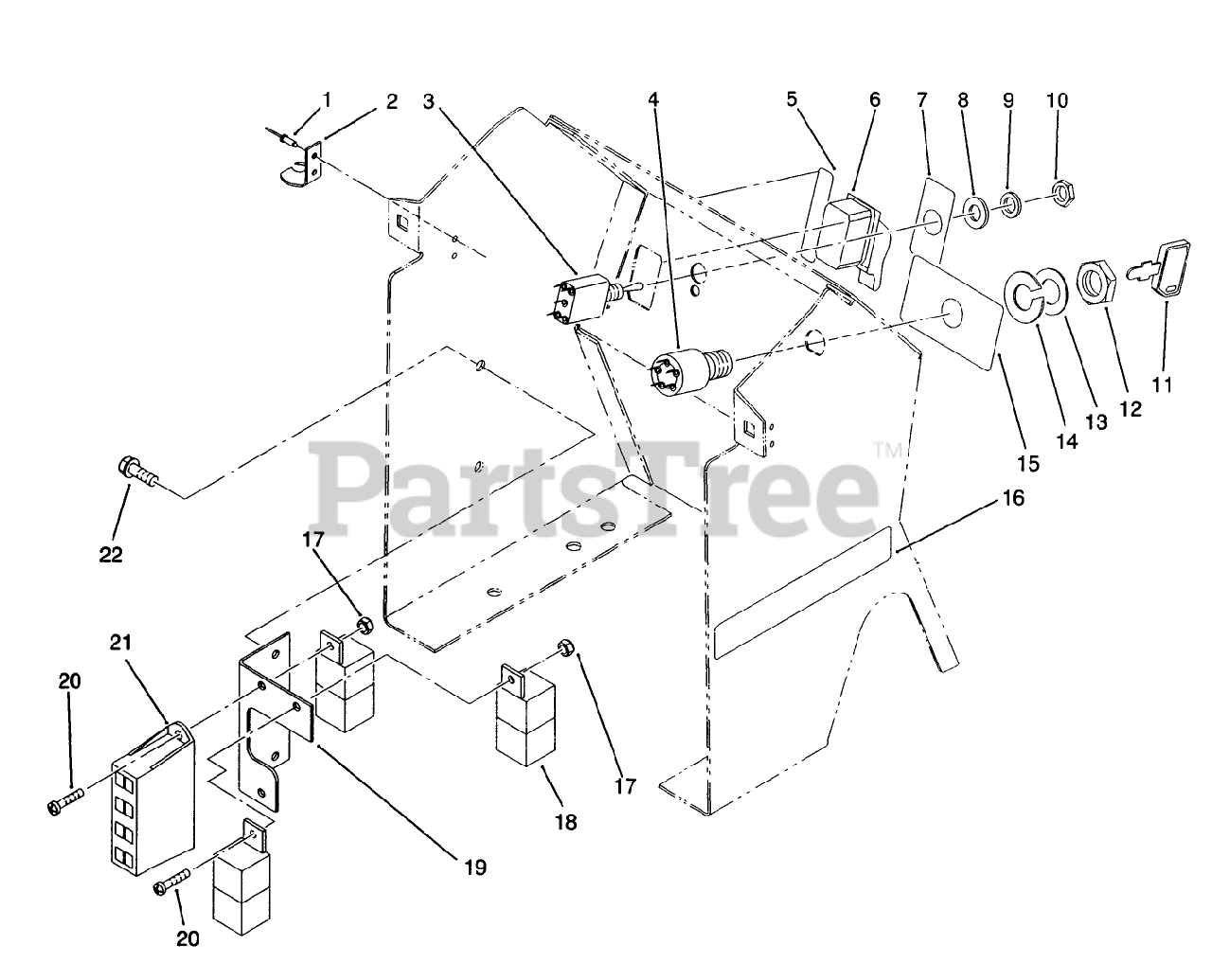

Dash Assembly Parts Diagram

  • Title

1

Toro 117431

DISCONTINUED

$

$

Not available

2

Toro 117343

KEEPER-LATCH

$5.49

$

In Stock, only 2 left!

0

3

Toro 102138

SWITCH-LIGHTS

$42.99

$

In Stock, only 1 left!

0

4

Toro 116338

KEY SWITCH ASM

$84.99

$

In Stock, only 2 left!

0

5

Toro 78-8440

DISCONTINUED

$

$

Not available

6

Toro 78-3030

PTO-SWITCH W/COVER

$135.99

$

In Stock, only 3 left!

0

7

Toro 78-8490

DECAL-LIGHTS

$

$

Not available

8

Toro 102250

DISCONTINUED

$

$

Not available

9

Toro 9202594

WASHER

$0.99

$

In Stock, only 4 left!

0

10

Toro 113179

*DISC**

$

$

Not available

11

Toro 116738

See Supercession: 62-7770
(Superseded to 62-7770)

$5.49

$

In Stock, Qty 14

0

12

Toro 101884

NUT

$7.99

$

In Stock, only 1 left!

0

13

Toro 9202624

WASHER

$9.49

$

Usually ships in 3-6 days

0

14

Toro 9201604

WASHER-LOCK

$0.99

$

In Stock, only 2 left!

0

15

Toro 78-8480

DISCONTINUED

$

$

Not available

16

Toro 117512

DISCONTINUED

$

$

Not available

17

Toro 9157404

See Supercession: 3296-2
(Superseded to 3296-2)

$2.49

$

In Stock, Qty 13

0

18

Toro 116397

RELAY

$42.99

$

In Stock, only 2 left!

0

19

Toro 78-2250A

Bracket-Holder, Fuse

$

$

Currently unavailable

20

Toro 9107964

SCREW-PPH

$1.49

$

Usually ships in 3-6 days

0

21

Toro 120930

See Supercession: 67-7160
(Superseded to 67-7160)

$21.99

$

In Stock, only 4 left!

0

22

Toro 79-1590

DISCONTINUED

$

$

Not available
