22-14O501 (244-5) - Toro Yard Tractor (SN: 010000001 - 019999999) (1991) Fender And Seat Assembly Parts Diagram

Yard Tractor

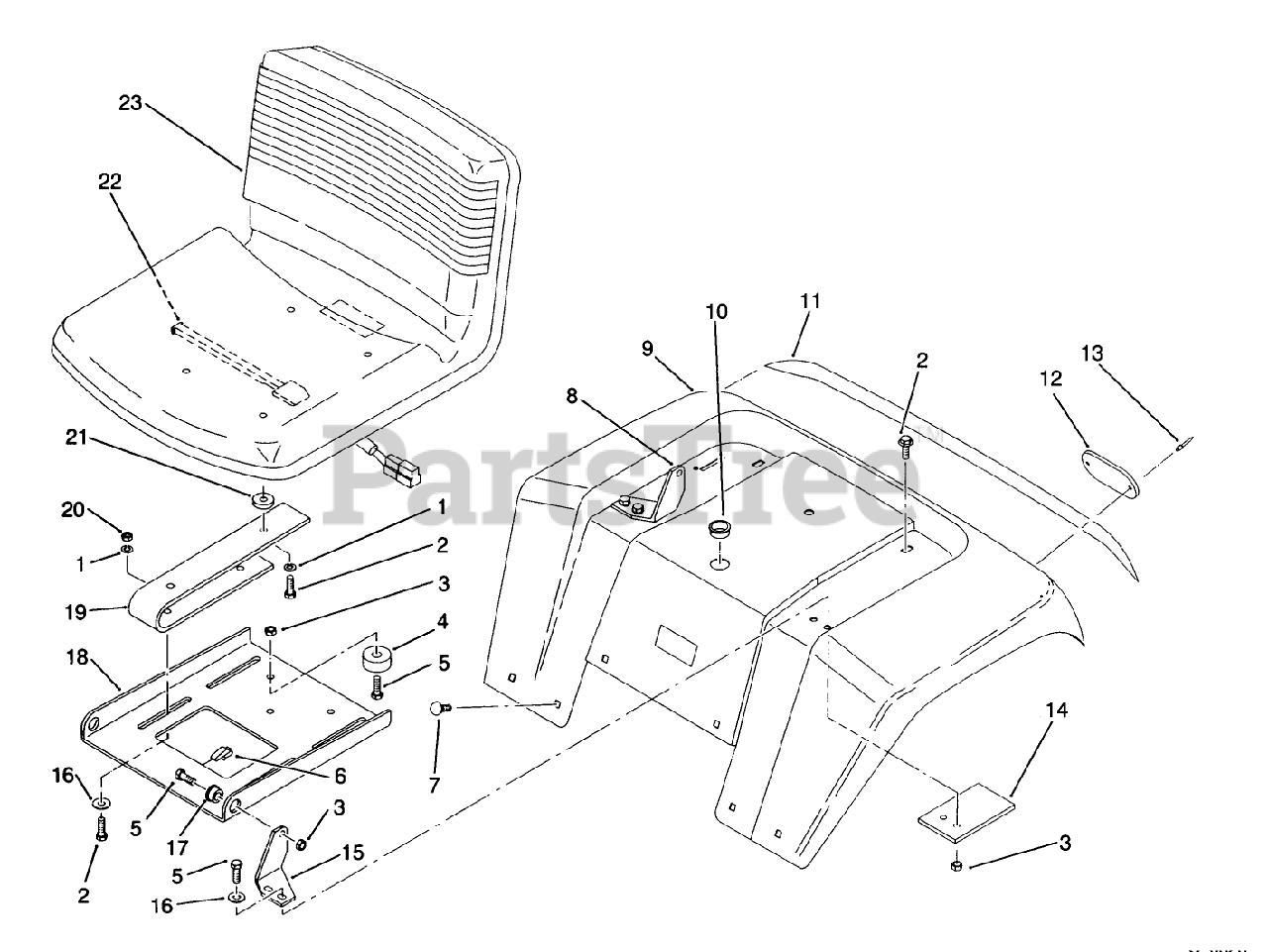

Fender And Seat Assembly Parts Diagram

  • Title

1

Toro 9200824

See Supercession: 3253-4
(Superseded to 325-34)

$3.99

$

In Stock, only 2 left!

0

2

Toro 9080184

See Supercession: 322-4
(Superseded to 322-4)

$0.99

$

In Stock, Qty 20+

0

3

Toro 9156624

See Supercession: 3296-29
(Superseded to 3296-29)

$2.49

$

In Stock, Qty 20+

0

4

Toro 108889

BUMPER

$27.99

$

Usually ships in 3-6 days

0

5

Toro 9080194

See Supercession: 322-5
(Superseded to 322-5)

$0.99

$

In Stock, Qty 20+

0

6

Toro 111392

J-CLIP

$2.99

$

Usually ships in 3-6 days

0

7

Toro 9002149

See Supercession: 3230-23
(Superseded to 3230-23)

$1.49

$

In Stock, Qty 20+

0

8

Toro 112744

BRACKET-PIVOT R.H *B (NS)

$

$

Not available

9

Toro 79-0050

FENDER *R

$879.99

$

Usually ships in 3-6 days

0

10

Toro 938031

BUSHING-NYLON 1.093

$

$

Not available

11

Toro 117760

DECAL-FENDER

$64.99

$

Usually ships in 3-6 days

0

12

Toro 108547

DISCONTINUED
(Superseded to 106557)

$

$

Not available

13

Toro 109193

See Supercession: 3290-282
(Superseded to 3290-282)

$0.99

$

In Stock, Qty 7

0

14

Toro 112961

DISCONTINUED

$

$

Not available

15

Toro 112745

BRACKET-PIVOT L.H *B

$

$

Not available

16

Toro 9200084

See Supercession: 3256-23
(Superseded to 3256-23)

$2.49

$

In Stock, Qty 9

0

17

Toro 105503

BUSHING

$1.49

$

In Stock, Qty 7

0

18

Toro 113852

DISCONTINUED

$

$

Not available

19

Toro 112837

DISCONTINUED

$

$

Not available

20

Toro 9151124

See Supercession: 3296-29
(Superseded to 3296-29)

$2.49

$

In Stock, Qty 20+

0

21

Toro 109989

SPACER-NYLON

$5.99

$

In Stock, only 2 left!

0

22

Toro 38-1420

SWITCH-SEAT

$

$

Not available

23

Toro 78-9160

DISCONTINUED

$

$

Not available
