22-14O501 (244-5) - Toro Yard Tractor (SN: 010000001 - 019999999) (1991) Main Frame Assembly Parts Diagram

Yard Tractor

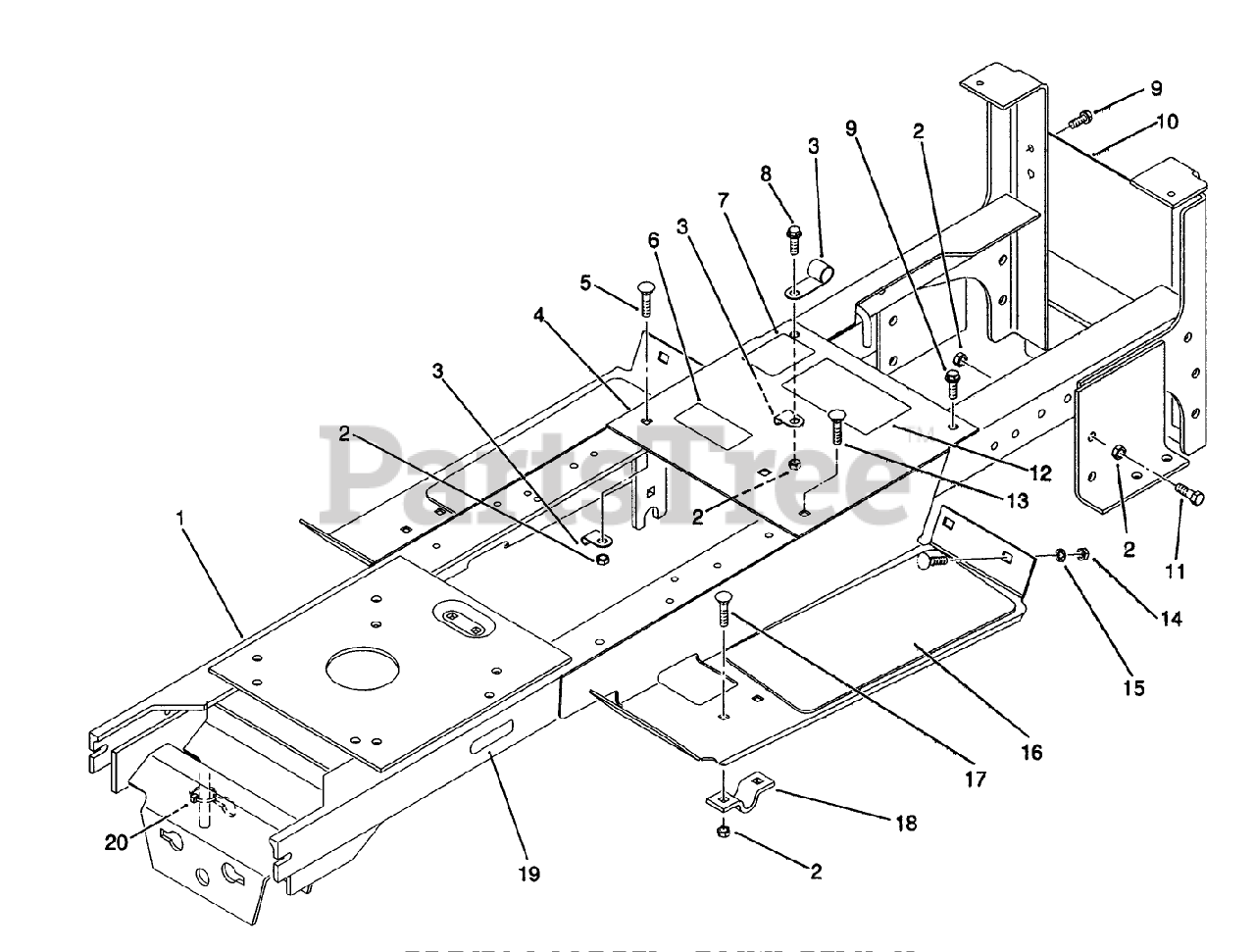

Main Frame Assembly Parts Diagram

  • Title

1

Toro 78-7292

DISCONTINUED

$

$

Not available

2

Toro 9156624

See Supercession: 3296-29
(Superseded to 3296-29)

$2.49

$

In Stock, Qty 20+

0

3

Toro 100729

THROTTLE CONTROL CLP

$7.99

$

Usually ships in 3-6 days

0

4

Toro 78-1130

DISCONTINUED
(Superseded to 92-6347)

$

$

Not available

5

Toro 9000389

See Supercession: 3230-2
(Superseded to 3230-2)

$1.49

$

In Stock, only 2 left!

0

6

Toro 78-8470

See Supercession: 79-0370
(Superseded to 79-0370)

$

$

Not available

7

Toro 79-0120

DISCONTINUED

$

$

Not available

8

Toro 9266974

See Supercession: 130-9795
(Superseded to 130-9795)

$1.49

$

Usually ships in 3-6 days

0

9

Toro 9266944

See Supercession: 926694
(Superseded to 92-6694)

$

$

Not available

10

Toro 79-0681

DISCONTINUED

$

$

Not available

11

Toro 9080214

See Supercession: 322-7
(Superseded to 322-7)

$1.49

$

In Stock, only 4 left!

0

12

Toro 112670

DECAL-DANGER

$

$

Not available

13

Toro 9002159

See Supercession: 3230-22
(Superseded to 3230-22)

$2.49

$

In Stock, only 3 left!

0

14

Toro 9151124

See Supercession: 3296-29
(Superseded to 3296-29)

$2.49

$

In Stock, Qty 20+

0

15

Toro 9201554

See Supercession: 3254-8
(Superseded to 3254-8)

$0.99

$

Usually ships in 3-6 days

0

16

Toro 110636

PAD FOOTREST

$

$

Not available

17

Toro 900379

Bolt-Carriage

$

$

Currently unavailable

18

Toro 106288

CLAMP

$

$

Not available

19

Toro 115197

DISCONTINUED
(Superseded to 94-6330)

$

$

Not available

20

Toro 100571

DISCONTINUED

$

$

Not available
