22-14O501 (244-5) - Toro Yard Tractor (SN: 010000001 - 019999999) (1991) Rear Wheel And Transmission Assembly Parts Diagram

Yard Tractor

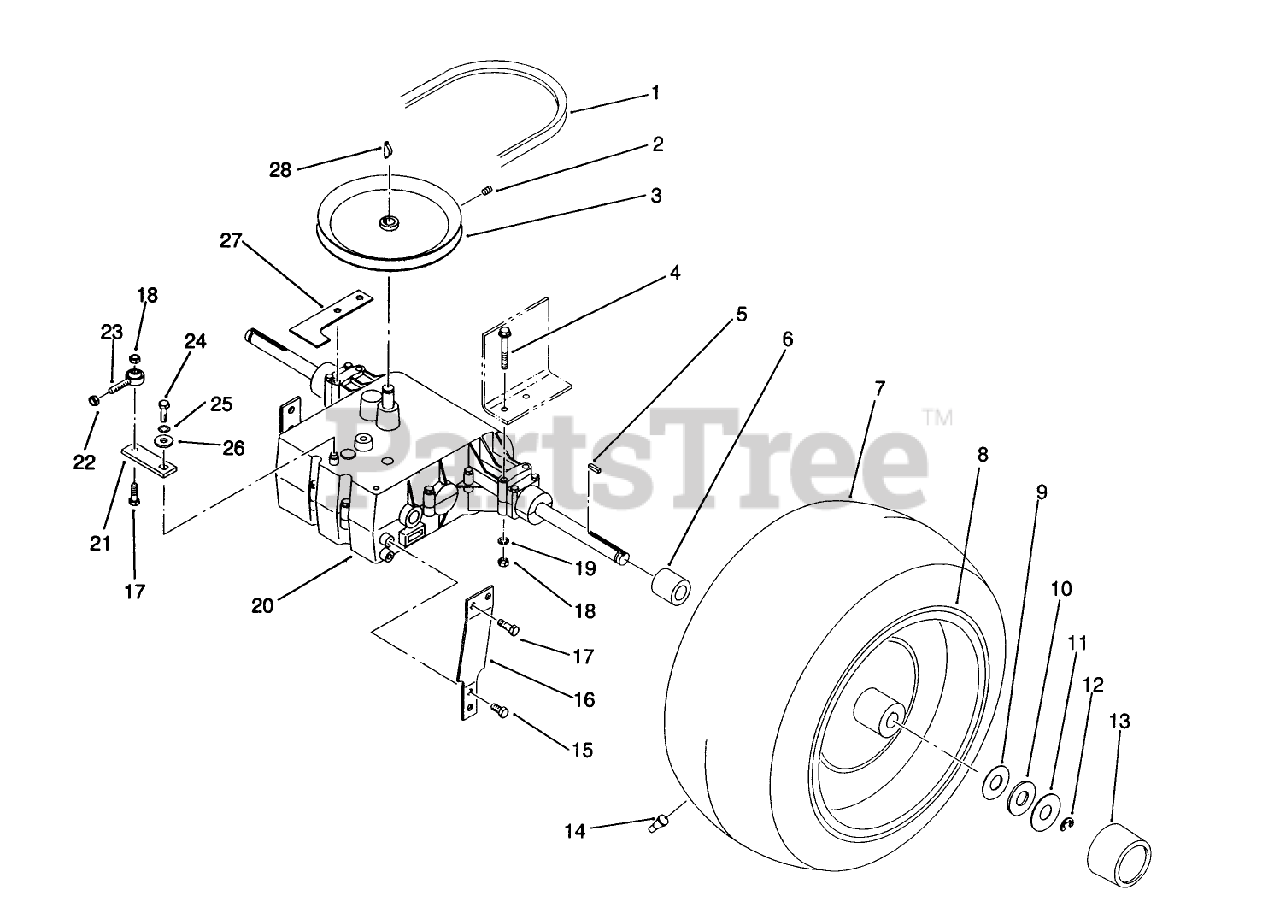

Rear Wheel And Transmission Assembly Parts Diagram

  • Title

1

Toro 111435

BELT-V

$

$

Not available

2

Toro 909543

SCREW-SQ HD SET

$

$

Not available

3

Toro 78-6650

PULLEY-TRANS *R

$174.99

$

Usually ships in 3-6 days

0

4

Toro 9080264

See Supercession: 322-13
(Superseded to 322-13)

$3.99

$

In Stock, Qty 11

0

5

Toro 1120

SQ KEY

$3.49

$

Usually ships in 3-6 days

0

6

Toro 110387

LH AXLE SPACER

$

$

Not available

7

Toro 78-1260

TIRE (20 X 10.00-10)

$

$

Not available

8

Toro 79-2060

WLDMT-WHEEL & HUB

$616.99

$

Usually ships in 3-6 days

0

9

Toro 1278

WASHER

$2.49

$

In Stock, Qty 20+

0

10

Toro 5210

WASHER-SHIM

$2.49

$

In Stock, Qty 20+

0

11

Toro 109114

WASHER-WHEEL

$4.49

$

In Stock, Qty 8

0

12

Toro 104636

See Supercession: 32151-48
(Superseded to 32151-48)

$1.99

$

In Stock, Qty 7

0

13

Toro 109154

DISCONTINUED

$

$

Not available

14

Toro 5108

VALVE

$7.99

$

In Stock, only 4 left!

0

15

Toro 9267204

See Supercession: 9264964
(Superseded to 9264964)

$1.99

$

Usually ships in 3-6 days

0

16

Toro 78-1800

DISCONTINUED

$

$

Not available

17

Toro 9080194

See Supercession: 322-5
(Superseded to 322-5)

$0.99

$

In Stock, Qty 20+

0

18

Toro 9156624

See Supercession: 3296-29
(Superseded to 3296-29)

$2.49

$

In Stock, Qty 20+

0

19

Toro 9200084

See Supercession: 3256-23
(Superseded to 3256-23)

$2.49

$

In Stock, Qty 9

0

20

Toro 78-6880

DISCONTINUED

$

$

Not available

21

Toro 78-7201

DISCONTINUED

$

$

Not available

22

Toro 9150844

See Supercession: 3220-2
(Superseded to 3220-2)

$1.49

$

In Stock, Qty 20+

0

23

Toro 115575

See Supercession: 2411-52
(Superseded to 2411-52)

$40.99

$

Usually ships in 3-6 days

0

24

Toro 9081536

See Supercession: 329-5
(Superseded to 329-5)

$

$

Not available

25

Toro 9200814

See Supercession: 3253-3
(Superseded to 325-33)

$14.99

$

In Stock, only 4 left!

0

26

Toro 104869

WASHER

$

$

Not available

27

Toro 78-7673

DISCONTINUED

$

$

Not available

28

Toro 937225

KEY-HI-PRO

$5.99

$

Usually ships in 3-6 days

0

Toro 78-1250

ASS'Y-WHEEL & TIRE

$1016.99

$

Usually ships in 3-6 days

0
