22-14O502 (244-5) - Toro Yard Tractor (SN: 020000001 - 029999999) (1992) IDLER AND PEDAL SHAFT ASSEMBLY Parts Diagram

Yard Tractor

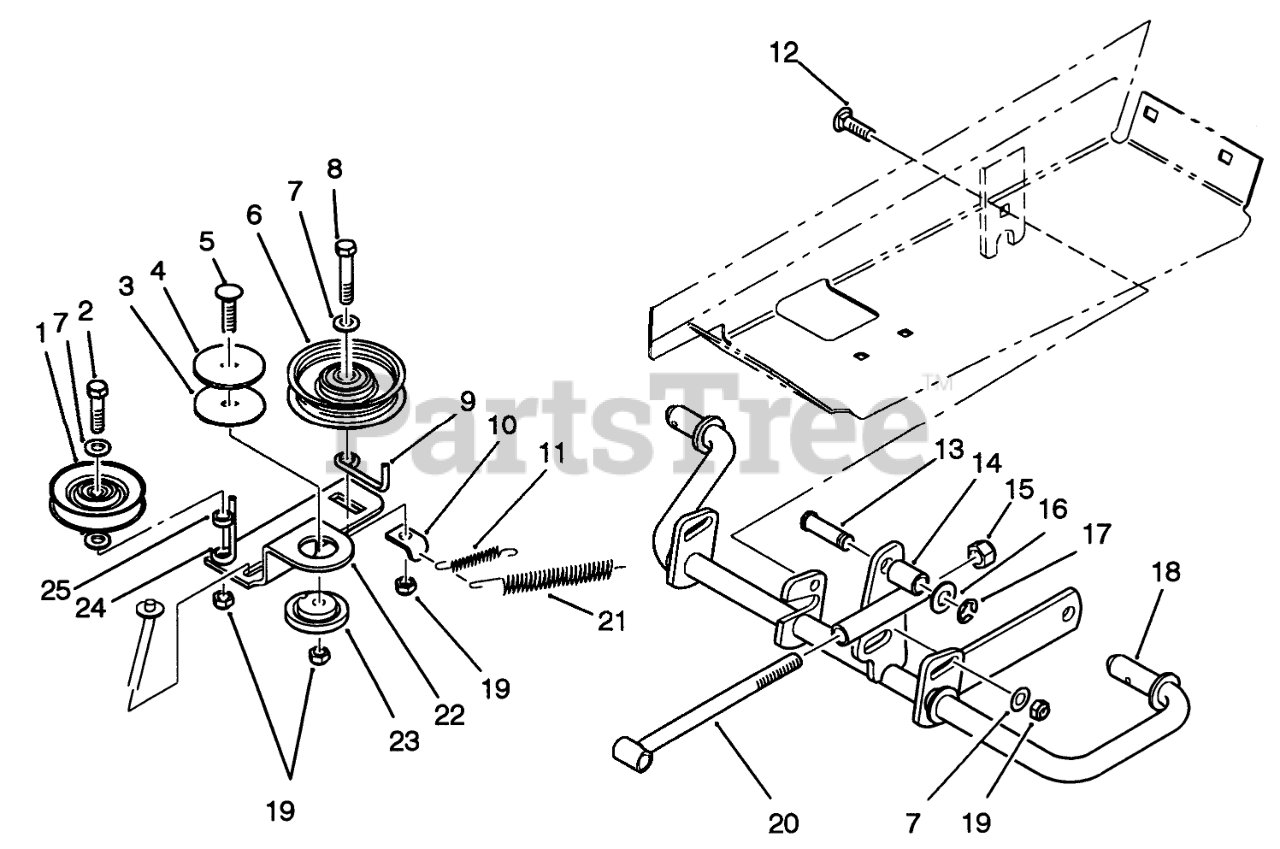

IDLER AND PEDAL SHAFT ASSEMBLY Parts Diagram

  • Title

1

Toro 1623

Pulley
(Superseded to 92-7102)

$62.99

$

In Stock, Qty 7

0

2

Toro 908036

BOLT
(Superseded to 323-8)

$1.49

$

In Stock, Qty 20+

0

3

Toro 111419

WASHER-BEARING

$44.99

$

In Stock, only 2 left!

0

4

Toro 78-7120

WASHER

$

$

Not available

5

Toro 3231-4

SCREW-CARR

$3.99

$

Usually ships in 3-6 days

0

6

Toro 112425

Idler Pulley
(Superseded to 92-7101)

$34.99

$

In Stock, Qty 5

0

7

Toro 3256-24

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

8

Toro 323-10

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

9

Toro 79-0390

GUIDE-BELT

$11.99

$

Usually ships in 3-6 days

0

10

Toro 2534

CLIP - SPRING

$4.99

$

In Stock, only 2 left!

0

11

Toro 107788

SPRING-EXTENSION

$14.99

$

Usually ships in 3-6 days

0

12

Toro 3231-28

SCREW-CARR

$4.49

$

In Stock, Qty 20+

0

13

Toro 79-1250

PIN

$17.99

$

Usually ships in 3-6 days

0

14

Toro 78-7390

TUBE

$

$

Not available

15

Toro 3296-23

NUT-LOCK, NI

$1.49

$

In Stock, Qty 20+

0

16

Toro 3256-26

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

17

Toro 32120-47

RING-RETAINING, EXTERNAL

$1.49

$

In Stock, Qty 15

0

18

Toro 79-3401

Shaft
(Superseded to 79-3401-03)

$310.99

$

Usually ships in 3-6 days

0

19

Toro 3296-39

NUT-LOCK, NI

$2.99

$

In Stock, Qty 20+

0

20

Toro 78-7360

ROD

$

$

Not available

21

Toro 111446

SPRING - CLUTCH

$

$

Not available

22

Toro 78-6771

ARM-IDLER

$

$

Not available

23

Toro 111418

BUSHING

$27.99

$

In Stock, only 1 left!

0

24

Toro 79-0400

GUIDE-BELT

$43.99

$

Usually ships in 3-6 days

0

25

Toro 104525

SPACER
(Superseded to 93-3658)

$6.49

$

Usually ships in 3-6 days

0
