22-14O502 (244-5) - Toro Yard Tractor (SN: 020000001 - 029999999) (1992) Lift Bar Linkage Assembly Parts Diagram

Yard Tractor

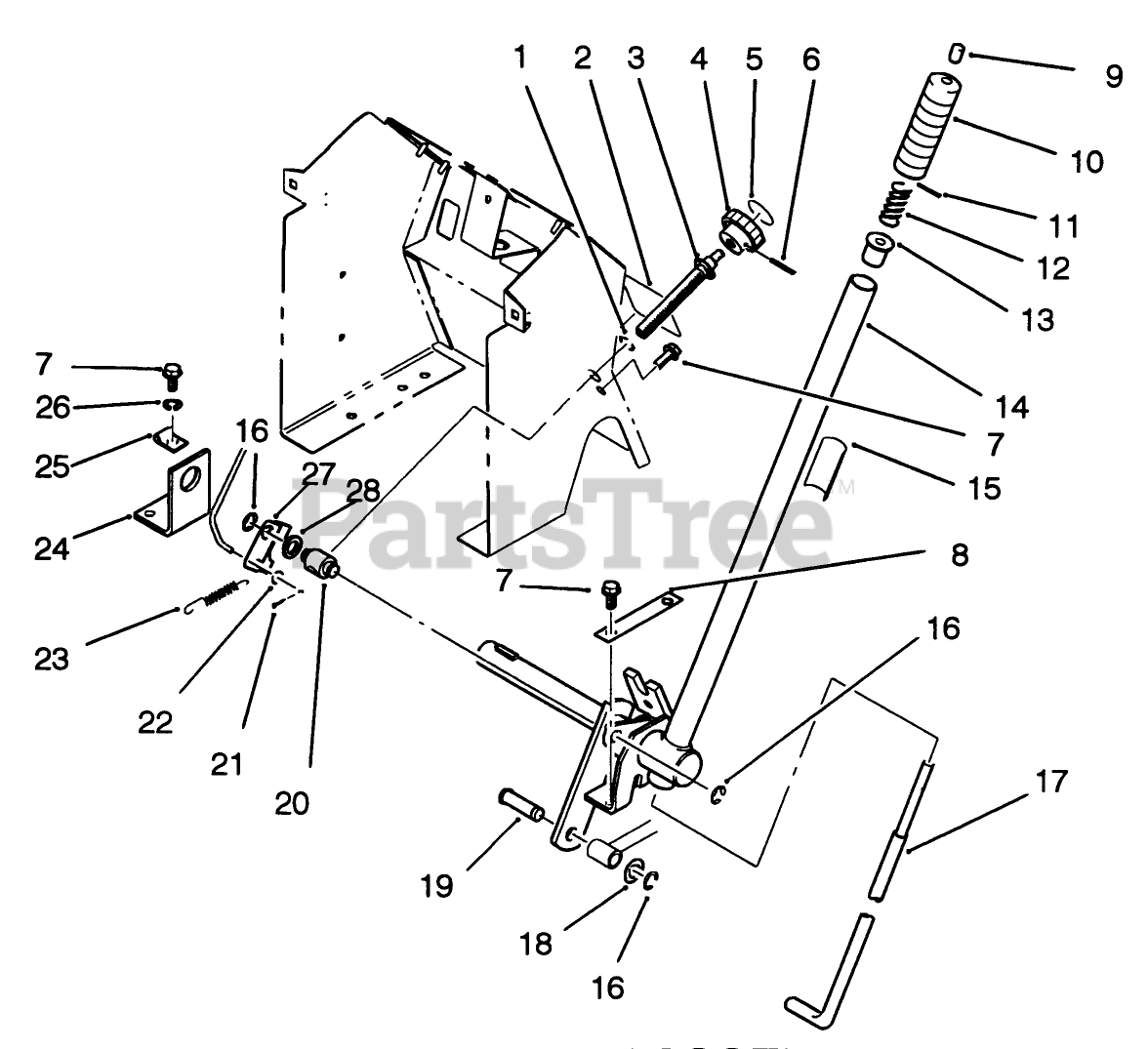

Lift Bar Linkage Assembly Parts Diagram

  • Title

1

Toro 920259

Washer
(Superseded to 9202594)

$0.99

$

In Stock, only 4 left!

0

2

Toro 79-6780

DISCONTINUED

$

$

Not available

3

Toro 78-2151

ROD *B

$

$

Not available

4

Toro 115593

KNOB

$12.99

$

Usually ships in 3-6 days

0

5

Toro 78-9740

DISCONTINUED

$

$

Not available

6

Toro 933141

PIN-SPIROL

$1.99

$

Usually ships in 3-6 days

0

7

Toro 926720

Screw
(Superseded to 9264964)

$1.99

$

Usually ships in 3-6 days

0

8

Toro 78-6810

See Supercession: 78-6810-03
(Superseded to 78-6810-03)

$

$

Not available

9

Toro 105316

CAP-ROD, PLUNGER

$1.99

$

In Stock, Qty 20+

0

10

Toro 6542

HANDGRIP

$

$

Not available

11

Toro 933148

PIN-SPIROL

$0.99

$

In Stock, only 2 left!

0

12

Toro 3624

SPRING-COMPRESSION

$5.49

$

Usually ships in 3-6 days

0

13

Toro 8130

RETAINER-SPRING

$

$

Not available

14

Toro 78-2090

DISCONTINUED
(Superseded to 78-2091)

$

$

Not available

15

Toro 112168

DECAL-LIFT

$

$

Not available

16

Toro 32120-47

RING-RETAINING, EXTERNAL

$1.49

$

In Stock, Qty 10

0

17

Toro 106257

ROD-LATCH LIFT

$122.99

$

Usually ships in 3-6 days

0

18

Toro 3256-26

WASHER-FLAT

$0.99

$

In Stock, Qty 19

0

19

Toro 78-1250

ASS'Y-WHEEL & TIRE

$1016.99

$

Usually ships in 3-6 days

0

20

Toro 78-2140

DISCONTINUED

$

$

Not available

11

Toro 932000

See Supercession: 3272-1
(Superseded to 3272-1)

$0.99

$

In Stock, Qty 9

0

21

Toro 3256-14

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

23

Toro 116792

SPRING-EXTENSION

$

$

Not available

24

Toro 78-1310

DISCONTINUED

$

$

Not available

25

Toro 100729

THROTTLE CONTROL CLP

$7.99

$

Usually ships in 3-6 days

0

26

Toro 920123

See Supercession: 3255-8
(Superseded to 3255-8)

$0.99

$

In Stock, only 3 left!

0

27

Toro 78-3180

DISCONTINUED

$

$

Not available

28

Toro 920263

See Supercession: 9202634
(Superseded to 9202634)

$5.99

$

Usually ships in 3-6 days

0
