22-14OE01 (244-H) - Toro Yard Tractor (SN: 010000001 - 019999999) (1991) BRAKE PEDAL ASSEMBLY Parts Diagram

Yard Tractor

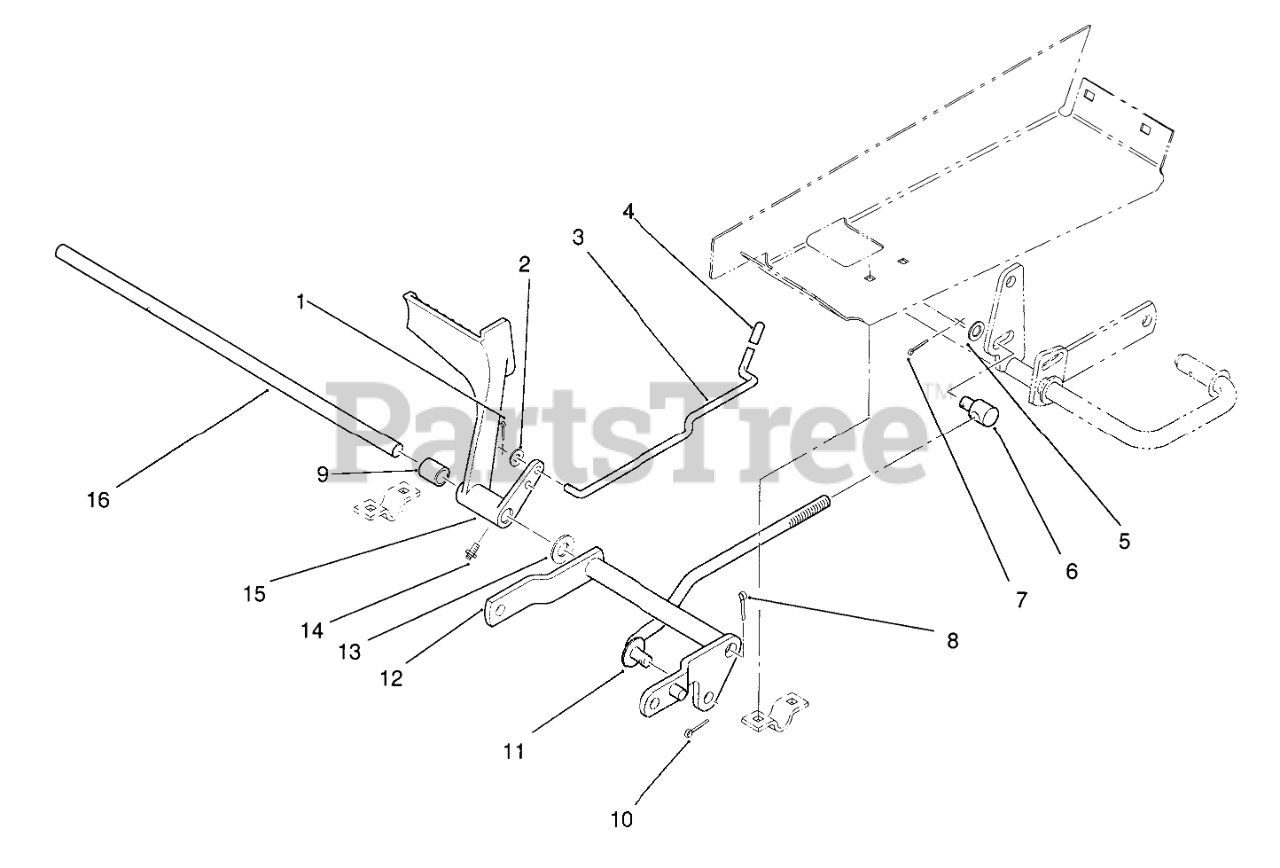

BRAKE PEDAL ASSEMBLY Parts Diagram

  • Title

1

Toro 932008

Cotter Pin
(Superseded to 3-2726)

$

$

Not available

2

Toro 920008

WASHER 5/16 SAE

$0.99

$

In Stock, Qty 10

0

3

Toro 78-6120

ROD-BRAKE LOCK

$

$

Not available

4

Toro 111439

GRIP

$

$

Not available

5

Toro 920011

Washer
(Superseded to 3256-26)

$0.99

$

In Stock, Qty 20+

0

6

Toro 8870

ROD-TRUNNION LIFT

$

$

Not available

7

Toro 932008

Cotter Pin
(Superseded to 3-2726)

$

$

Not available

8

Toro 932025

PIN

$

$

Not available

9

Toro 110015

SPACER

$

$

Not available

10

Toro 932034

Cotter Pin
(Superseded to 3272-21)

$3.49

$

In Stock, only 3 left!

0

11

Toro 78-2430

Rod-W.A.
(Superseded to 78-2431)

$100.99

$

Usually ships in 3-6 days

0

12

Toro 78-2111

Arm
(Superseded to 92-6855-03)

$163.99

$

Usually ships in 3-6 days

0

13

Toro 920215

Washer
(Superseded to 9202154)

$1.99

$

In Stock, Qty 5

0

14

Toro 83-2750

Fitting-Grease
(Superseded to 302-5)

$3.49

$

In Stock, Qty 20+

0

15

Toro 117234

Pedal-Brake
(Superseded to 93-3228)

$143.99

$

Usually ships in 3-6 days

0

16

Toro 78-6830

SHAFT R

$120.99

$

Usually ships in 3-6 days

0
