22-14OE01 (244-H) - Toro Yard Tractor (SN: 010000001 - 019999999) (1991) Hydraulic Reservoir Assembly Parts Diagram

Yard Tractor

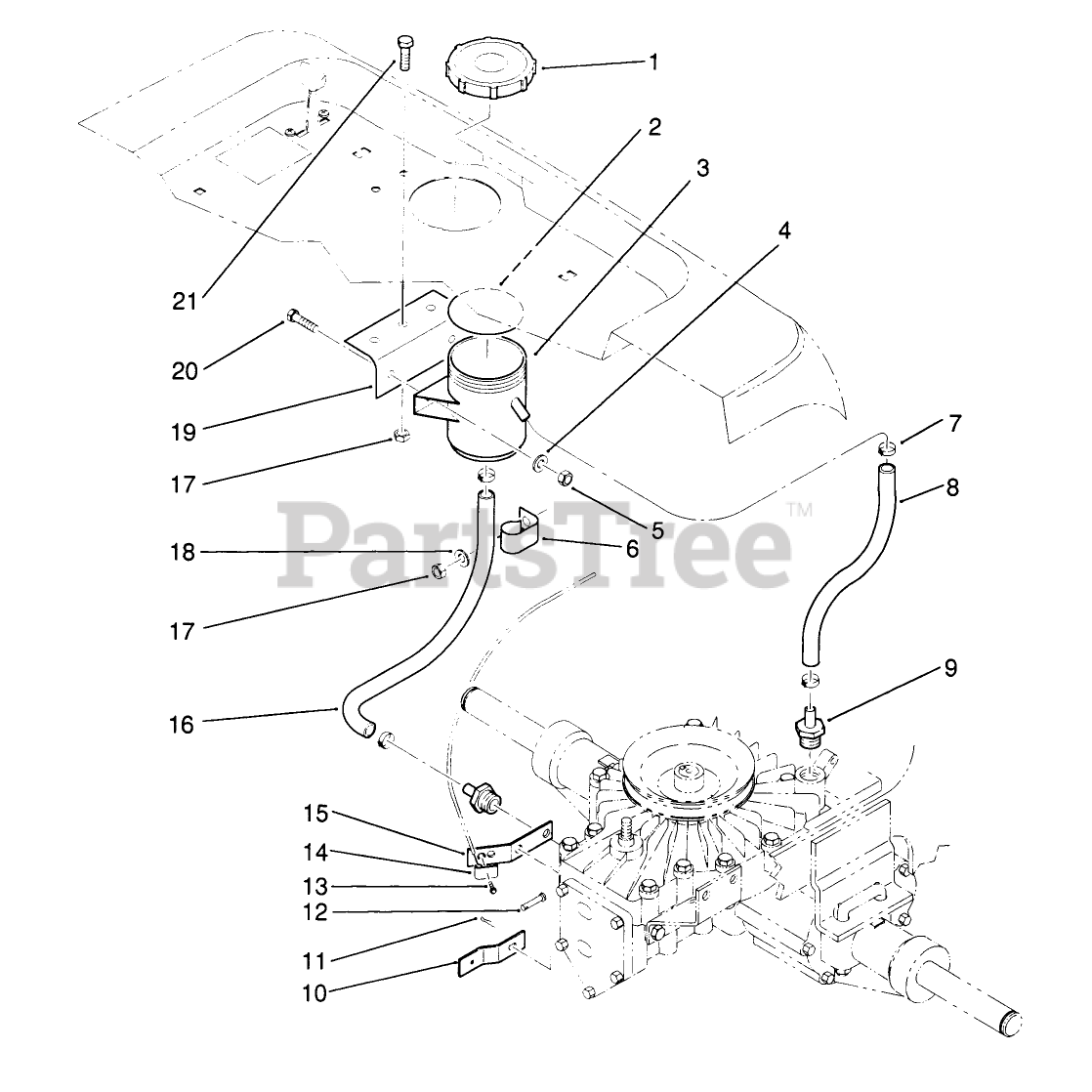

Hydraulic Reservoir Assembly Parts Diagram

  • Title

1

Toro 79-1080

DISCONTINUED

$

$

Not available

2

Toro 114563

COVER GASKET

$20.99

$

In Stock, only 1 left!

0

3

Toro 114564

DISCONTINUED

$

$

Not available

4

Toro 920007

See Supercession: 3256-22
(Superseded to 3256-22)

$0.99

$

In Stock, Qty 15

0

5

Toro 915661

See Supercession: 3296-42
(Superseded to 3296-42)

$0.99

$

In Stock, Qty 20+

0

6

Toro 8830

CLIP

$2.49

$

In Stock, only 1 left!

0

7

Toro 116180

DISCONTINUED

$

$

Not available

8

Toro 79-0110

DISCONTINUED

$

$

Not available

9

Barb-Hose

$

$

Not available

10

Toro 116398

DISCONTINUED

$

$

Not available

11

Toro 932000

See Supercession: 3272-1
(Superseded to 3272-1)

$0.99

$

In Stock, Qty 9

0

12

Toro 932948

PIN

$

$

Not available

13

Toro 926566

See Supercession: 9265664
(Superseded to 9265664)

$

$

Not available

14

Toro 111688

See Supercession: 2210-249
(Superseded to 2210-249)

$

$

Not available

15

Toro 79-0380

DISCONTINUED

$

$

Not available

16

Toro 114409

DISCONTINUED

$

$

Not available

17

Toro 915662

See Supercession: 3296-29
(Superseded to 3296-29)

$2.49

$

In Stock, Qty 20+

0

18

Toro 920008

WASHER 5/16 SAE

$0.99

$

In Stock, Qty 8

0

19

Toro 78-8810

DISCONTINUED

$

$

Not available

20

Toro 908005

See Supercession: 321-6
(Superseded to 321-6)

$0.99

$

In Stock, Qty 20+

0

21

Toro 908019

See Supercession: 322-5
(Superseded to 322-5)

$0.99

$

In Stock, Qty 20+

0

22

Toro 932948

PIN

$

$

Not available

23

Toro 932000

See Supercession: 3272-1
(Superseded to 3272-1)

$0.99

$

In Stock, Qty 9

0

Toro 79-1100

ASS'Y-RESERVOIR

$

$

Not available
