22-14OE01 (244-H) - Toro Yard Tractor (SN: 010000001 - 019999999) (1991) HYDRAULIC RESERVOIR ASSEMBLY Parts Diagram

Yard Tractor

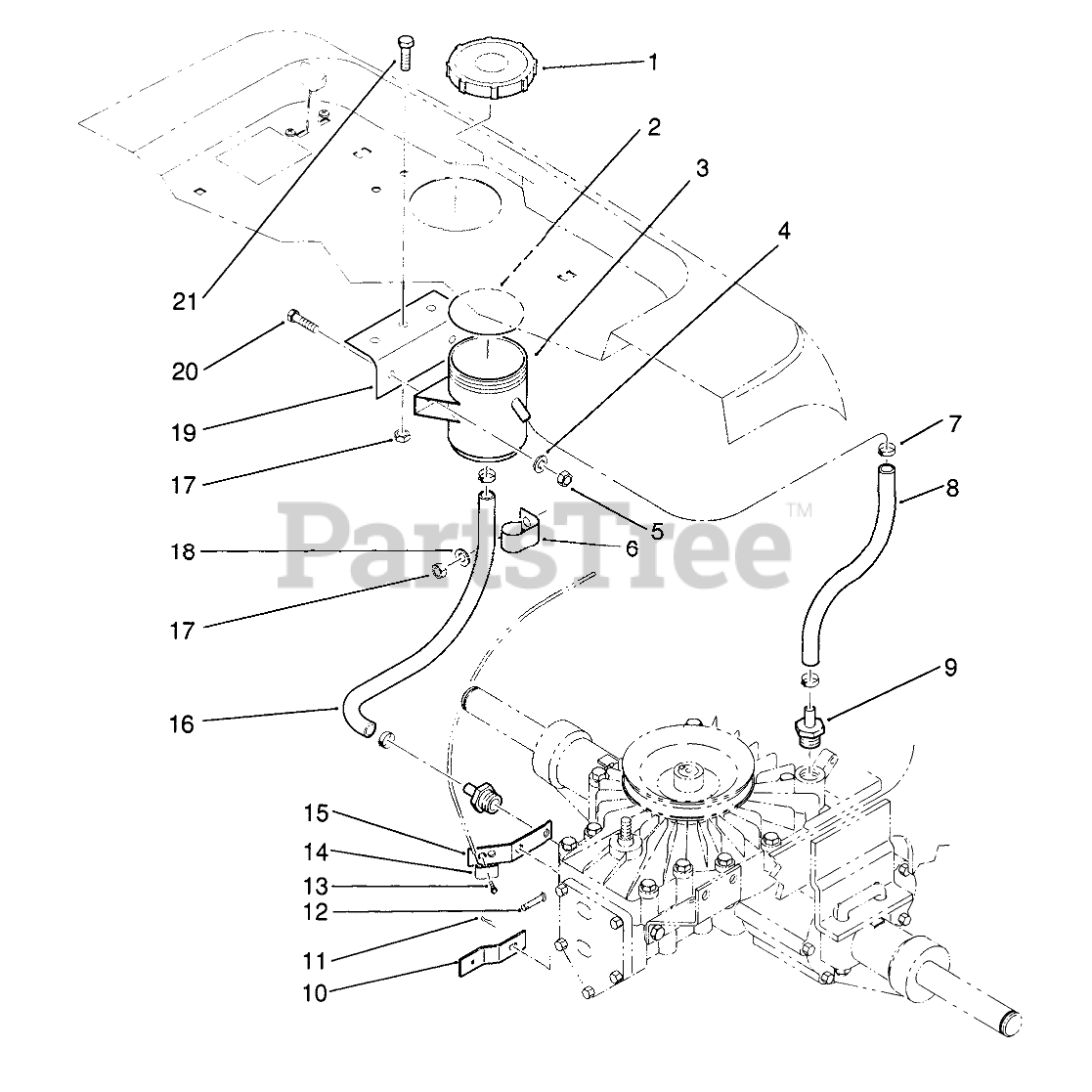

HYDRAULIC RESERVOIR ASSEMBLY Parts Diagram

  • Title

1

Toro 79-1080

COVER

$

$

Not available

2

Toro 114563

COVER GASKET

$20.99

$

In Stock, only 1 left!

0

3

Toro 114564

RESERVOIR

$

$

Not available

4

Toro 920007

USE 920007P WASHER
(Superseded to 3256-22)

$0.99

$

In Stock, Qty 20+

0

5

Toro 915661

Nut
(Superseded to 3296-42)

$0.99

$

In Stock, Qty 20+

0

6

Toro 8830

CLIP

$2.49

$

In Stock, Qty 8

0

7

Toro 116180

CLAMP

$

$

Not available

8

Toro 79-0110

HOSE-RESERVOIR

$

$

Not available

9

Barb-Hose

$

$

Not available

10

Toro 116398

Plate

$

$

Not available

11

Toro 932000

Cotter Pin
(Superseded to 3272-1)

$0.99

$

In Stock, Qty 10

0

12

Toro 932948

PIN

$

$

Not available

13

Toro 926566

Screw
(Superseded to 9265664)

$

$

Not available

14

Toro 111688

CLAMP THROTTLE
(Superseded to 2210-249)

$3.49

$

Usually ships in 3-6 days

0

15

Toro 79-0380

PLATE-MTG

$

$

Not available

16

Toro 114409

S/A 9" OF 114702

$

$

Not available

17

Toro 915662

Nut
(Superseded to 3296-29)

$2.49

$

In Stock, Qty 20+

0

18

Toro 920008

WASHER 5/16 SAE

$0.99

$

In Stock, Qty 10

0

19

Toro 78-8810

BRACKET R

$

$

Not available

20

Toro 908005

Bolt
(Superseded to 321-6)

$0.99

$

In Stock, Qty 20+

0

21

Toro 908019

Bolt
(Superseded to 322-5)

$0.99

$

In Stock, Qty 20+

0

Toro 79-1100

Assembly-Reservoir (Incl. Ref. # 1-3)

$

$

Not available

22

Toro 932948

PIN

$

$

Not available

23

Toro 932000

Cotter Pin
(Superseded to 3272-1)

$0.99

$

In Stock, Qty 10

0
