22-14OE01 (244-H) - Toro Yard Tractor (SN: 010000001 - 019999999) (1991) Lift Bar Linkage Assembly Parts Diagram

Yard Tractor

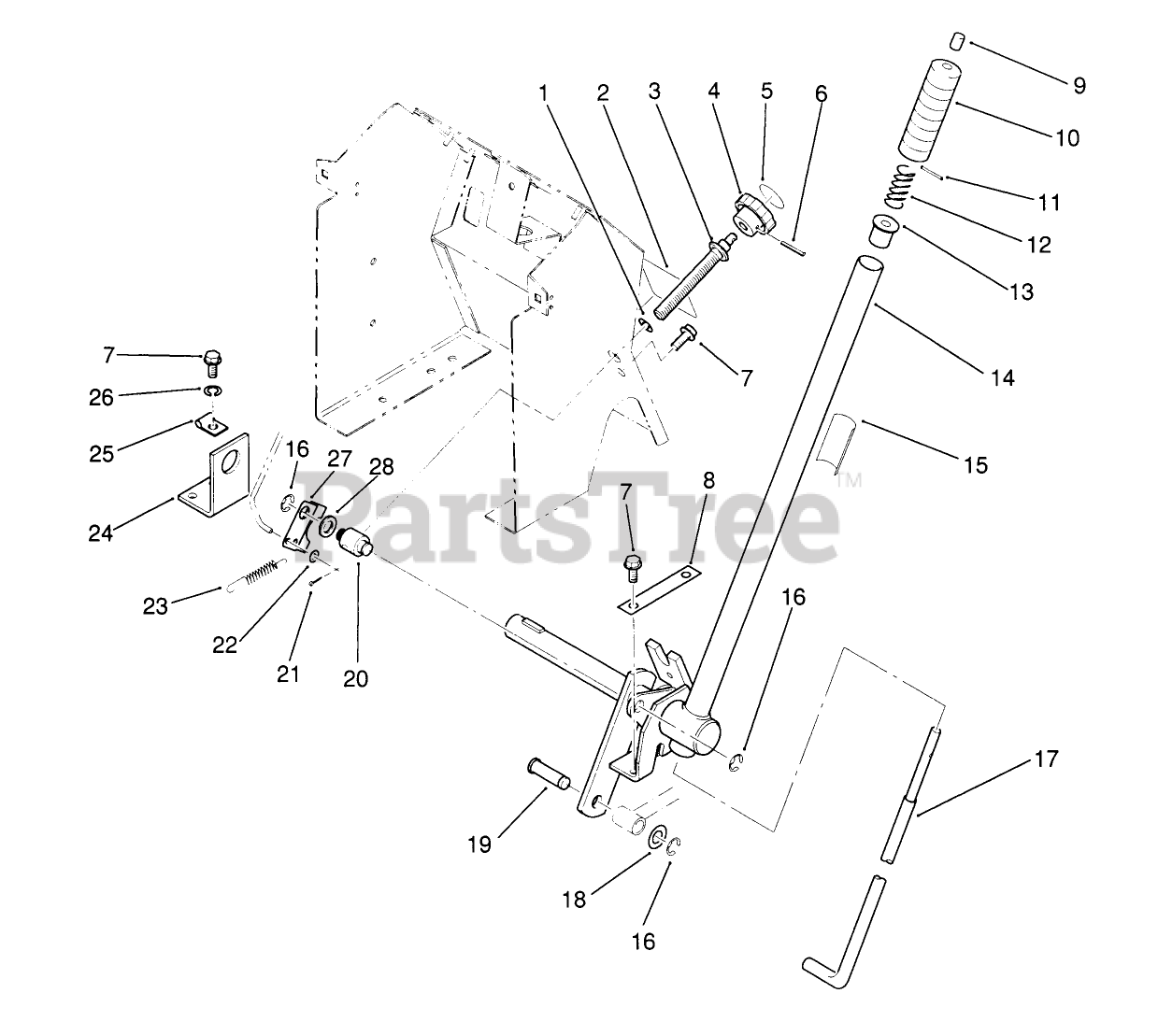

Lift Bar Linkage Assembly Parts Diagram

  • Title

1

Toro 9202594

WASHER

$0.99

$

In Stock, only 4 left!

0

2

Toro 78-8521

DISCONTINUED

$

$

Not available

3

Toro 78-2151

ROD *B

$

$

Not available

4

Toro 115593

KNOB

$12.99

$

Usually ships in 3-6 days

0

5

Toro 78-9740

DISCONTINUED

$

$

Not available

6

Toro 933141

PIN-SPIROL

$1.99

$

Usually ships in 3-6 days

0

7

Toro 9267204

See Supercession: 9264964
(Superseded to 9264964)

$1.99

$

Usually ships in 3-6 days

0

8

Toro 78-6810

See Supercession: 78-6810-03
(Superseded to 78-6810-03)

$

$

Not available

9

Toro 105316

CAP-ROD, PLUNGER

$1.99

$

In Stock, Qty 20+

0

10

Toro 6542

HANDGRIP

$

$

Not available

11

Toro 933148

PIN-SPIROL

$0.99

$

In Stock, only 2 left!

0

12

Toro 3624

SPRING-COMPRESSION

$5.49

$

Usually ships in 3-6 days

0

13

Toro 8130

RETAINER-SPRING

$

$

Not available

14

Toro 78-2090

DISCONTINUED
(Superseded to 78-2091)

$

$

Not available

15

Toro 112168

DECAL-LIFT

$

$

Not available

16

Toro 5701

See Supercession: 32120-47
(Superseded to 32120-47)

$1.49

$

In Stock, Qty 10

0

17

Toro 106257

ROD-LATCH LIFT

$122.99

$

Usually ships in 3-6 days

0

18

Toro 920011

See Supercession: 3256-26
(Superseded to 3256-26)

$0.99

$

In Stock, Qty 19

0

19

Toro 79-1250

PIN

$21.99

$

Usually ships in 3-6 days

0

20

Toro 78-2140

DISCONTINUED

$

$

Not available

21

Toro 93200

Pin-Cotter

$

$

Currently unavailable

22

Toro 9200054

See Supercession: 3256-14
(Superseded to 3256-14)

$0.99

$

In Stock, Qty 20+

0

23

Toro 116792

SPRING-EXTENSION

$

$

Not available

24

Toro 78-1310

DISCONTINUED

$

$

Not available

25

Toro 100729

THROTTLE CONTROL CLP

$7.99

$

Usually ships in 3-6 days

0

26

Toro 920123

See Supercession: 3255-8
(Superseded to 3255-8)

$0.99

$

In Stock, only 3 left!

0

27

Toro 78-3180

DISCONTINUED

$

$

Not available

28

Toro 920263

See Supercession: 9202634
(Superseded to 9202634)

$5.99

$

Usually ships in 3-6 days

0
