22-14OE01 (244-H) - Toro Yard Tractor (SN: 010000001 - 019999999) (1991) REAR WHEEL AND TRANSMISSION ASSEMBLY Parts Diagram

Yard Tractor

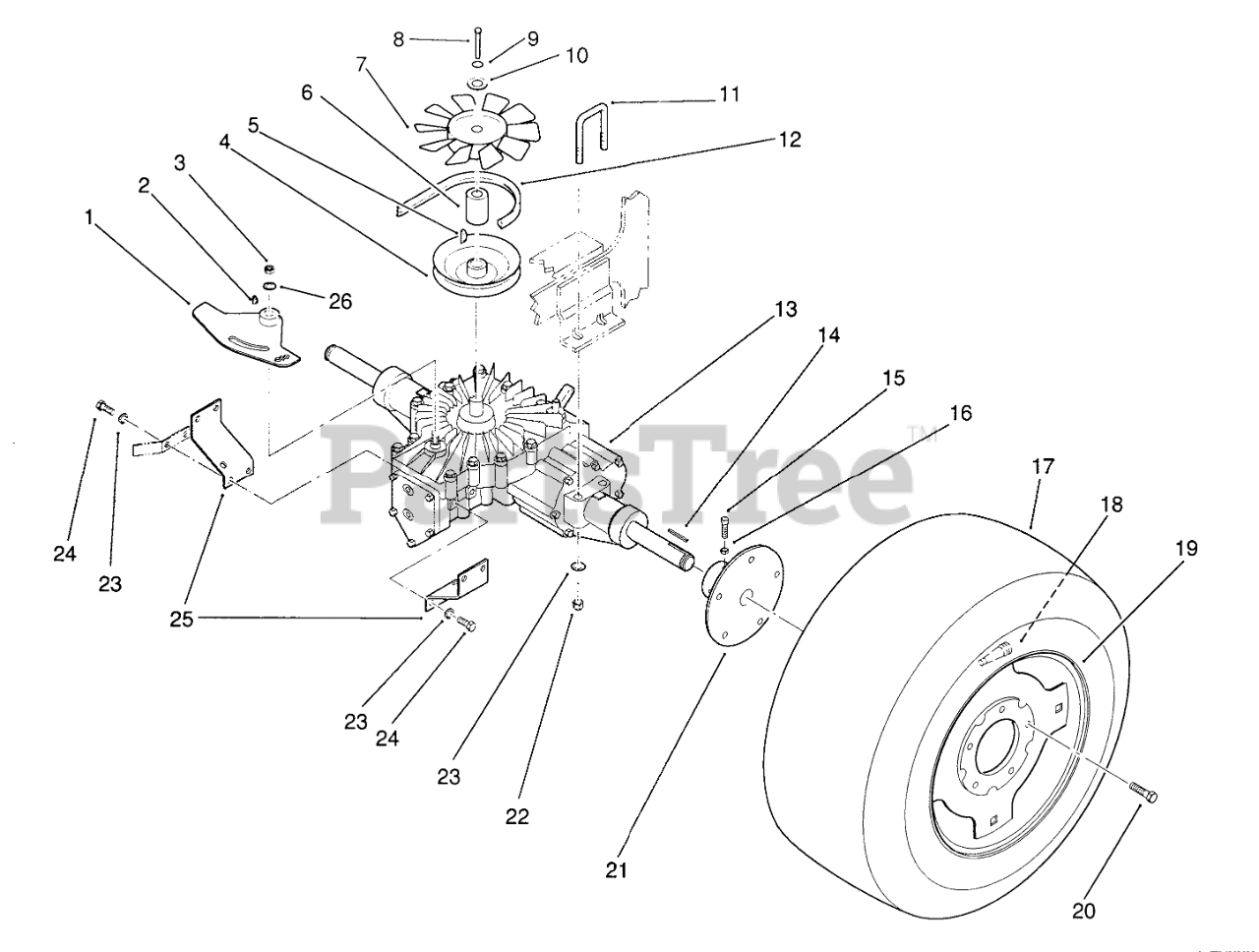

REAR WHEEL AND TRANSMISSION ASSEMBLY Parts Diagram

  • Title

1

Toro 115537

WLDMT-CONTROL ARM

$

$

Not available

2

Toro 937082

KEY WOODR 1/8X1/2 DI

$

$

Not available

3

Toro 101888

Nut
(Superseded to 103395)

$

$

Not available

4

Toro 78-6930

PULLEY-TRANS

$

$

Not available

5

Toro 937222

HARD HI PRO KEY

$3.49

$

In Stock, Qty 20+

0

6

Toro 78-6870

SPACER

$

$

Not available

7

Toro 115271

FAN-7"

$31.99

$

In Stock, Qty 5

0

8

Toro 908011

Screw
(Superseded to 3-2115)

$

$

Not available

9

Toro 920081

Washer
(Superseded to 325-33)

$13.99

$

In Stock, Qty 5

0

10

Toro 103995

WASHER

$9.49

$

In Stock, only 4 left!

0

11

Toro 78-1700

U-BOLT

$

$

Not available

12

Toro 114860

BELT-V

$42.99

$

Usually ships in 3-6 days

0

13

Toro 78-1290

Trans.-Eaton 750-034
(Superseded to 79-2520)

$7073.99

$

Usually ships in 3-6 days

0

14

Toro 2590

Key
(Superseded to 5-1336)

$10.99

$

In Stock, Qty 6

0

15

Toro 909554

Screw-Set
(Superseded to 3243-5)

$2.99

$

In Stock, only 2 left!

0

16

Toro 915236

Nut
(Superseded to 9152366)

$3.49

$

In Stock, only 2 left!

0

17

Toro 116744

TIRE
(Superseded to 116-5363)

$226.99

$

Usually ships in 3-6 days

0

18

Toro 5108

VALVE

$6.99

$

In Stock, Qty 13

0

19

Toro 78-1221

WHEEL

$

$

Not available

20

Toro 1004

Lug Nut

$

$

Not available

21

Toro 105762

Hub-Rear
(Superseded to 93-3659-03)

$148.99

$

Usually ships in 3-6 days

0

22

Toro 915663

NUT
(Superseded to 3296-39)

$2.99

$

In Stock, Qty 20+

0

23

Toro 920009

Washer
(Superseded to 3256-24)

$0.99

$

In Stock, Qty 20+

0

24

Toro 908018

HHCS
(Superseded to 322-4)

$0.99

$

In Stock, Qty 20+

0

25

Toro 78-1710

BRACKET R

$

$

Not available

26

Toro 920009

Washer
(Superseded to 3256-24)

$0.99

$

In Stock, Qty 20+

0

Toro 78-1271

Assembly-Tire and Rim (Incl. Ref. #17-19)

$

$

Not available
