22-17KE01 (257-H) - Toro Yard Tractor (1988) Automatic Transmission Parts Diagram

Yard Tractor

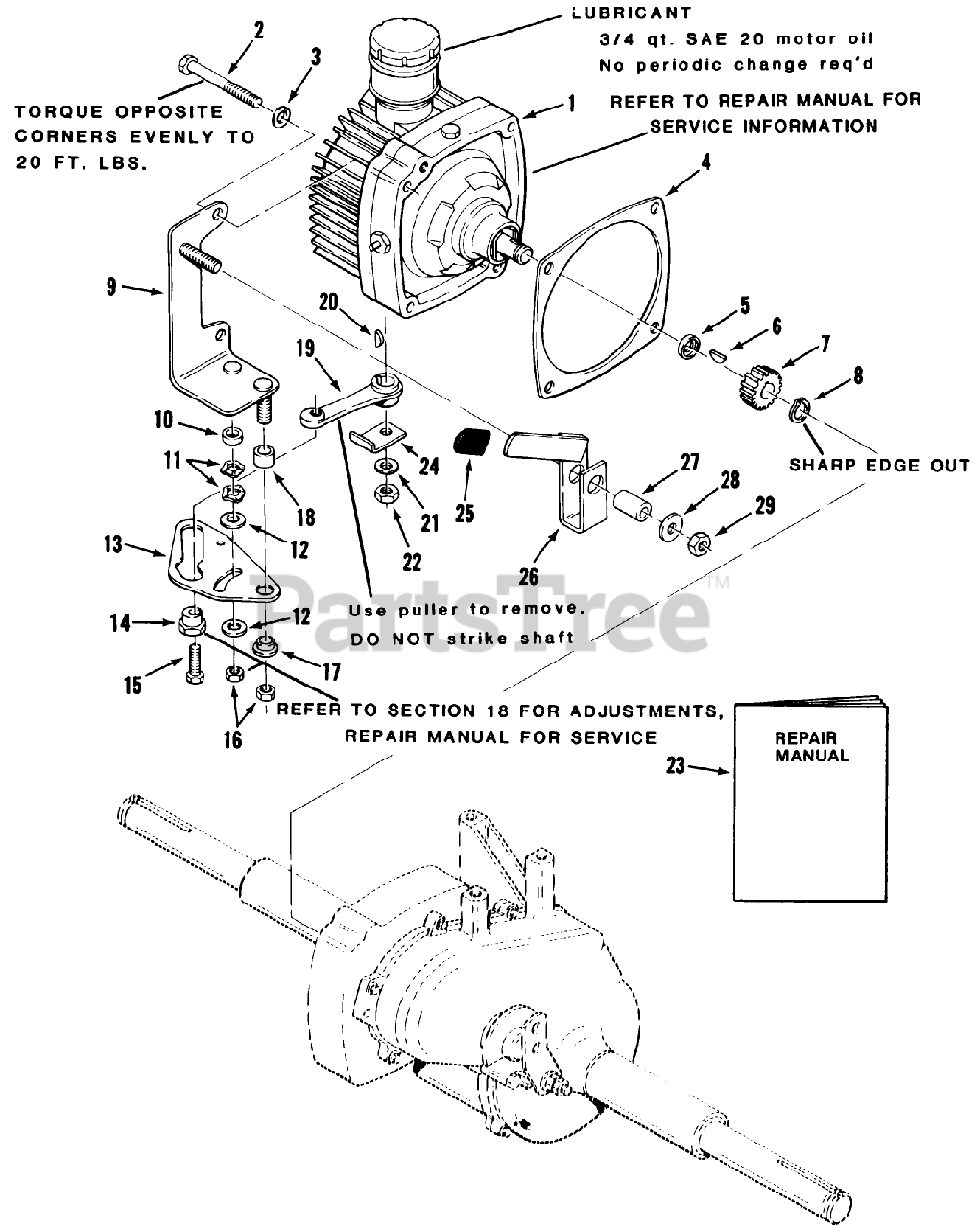

Automatic Transmission Parts Diagram

  • Title

1

Toro 113442

DISCONTINUE

$

$

Not available

2

Toro 908042

See Supercession: 323-14
(Superseded to 323-14)

$4.49

$

In Stock, Qty 20+

0

3

Toro 920083

See Supercession: 3253-21
(Superseded to 3253-21)

$0.99

$

In Stock, Qty 8

0

4

Toro 7951

DISCONTINUED

$

$

Not available

5

Toro 109447

DISCONTINUED

$

$

Not available

6

Toro 937082

KEY WOODR 1/8X1/2 DI

$

$

Not available

7

Toro 109446

DISCONTINUED

$

$

Not available

8

Toro 936122

DISCONTINUED

$

$

Not available

9

Toro 113334

DISCONTINUED

$

$

Not available

10

Toro 108327

SPACER-FRICTION

$2.99

$

Usually ships in 3-6 days

0

11

Toro 100365

WASHER-SPRING DISC

$

$

Not available

12

Toro 100305

FRICTION WASHER

$6.49

$

In Stock, only 2 left!

0

13

Toro 108333

CAM-SPEED CONTROL (NS)

$47.99

$

Usually ships in 3-6 days

0

14

Toro 106661

CAM

$

$

Not available

15

Toro 908019

See Supercession: 322-5
(Superseded to 322-5)

$0.99

$

In Stock, Qty 20+

0

16

Toro 108881

NUT-HEX

$6.49

$

In Stock, Qty 12

0

17

Toro 100309

CAM-SPACER

$10.99

$

In Stock, only 1 left!

0

18

Toro 108326

SPACER-PIVOT

$24.99

$

Usually ships in 3-6 days

0

19

Toro 109383

ARM-SPEED CONTROL

$

$

Not available

20

Toro 937082

KEY WOODR 1/8X1/2 DI

$

$

Not available

21

Toro 920009

See Supercession: 3256-24
(Superseded to 3256-24)

$0.99

$

In Stock, Qty 20+

0

22

Toro 915113

See Supercession: 32153-2
(Superseded to 32153-2)

$

$

Not available

23

Toro 810283R2

Automatic Trans. Repair Parts Service Manual

$

$

Currently unavailable

24

Toro 112473

DISCONTINUED

$

$

Not available

25

Toro 6820

GRIP

$2.99

$

In Stock, only 2 left!

0

26

Toro 113337

ASS'Y-DUMP VALVE *B

$

$

Not available

27

Toro 102025

SPACER

$

$

Not available

28

Toro 920009

See Supercession: 3256-24
(Superseded to 3256-24)

$0.99

$

In Stock, Qty 20+

0

29

Toro 109779

NUT-HEX, JAM

$

$

Not available
