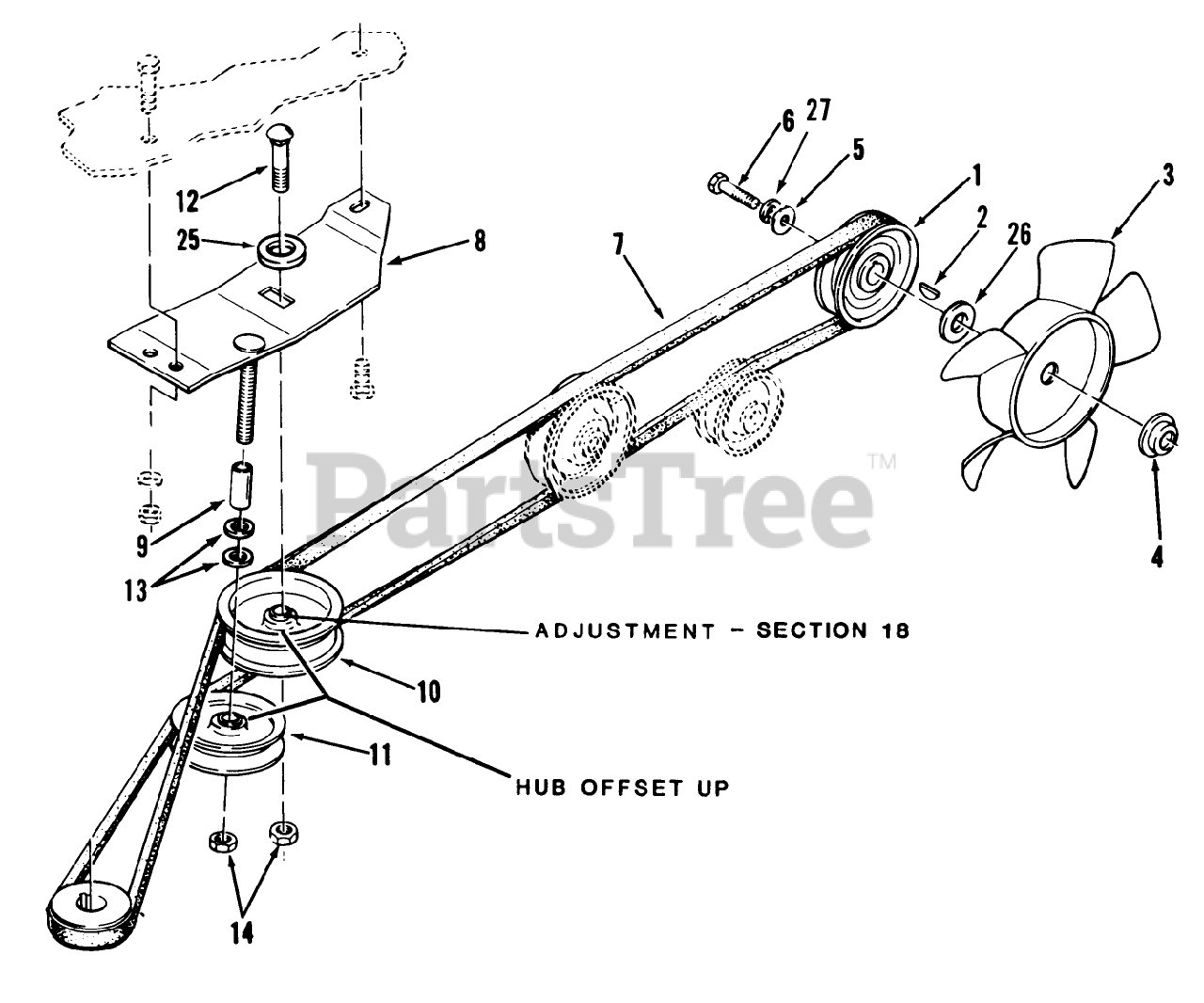

22-17KE02 (257-H) - Toro Yard Tractor (1989) Drive Belt And Pulleys-Automatic Model Parts Diagram

Yard Tractor

Drive Belt And Pulleys-Automatic Model Parts Diagram

  • Title

1

Toro 109387

DISCONTINUED

$

$

Not available

2

Toro 937082

KEY WOODR 1/8X1/2 DI

$

$

Not available

3

Toro 109389

DISCONTINUED

$

$

Not available

4

Toro 109798

DISCONTINUED

$

$

Not available

5

Toro 103995

WASHER

$9.99

$

Usually ships in 3-6 days

0

6

Toro 908005

See Supercession: 321-6
(Superseded to 321-6)

$0.99

$

In Stock, Qty 20+

0

7

Toro 109428

V-BELT

$50.99

$

In Stock, only 2 left!

0

8

Toro 109429

DISCONTINUED

$

$

Not available

9

Toro 109414

DISCONTINUED

$

$

Not available

10

Toro 105874

See Supercession: 92-7104
(Superseded to 92-7104)

$31.99

$

In Stock, only 2 left!

0

11

Toro 8205

PULLEY-IDLER STATION

$28.99

$

In Stock, only 1 left!

0

12

Toro 900065

See Supercession: 3231-4
(Superseded to 323-14)

$4.49

$

In Stock, Qty 20+

0

13

Toro 920009

See Supercession: 3256-24
(Superseded to 3256-24)

$0.99

$

In Stock, Qty 20+

0

14

Toro 915113

See Supercession: 32153-2
(Superseded to 32153-2)

$

$

Not available

25

Toro 920011

See Supercession: 3256-26
(Superseded to 3256-26)

$0.99

$

In Stock, Qty 19

0

26

Toro 920261

Special Washer

$

$

Not available

27

Toro 920081

See Supercession: 3253-3
(Superseded to 325-33)

$14.99

$

In Stock, only 4 left!

0
