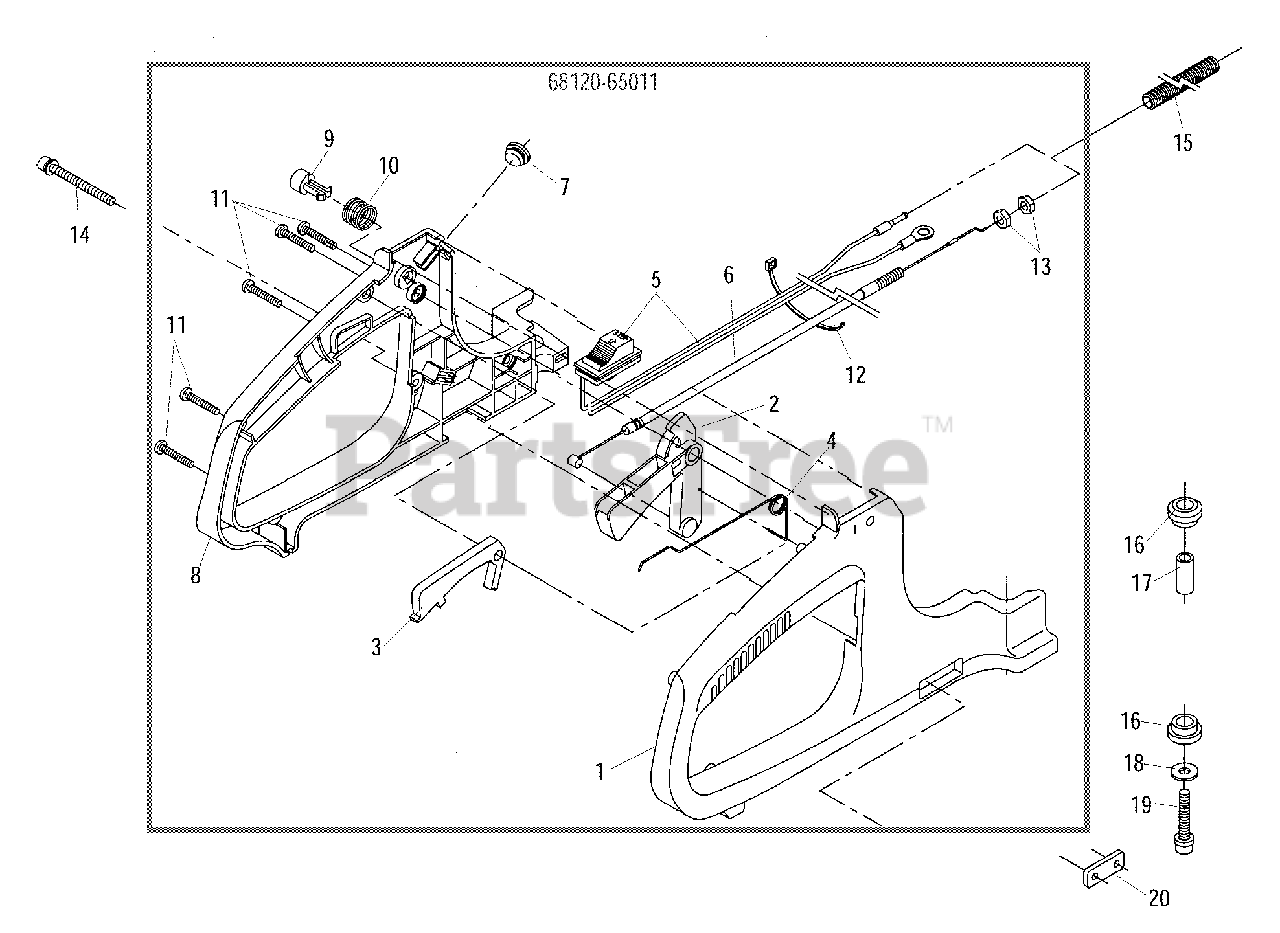

22 DH - Shindaiwa Hedge Trimmer, Dual-Sided Rear Handle Parts Diagram

Hedge Trimmer, Dual-Sided

Rear Handle Parts Diagram

  • Title

68120-65011

Echo 68120-65011

HANDLE ASSY - REAR
(Superseded to 68120-65012)

$

$

Not available

1

Echo 62803-65113

HANDLE - RIGHT
(Superseded to 62803-65114)

$22.99

$

Usually ships in 2-4 days

0

2

Echo 62803-65312

TRIGGER, THROTTLE
(Superseded to C450000570)

$5.99

$

Usually ships in 2-4 days

0

3

Echo 62803-65322

LEVER, TRIGGER LOCKOUT
(Superseded to C460000230)

$3.49

$

Usually ships in 2-4 days

0

4

Echo 62803-65350

SPRING, TRIGGER
(Superseded to V452000680)

$0.99

$

Usually ships in 2-4 days

0

5

Echo 62803-65331

SWITCH, IGNITION
(Superseded to 62803-65332)

$22.99

$

Usually ships in 2-4 days

0

6

Echo 68120-65320

CABLE, THROTTLE
(Superseded to V430003150)

$23.99

$

Usually ships in 2-4 days

0

7

Echo 22150-33630

PLUG
(Superseded to V162000410)

$2.49

$

In Stock, only 4 left!

0

8

Echo 62803-65123

HANDLE - LEFT
(Superseded to 62803-65124)

$22.99

$

Usually ships in 2-4 days

0

9

Echo 70871-65170

BUTTON, THROTTLE LOCK
(Superseded to C461000080)

$1.99

$

Usually ships in 2-4 days

0

10

Echo 70871-65180

SPRING
(Superseded to V450001010)

$0.99

$

In Stock, Qty 6

0

11

Echo 62803-65360

SCREW - 4X8 -- TAPPING
(Superseded to V252000340)

$0.99

$

Usually ships in 2-4 days

0

12

Echo 15210-12305

TIE, CABLE
(Superseded to V495002400)

$0.99

$

Usually ships in 2-4 days

0

13

Echo 01501-06041

NUT - 6
(Superseded to 90050200006)

$0.99

$

In Stock, only 3 left!

0

14

Echo 11022-05450

SCREW - 5X45
(Superseded to V203000610)

$1.99

$

In Stock, Qty 20+

0

15

Echo 20019-83140

TUBE, PROTECTIVE - CORRUGATED
(Superseded to V475005090)

$0.99

$

Usually ships in 2-4 days

0

16

Echo 68120-65330

CUSHION
(Superseded to V420002610)

$0.99

$

In Stock, Qty 10

0

17

Echo 15401-10200

COLLAR - 6
(Superseded to V354000300)

$1.99

$

In Stock, Qty 6

0

18

Echo 23510-64210

WASHER - 16
(Superseded to V304000380)

$0.99

$

In Stock, only 1 left!

0

19

Echo 11020-06350

SCREW - 6X35
(Superseded to V204000530)

$1.99

$

In Stock, only 3 left!

0

20

Echo 68120-66320

PLATE

$2.49

$

Usually ships in 2-4 days

0
