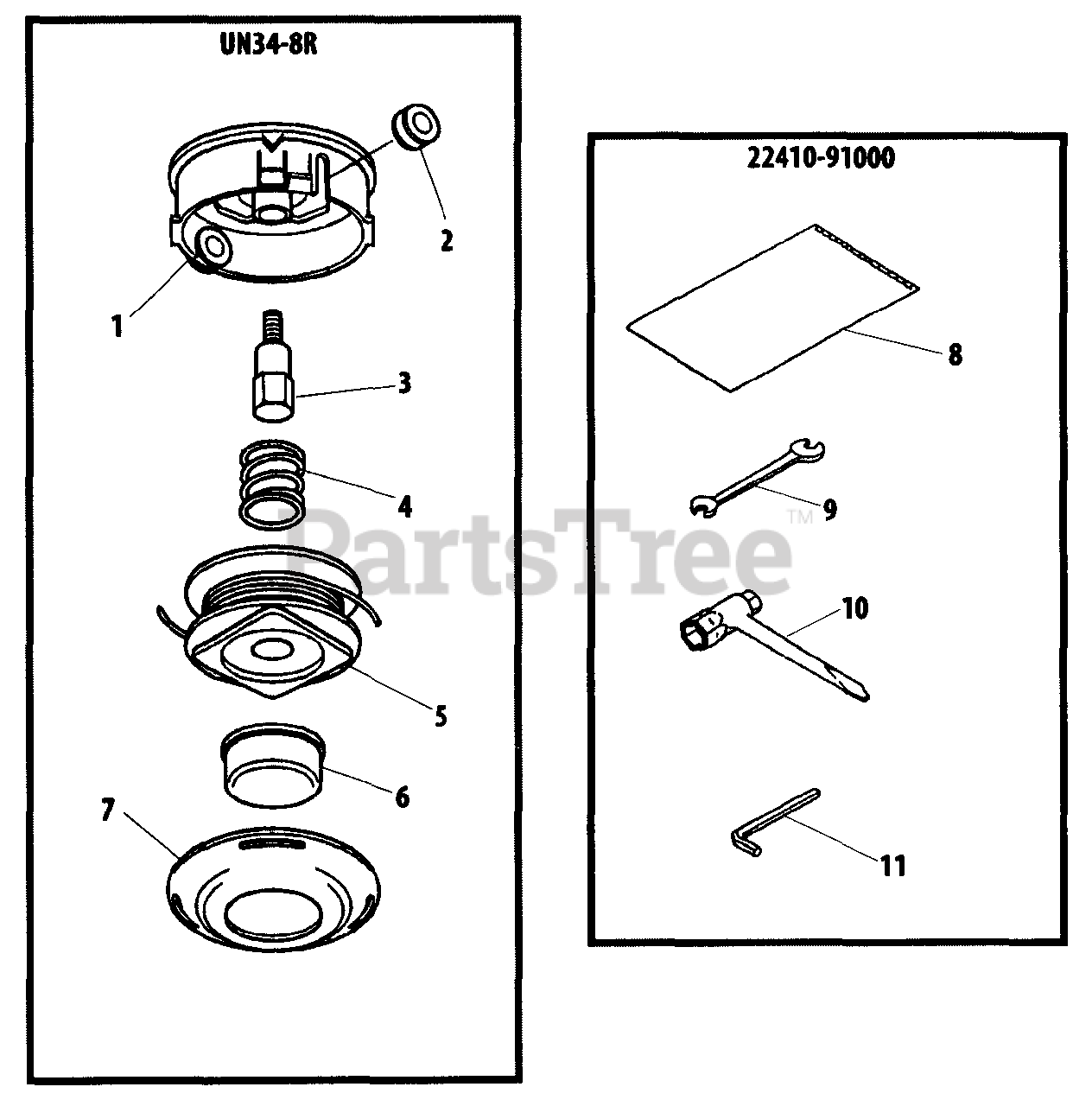

22 F - Shindaiwa String Trimmer Accessories Parts Diagram

String Trimmer

Accessories Parts Diagram

  • Title

UN34-8R

Echo UN34-8R

TRIMMER HEAD ASSY

$

$

Not available

1

Echo 99909-15790

HOUSING

$12.99

$

In Stock, only 3 left!

0

2

Echo 72005-92630

EYELET

$1.99

$

In Stock, Qty 20+

0

3

Echo 99909-15800

SHAFT BOLT

$8.49

$

In Stock, Qty 13

0

4

Echo 72078-15240

SPRING

$1.99

$

In Stock, Qty 19

0

5

Echo 99909-15810

SPOOL

$11.99

$

In Stock, Qty 14

0

6

Echo 99909-15780

BUTTON

$4.49

$

In Stock, Qty 9

0

7

Echo 99909-15750

COVER

$9.99

$

In Stock, Qty 8

0

22410-91000

Echo 22410-91000

TOOL KIT, SERVICE
(Superseded to P021048890)

$11.99

$

In Stock, only 4 left!

0

8

Echo 19639-01100

BAG, TOOL
(Superseded to X705000130)

$

$

Not available

9

Echo 22000-91120

SPANNER 8×10
(Superseded to X600000020)

$0.99

$

In Stock, Qty 5

0

10

Echo 22000-91181

T-WRENCH 13×19 MM
(Superseded to X602000150)

$

$

Not available

11

Echo 09026-04001

WRENCH, ALLEN 4 MM
(Superseded to X605000100)

$1.99

$

In Stock, only 2 left!

0
