22 F - Shindaiwa String Trimmer Fuel Tank Parts Diagram

String Trimmer

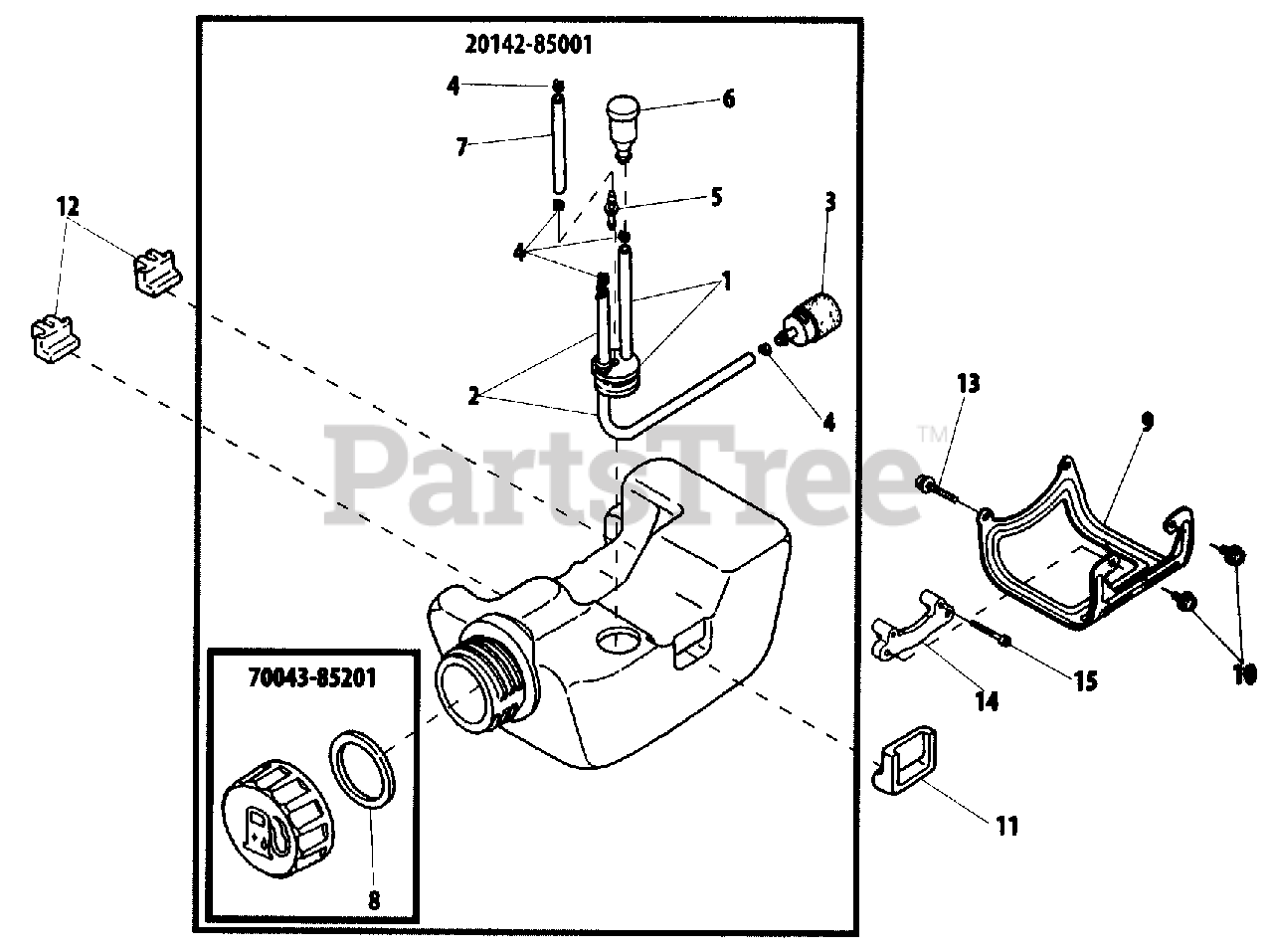

Fuel Tank Parts Diagram

  • Title

20142-85001

Echo 20142-85001

FUEL TANK ASSY
(Superseded to 20142-85002)

$42.99

$

In Stock, Qty 20+

0

1

Echo 20087-85350

GROMMET
(Superseded to V470001030)

$5.49

$

In Stock, Qty 17

0

2

Echo 20110-85320

PIPE - FUEL
(Superseded to V471002600)

$1.99

$

In Stock, Qty 20+

0

3

Echo 20016-85400

FILTER, FUEL
(Superseded to A369000070)

$8.99

$

In Stock, Qty 20+

0

4

Echo 20020-85540

RING, RETAINING - 6
(Superseded to V490000500)

$0.99

$

In Stock, Qty 20+

0

5

Echo 72933-85620

CONNECTOR, PIPE
(Superseded to V186000210)

$1.99

$

In Stock, Qty 20+

0

6

Echo 20035-85522

VENT, FUEL TANK
(Superseded to A356000040)

$6.99

$

In Stock, Qty 20+

0

7

Echo 20140-83311

PIPE - RETURN
(Superseded to V471002490)

$1.99

$

In Stock, Qty 7

0

70043-85201

Echo 70043-85201

CAP ASSY
(Superseded to A033000070)

$3.99

$

In Stock, Qty 16

0

8

Echo 20000-85221

GASKET, CAP
(Superseded to V107000010)

$1.99

$

In Stock, Qty 20+

0

9

Echo 70135-86130

GUARD, FUEL TANK
(Superseded to 62902-85320)

$12.99

$

In Stock, Qty 6

0

10

Echo 11206-05120

SCREW - 5X12
(Superseded to 9157405012)

$0.99

$

In Stock, Qty 11

0

11

Echo 20087-86130

CUSHION, TANK
(Superseded to V420002240)

$2.49

$

In Stock, only 1 left!

0

12

Echo 20087-86141

CUSHION, TANK
(Superseded to V420002250)

$4.49

$

In Stock, Qty 10

0

13

Echo 11206-05300

SCREW - 5X30
(Superseded to 9157405030)

$0.99

$

In Stock, Qty 7

0

14

Echo 67000-86310

BRACKET
(Superseded to V376001200)

$5.49

$

In Stock, only 1 left!

0

15

Echo 11024-04300

SCREW - 4X30
(Superseded to V202000220)

$1.99

$

In Stock, Qty 5

0
