22 HB - Husqvarna Handheld Blower (1988-01) Carburetor Assembly Parts Diagram

Handheld Blower

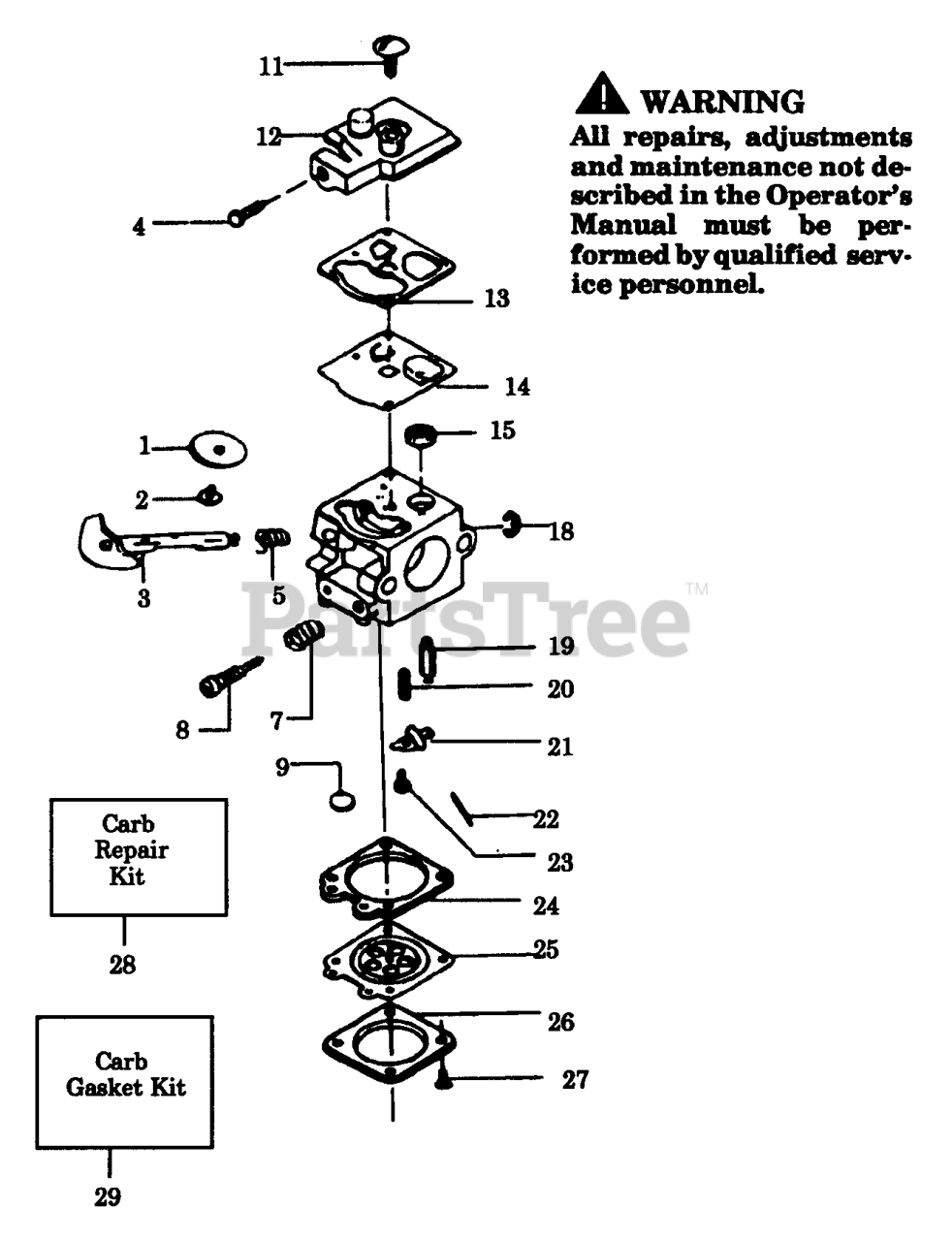

Carburetor Assembly Parts Diagram

  • Title

1

Husqvarna 530035197

THROTTLE VALVE 22B

$

$

Not available

2

Husqvarna 530035015

SCREW SHUTTERS

$

$

Not available

3

Husqvarna 530035132

Shaft Ass'y.-Throttle

$

$

Not available

4

Husqvarna 530035156

SCREW IDLE ADJUSTMENT

$

$

Not available

5

Husqvarna 530035138

Spring-Throttle Return

$

$

Not available

7

Husqvarna 530035200

SPRING,HI-SPD NDL 22B
(Superseded to 530035293)

$3.49

$

Usually ships in 3-10 days

0

8

Husqvarna 530035198

Needle-High Speed Mixture

$

$

Not available

9

Husqvarna 530035162

Plug-5/16 Dia. Welch

$

$

Not available

11

Husqvarna 530035017

SCREW PUMP COVER

$

$

Not available

12

Husqvarna 530035191

COVER-PUMP/22B

$

$

Not available

13

Husqvarna 530035164

GASKET-FUEL PUMP
(Superseded to 504130906)

$13.99

$

In Stock, only 2 left!

0

14

Husqvarna 530035166

DIAP FUEL PUMP
(Superseded to 504130807)

$37.99

$

In Stock, Qty 18

0

15

Husqvarna 530035178

SCREEN-DUTCH TWILL INLE

$

$

Not available

18

Husqvarna 530035007

Ring-Throttle Retainer

$

$

Not available

19

Husqvarna 530035106

INLET NEEDLEVALVE
(Superseded to 503117001)

$26.99

$

In Stock, Qty 6

0

20

Husqvarna 530035139

SPRING, MOTOR LEVER
(Superseded to 530035188)

$4.99

$

In Stock, Qty 9

0

21

Husqvarna 530035031

LEVER
(Superseded to 505520127)

$

$

Not available

22

Husqvarna 530035028

PIN
(Superseded to 505520125)

$7.99

$

Usually ships in 3-10 days

0

23

Husqvarna 530035016

SCREW

$7.99

$

Usually ships in 3-10 days

0

24

Husqvarna 530035151

GASKET-METER DIAP

$4.99

$

In Stock, Qty 7

0

25

Husqvarna 530035014

DIAPHRAGM
(Superseded to 503896701)

$56.99

$

In Stock, Qty 9

0

26

Husqvarna 530035003

COVER MOTOR DIAPHRAGM

$

$

Not available

27

Husqvarna 530035021

SCREW, MOTOR COVER

$

$

Not available

28

Husqvarna 530035199

CARB. REPAIR KIT 22B

Note: (Contents include items 13-14, 24-25)

$

$

Not available

29

Husqvarna 530035186

CARB GSKT KIT 22B
(Superseded to 530069844)

Note: (Contents include items 9, 13-14, 19-25)

$22.99

$

In Stock, Qty 14

0
