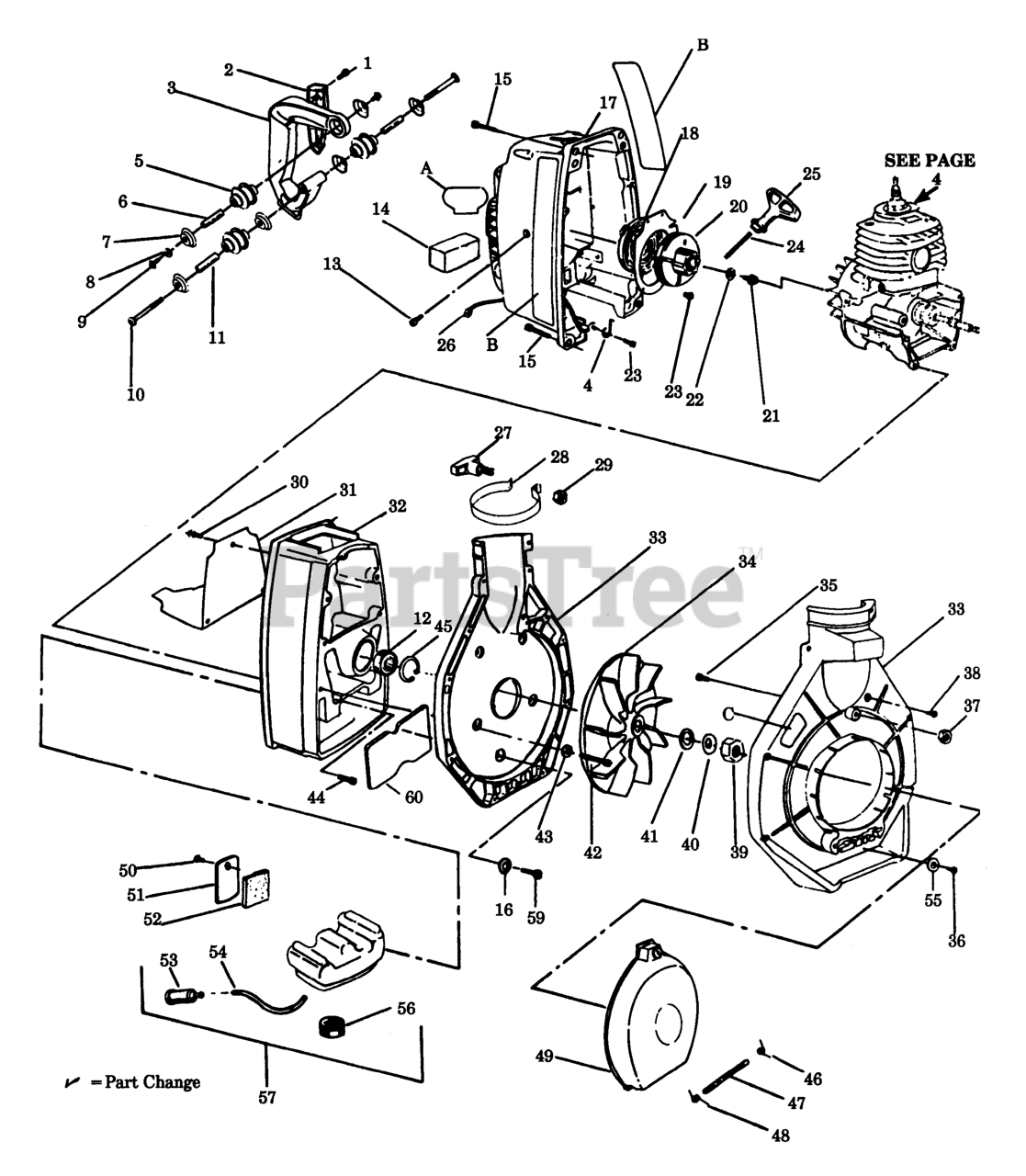

22 HB - Husqvarna Handheld Blower (1988-01) Housing/Impeller Parts Diagram

Handheld Blower

Housing/Impeller Parts Diagram

  • Title

1

Husqvarna 530015635

SCREW-10-14X5/8 PHIL.FI

$6.99

$

Usually ships in 3-10 days

0

2

Husqvarna 530094212

COVER-HANDLE (BLACK)

$

$

Not available

3

Husqvarna 530010827

ASSY-HANDLE W/"D" RING

$

$

Not available

4

Husqvarna 530027157

WIRE-STATIC GROUND

$

$

Not available

5

Husqvarna 530026994

Handle Isolator

$

$

Not available

6

Husqvarna 530015343

SPACER REAR MOUNT

$

$

Not available

7

Husqvarna 530026163

CUP-ISOLATOR

$

$

Not available

8

Husqvarna 530015629

WASHER (#8)

$

$

Not available

9

Husqvarna 530015628

SCREW-8-32 X 7/16 BIND

$

$

Not available

10

Husqvarna 530015561

Screw

$

$

Not available

11

Husqvarna 530015342

SPACER

$

$

Not available

12

Husqvarna 530032091

Ball Bearing (Shroud)

Note: When removing or installing the bearing (#32091), the area of the shroud (#10824) receiving the bearing must be heated to approximately 300°F. to avoid damaging the shroud.

$

$

Not available

13

Husqvarna 530015700

Screw

$

$

Not available

14

Husqvarna 530024371

AIR FILTER

$

$

Not available

15

Husqvarna 530015687

SCREW 10-24 X 1.00 SEMS

$

$

Not available

16

Husqvarna 530015123

WASHER

$4.99

$

In Stock, only 3 left!

0

17

Husqvarna 530029081

Fan Housing

$

$

Not available

18

Husqvarna 530042023

SPRING-STARTER
(Superseded to 545008007)

$

$

Not available

19

Husqvarna 530026780

BAFFLE-AIR

$

$

Not available

20

Husqvarna 530069200

USE 5300692-88
(Superseded to 530069288)

$

$

Not available

21

Husqvarna 530015479

Screw

$

$

Not available

22

Husqvarna 530015123

WASHER

$4.99

$

In Stock, only 3 left!

0

23

Husqvarna 530015544

SCREW-10-14X3/8 TRI-LOB

$

$

Not available

24

Husqvarna 530069232

KIT-ROPE

$5.99

$

In Stock, only 3 left!

0

25

Husqvarna 530026735

USE 5300275-69
(Superseded to 530027569)

$4.99

$

Usually ships in 3-10 days

0

26

Husqvarna 530027175

Ground Wire

$

$

Not available

27

Husqvarna 530069252

KIT "T" HANDLE
(Superseded to 530069347)

$5.99

$

Usually ships in 3-10 days

0

28

Husqvarna 530094222

CLAMP-BLOWER TUBE
(Superseded to 530095592)

$5.99

$

Usually ships in 3-10 days

0

29

Husqvarna 530015197

NUT

$3.49

$

In Stock, only 3 left!

0

30

Husqvarna 530015636

SCREW-10-24 X 5/16 FIL.

$

$

Not available

31

Husqvarna 530026776

DEFLECTOR-HEAT

$

$

Not available

32

Husqvarna 530010824

Shroud

Note: (Incl. #12 & 45) When removing or installing the bearing (#32091), the area of the shroud (#10824) receiving the bearing must be heated to approximately 300°F. to avoid damaging the shroud.

$

$

Not available

33

Husqvarna 530069269

Blower Hsg. Kit

Note: (Incl. #36, 46-49, 55, & Vac. Tubes)

$

$

Not available

34

Husqvarna 530094215

Impeller

$

$

Not available

35

Husqvarna 530015661

SCREW-10-24 X .88

$

$

Not available

36

Husqvarna 530015495

SCREW-10-16X3/4 HI LO
(Superseded to 534222402)

$3.49

$

In Stock, only 3 left!

0

37

Husqvarna 530001543

Nut

$

$

Not available

38

Husqvarna 530015367

SCREW
(Superseded to 530015814)

$3.49

$

In Stock, Qty 6

0

39

Husqvarna 530015644

NUT-IMPELLAR

$

$

Not available

40

Husqvarna 530015441

WASHER CONICAL

$

$

Not available

41

Husqvarna 530015626

WASHER
(Superseded to 530016030)

$

$

Not available

42

Husqvarna 530015632

SCREW-1/4-20 X 3/4 PAN

$

$

Not available

43

Husqvarna 530015682

WASHER-FLAT (1/4")
(Superseded to 530015149)

$3.49

$

Usually ships in 3-10 days

0

44

Husqvarna 530015168

SCREW-10-24 X 5/8 FILL

$

$

Not available

45

Husqvarna 530001516

SNAP RING

$

$

Not available

46

Husqvarna 530015667

SPRING-TORSION (RIGHT)

$

$

Not available

47

Husqvarna 530015647

PIN-PIVOT

$1.49

$

Usually ships in 3-10 days

0

48

Husqvarna 530015672

SPRING-TORSION (LEFT)

$

$

Not available

49

Husqvarna 530094241

ASSY-INLET DOOR

$

$

Not available

50

Husqvarna 530015638

SCREW-1/4-20 X 1/2

$

$

Not available

51

Husqvarna 530015637

RETAINER-FUEL TANK

$

$

Not available

52

Husqvarna 530026781

FOAM-FUEL TANK

$

$

Not available

53

Husqvarna 530010897

ASSY-FUEL PICK-UP
(Superseded to 530095646)

$6.99

$

In Stock, Qty 20+

0

54

Husqvarna 530069247

HOSE. FUEL

$2.49

$

In Stock, Qty 20+

0

55

Husqvarna 530015382

Washer

$

$

Not available

56

Husqvarna 530010729

ASSY-FUEL CAP W/RETAINER
(Superseded to 530014347)

Note: (Incl. 0-Ring)

$9.49

$

In Stock, Qty 10

0

57

Husqvarna 530010815

Fuel Tank Ass'y.

Note: (Incl. #53, 54 & 56)

$

$

Not available

59

Husqvarna 530015683

SCREW-10-24 X 5/8

$

$

Not available

60

Husqvarna 530027350

SHIELD-FUEL TANK

$

$

Not available

A

Husqvarna 530029034

Instruction Decal

$

$

Not available

B

Husqvarna 530029031

Fan Housing Decal (Left & Right) - Model 22HB

$

$

Currently unavailable

B

Husqvarna 530029032

Fan Housing Decal (Left & Right) - Model 28HBV

$

$

Currently unavailable

C

Husqvarna 530027334

Blower/Vac Warning Decal

$

$

Not available
