220 AC - Husqvarna Automower Robotic Lawn Mower (2011-01) BLADE MOTOR & CUTTING EQUIPMENT Parts Diagram

Automower Robotic Lawn Mower

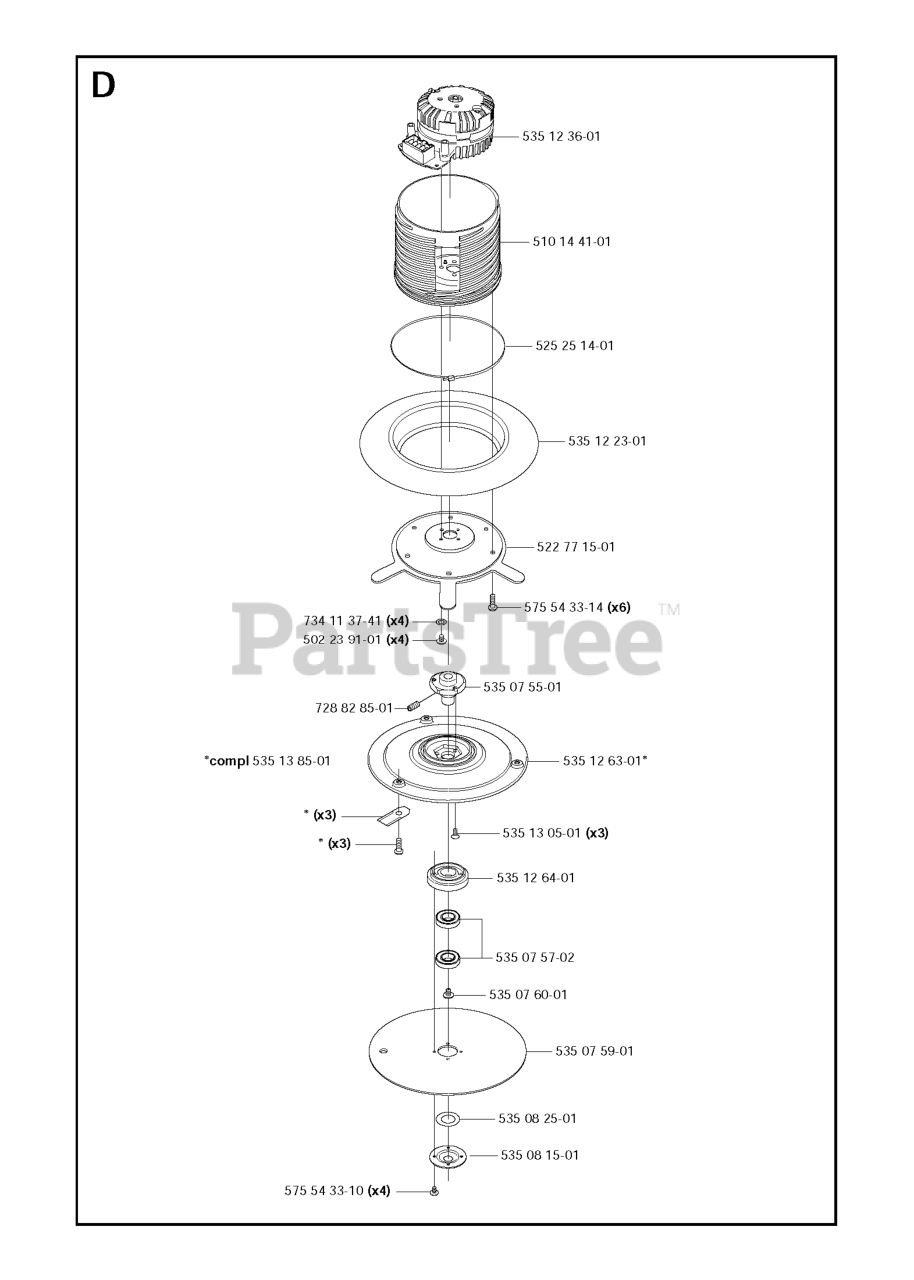

BLADE MOTOR & CUTTING EQUIPMENT Parts Diagram

  • Title

535 07 55-01

Husqvarna 535075501

HUB CUTTING DISC

$11.99

$

Usually ships in 3-10 days

0

522 77 15-01

Husqvarna 522771501

$

$

Currently unavailable

535 12 36-01

Husqvarna 535123601

MOTOR

$113.99

$

Usually ships in 3-10 days

0

575 54 33-10

Husqvarna 575543310

SCREW SILVER 10MM

$4.99

$

In Stock, Qty 9

0

535 12 64-01

Husqvarna 535126401

BEARING

$13.99

$

In Stock, only 1 left!

0

535 13 85-01

Husqvarna 535138501

RP BLADE DISC
(Superseded to 535126301)

$26.99

$

In Stock, only 2 left!

0

535 08 15-01

Husqvarna 535081501

COVER SKID PLATE

$

$

Not available

535 07 57-02

Husqvarna 535075702

SPACER

$13.99

$

In Stock, only 1 left!

0

734 11 37-41

Husqvarna 734113741

WASHER

$5.99

$

Usually ships in 3-10 days

0

535 07 59-01

Husqvarna 535075901

PLATE SKID

$26.99

$

Usually ships in 3-10 days

0

535 13 05-01

Husqvarna 535130501

SCREW
(Superseded to 535130502)

$4.99

$

In Stock, only 1 left!

0

535 08 25-01

Husqvarna 535082501

GASKET

$4.99

$

In Stock, only 2 left!

0

575 54 33-14

Husqvarna 575543314

SCREW 14MM

$4.99

$

In Stock, Qty 18

0

525 25 14-01

Husqvarna 525251401

TIE WRAP

$

$

Not available

535 12 63-01

Husqvarna 535126301

BLADE DISC

$26.99

$

In Stock, only 2 left!

0

728 82 85-01

Husqvarna 728828501

SCREW

$

$

Not available

502 23 91-01

Husqvarna 502239101

SCREW

$6.99

$

In Stock, only 1 left!

0

535 12 23-01

Husqvarna 535122301

BELLOWS

$51.99

$

Usually ships in 3-10 days

0

535 07 60-01

Husqvarna 535076001

SCREW

$4.99

$

In Stock, Qty 17

0

510 14 41-01

Husqvarna 510144101

MOTOR BOWL CUTTING MOTOR

$28.99

$

In Stock, only 1 left!

0

535 07 57-02

Husqvarna 593080801

BALL BEARING BALL BEARING 535

Note: Tube 50 pcs

$511.99

$

Usually ships in 3-10 days

0
