220 AC - Husqvarna Automower Robotic Lawn Mower (2011-01) CHARGING STATION Parts Diagram

Automower Robotic Lawn Mower

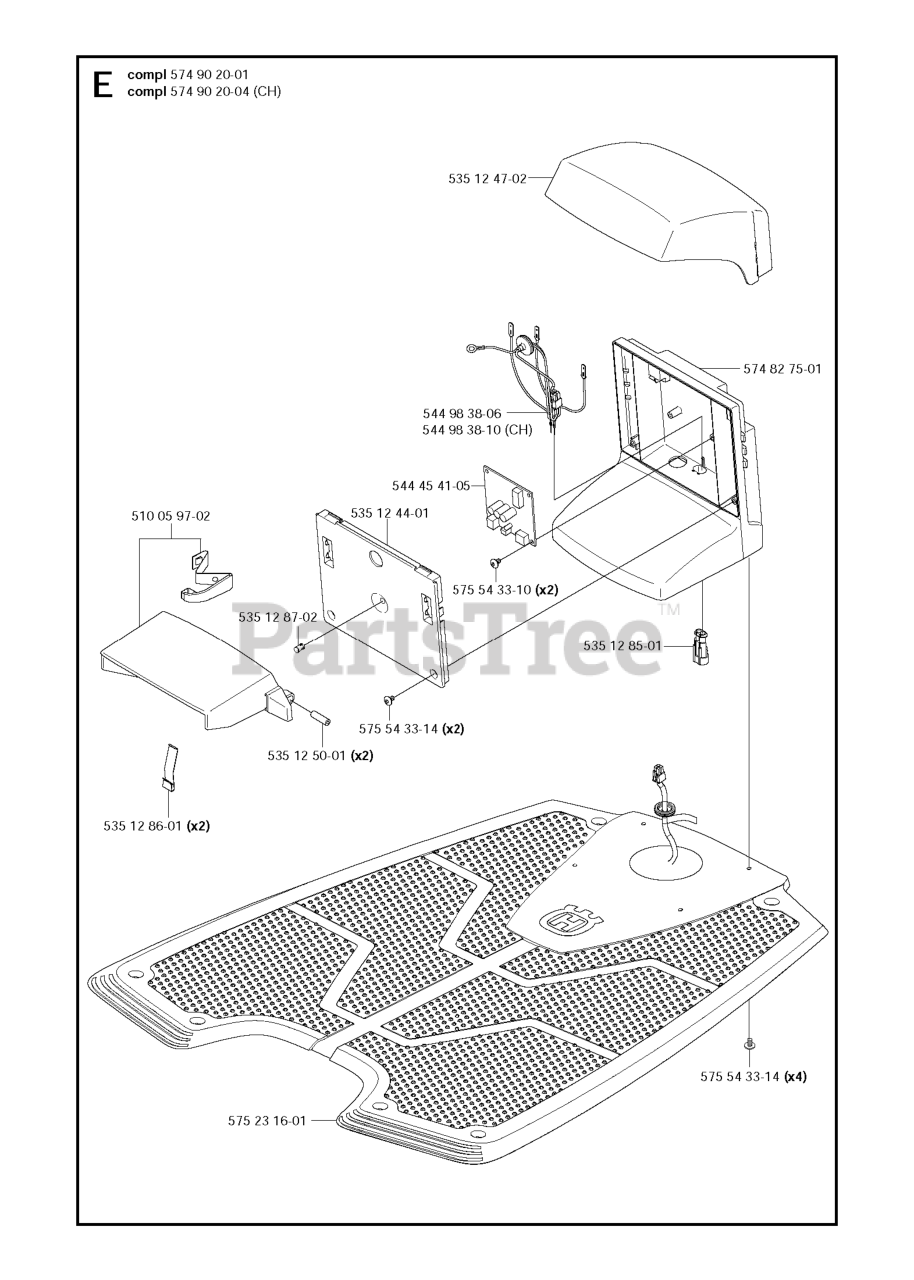

CHARGING STATION Parts Diagram

  • Title

535 12 87-02

Husqvarna 535128702

LENS
(Superseded to 590217201)

$8.49

$

Usually ships in 3-10 days

0

575 54 33-14

Husqvarna 575543314

SCREW 14MM

$3.99

$

In Stock, Qty 8

0

575 23 16-01

Husqvarna 575231601

CHARGING PLATE
(Superseded to 590094001)

$454.99

$

In Stock, only 1 left!

0

535 12 85-01

Husqvarna 535128501

SLEEVE

$

$

Not available

575 54 33-10

Husqvarna 575543310

SCREW SILVER 10MM

$5.99

$

Usually ships in 3-10 days

0

575 54 33-14

Husqvarna 575543314

SCREW 14MM

$3.99

$

In Stock, Qty 8

0

574 90 20-01

Husqvarna 574902001

CHARGING STATION

$

$

Not available

535 12 47-02

Husqvarna 535124702

CS / TOWER COVER

$

$

Not available

535 12 86-01

Husqvarna 535128601

SPRING

$

$

Not available

535 12 50-01

Husqvarna 535125001

PIN

$

$

Not available

535 12 44-01

Husqvarna 535124401

COVER

$

$

Not available

510 05 97-02

Husqvarna 510059702

KIT - CHARGING STATION

$

$

Not available

574 90 20-04

Husqvarna 574902004

$

$

Currently unavailable

544 98 38-10

Husqvarna 544983810

$

$

Currently unavailable

544 98 38-06

Husqvarna 544983806

WIRING ASSY LOOM

$

$

Not available

544 45 41-05

Husqvarna 544454105

RP CIRCUIT BOARD ASSY
(Superseded to 592909601)

$179.99

$

Usually ships in 3-10 days

0

574 82 75-01

Husqvarna 574827501

BODY CHARGING TOWER

$

$

Not available
