220 AC - Husqvarna Automower Robotic Lawn Mower (2013-01) CHARGING STATION Parts Diagram

Automower Robotic Lawn Mower

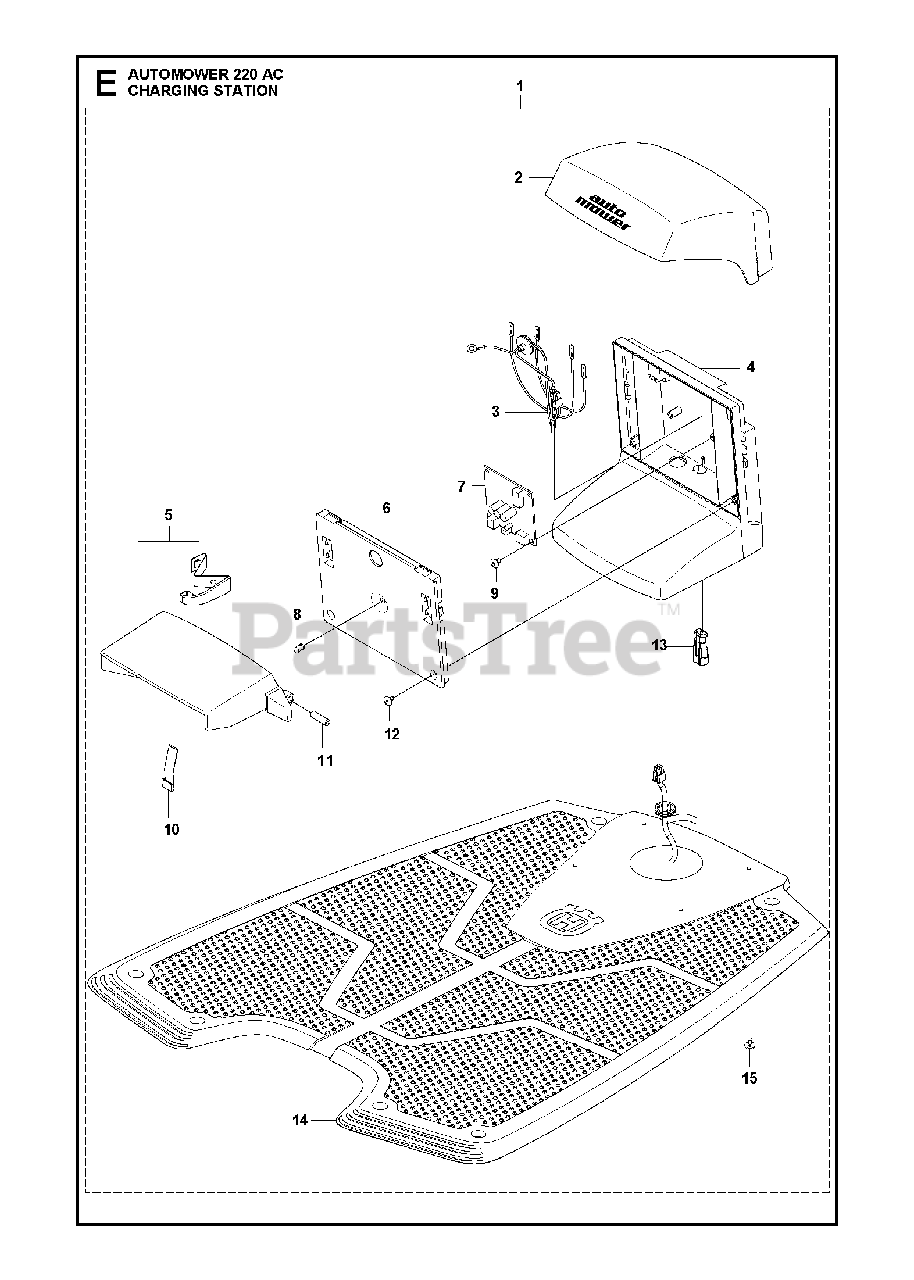

CHARGING STATION Parts Diagram

  • Title

1

Husqvarna 574902001

CHARGING STATION

$

$

Not available

1

Husqvarna 574902004

Note: (CH)

$

$

Currently unavailable

2

Husqvarna 535124702

CS / TOWER COVER

$

$

Not available

3

Husqvarna 544983806

WIRING ASSY LOOM

$

$

Not available

3

Husqvarna 544983810

Note: (CH)

$

$

Currently unavailable

4

Husqvarna 574827501

BODY CHARGING TOWER

$

$

Not available

5

Husqvarna 510059702

KIT - CHARGING STATION

$

$

Not available

6

Husqvarna 535124401

COVER

$

$

Not available

7

Husqvarna 578788401

PRINTED CIRCUIT ASSY
(Superseded to 592909601)

$148.99

$

Usually ships in 3-10 days

0

7

Husqvarna 578788601

PRINTED CIRCUIT ASSY
(Superseded to 578788602)

Note: (CH)

$

$

Not available

8

Husqvarna 535128702

LENS
(Superseded to 590217201)

$7.99

$

Usually ships in 3-10 days

0

9

Husqvarna 575543310

SCREW SILVER 10MM

$4.99

$

In Stock, Qty 9

0

10

Husqvarna 535128601

SPRING

$

$

Not available

11

Husqvarna 535125001

PIN

$

$

Not available

12

Husqvarna 575543314

SCREW 14MM

$4.99

$

In Stock, Qty 18

0

13

Husqvarna 535128501

SLEEVE

$

$

Not available

14

Husqvarna 575231601

CHARGING PLATE
(Superseded to 590094001)

$182.99

$

Usually ships in 3-10 days

0

15

Husqvarna 575543314

SCREW 14MM

$4.99

$

In Stock, Qty 18

0
