220 AC - Husqvarna Automower Robotic Lawn Mower (Original) CHASSIS LOWER 2009 Parts Diagram

Automower Robotic Lawn Mower

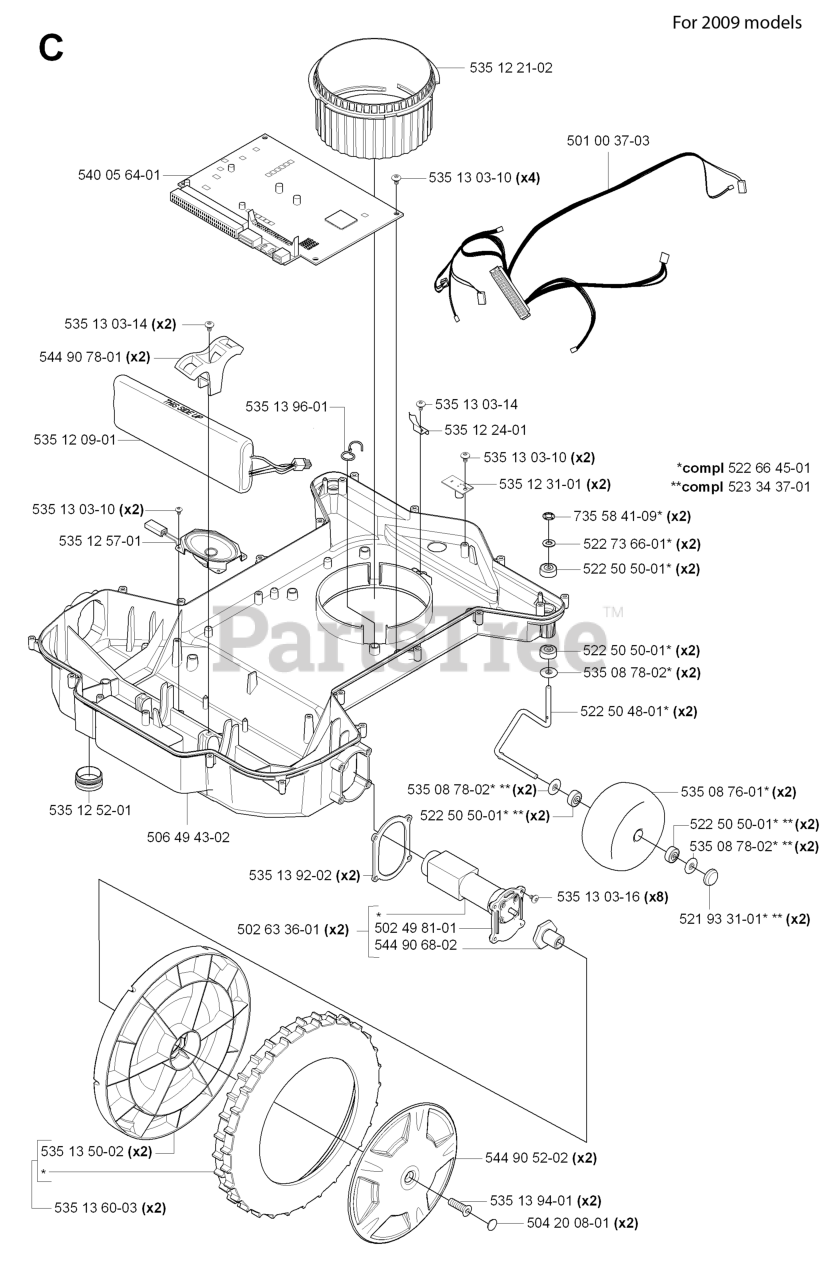

CHASSIS LOWER 2009 Parts Diagram

  • Title

535 12 31-01

Husqvarna 535123101

RP PRINTED CIRCUIT CARD
(Superseded to 592852201)

$22.99

$

Usually ships in 3-10 days

0

535 13 60-03

Husqvarna 535136003

GEAR WHEEL

$34.99

$

Usually ships in 3-10 days

0

522 50 50-01

Husqvarna 522505001

BALL BEARING

$10.99

$

Usually ships in 3-10 days

0

535 13 96-01

Husqvarna 535139601

HOLDER

$

$

Not available

502 63 36-01

Husqvarna 502633601

$

$

Currently unavailable

506 49 43-02

Husqvarna 506494302

$

$

Currently unavailable

535 13 94-01

Husqvarna 535139401

SCREW

$

$

Not available

735 58 41-09

Husqvarna 735584109

LOCK WASHER
(Superseded to 576019402)

$4.99

$

Usually ships in 3-10 days

0

535 08 78-02

Husqvarna 535087802

WASHER

$4.99

$

Usually ships in 3-10 days

0

522 50 48-01

Husqvarna 522504801

SPINDLE

$13.99

$

Usually ships in 3-10 days

0

522 73 66-01

Husqvarna 522736601

WASHER

$

$

Not available

535 13 03-10

Husqvarna 535130310

SCREW

$3.49

$

In Stock, only 4 left!

0

535 13 03-14

Husqvarna 535130314

SCREW

$3.49

$

Usually ships in 3-10 days

0

535 12 21-02

Husqvarna 535122102

CUTTING HEIGHT NUT

$

$

Not available

544 90 78-01

Husqvarna 544907801

BRACKET

$10.99

$

Usually ships in 3-10 days

0

521 93 31-01

Husqvarna 521933101

COVER WASHER

$5.99

$

Usually ships in 3-10 days

0

522 66 45-01

Husqvarna 522664501

KIT FRT WHL AXLE 535087601

$

$

Not available

535 13 03-10

Husqvarna 535130310

SCREW

$3.49

$

In Stock, only 4 left!

0

544 90 68-02

Husqvarna 544906802

HUB

$

$

Not available

522 50 50-01

Husqvarna 593081101

NEEDS DESCRIPTION

Note: Tube 50 pcs

$

$

Currently unavailable

535 13 03-16

Husqvarna 535130316

RP SCREW
(Superseded to 575543316)

$

$

Not available

535 12 52-01

Husqvarna 535125201

PLUG

$

$

Not available

535 12 09-01

Husqvarna 535120901

BATTERY
(Superseded to 535120902)

$283.99

$

Usually ships in 3-10 days

0

501 00 37-03

Husqvarna 501003703

MAIN WIRING

$125.99

$

Usually ships in 3-10 days

0

535 08 76-01

Husqvarna 535087601

RP WHEEL, FRONT
(Superseded to 575231701)

$20.99

$

Usually ships in 3-10 days

0

535 12 24-01

Husqvarna 535122401

SPRING

$

$

Not available

535 12 57-01

Husqvarna 535125701

LOUD SPEAKER

$

$

Not available

523 34 37-01

Husqvarna 523343701

BEARING KIT 6MM AXLE

$

$

Not available

540 05 64-01

Husqvarna 540056401

RP PRINTED CIRCUIT ASSY
(Superseded to 592852001)

$375.99

$

Usually ships in 3-10 days

0

504 20 08-01

Husqvarna 504200801

COVER WASHER

$4.99

$

Usually ships in 3-10 days

0

535 13 03-14

Husqvarna 535130314

SCREW

$3.49

$

Usually ships in 3-10 days

0

535 13 50-02

Husqvarna 535135002

WHEEL LOGO ADDED

$

$

Not available

502 49 81-01

Husqvarna 502498101

$

$

Currently unavailable

544 90 52-02

Husqvarna 544905202

HUB CAP

$

$

Not available
