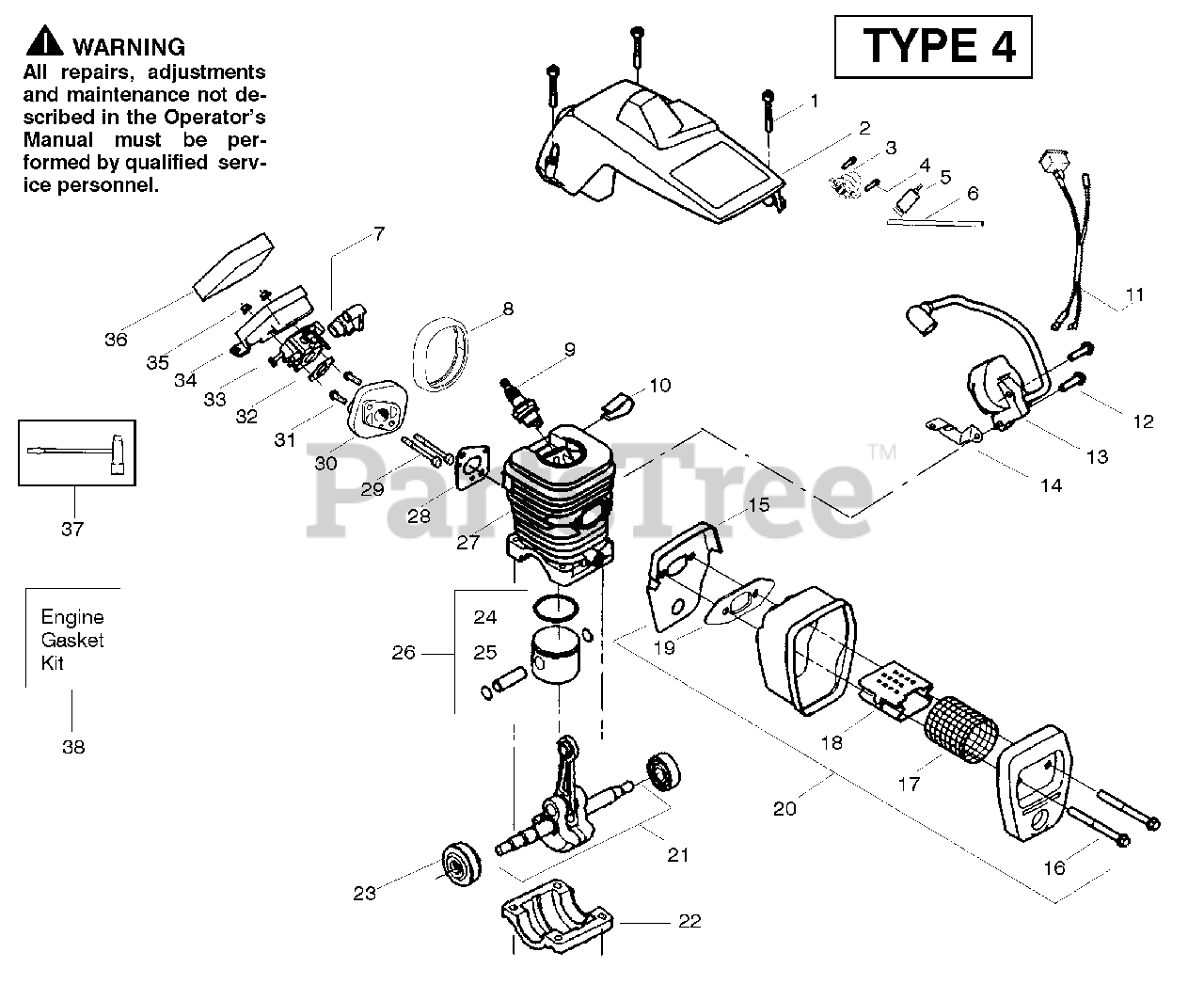

220 - Poulan Chainsaw, Type 4 (2006-09) Engine - Type 4 Parts Diagram

Chainsaw, Type 4

Engine - Type 4 Parts Diagram

  • Title

1

Electrolux/AYP 530016153

Screw

$6.49

$

In Stock, Qty 15

0

2

Electrolux/AYP 530071310

Shield-Cylinder

$

$

Not available

3

Electrolux/AYP 530047213

Assy-Air Purge
(Superseded to 530071835)

$8.99

$

In Stock, Qty 20+

0

4

Electrolux/AYP 530015780

Screw

$6.49

$

In Stock, only 3 left!

0

5

Electrolux/AYP 530095646

Assy-Fuel Pick-up

$4.99

$

In Stock, Qty 20+

0

6

Electrolux/AYP 530069247

Kit-Line Purge/Carb. (Small Dia)

$6.49

$

In Stock, Qty 20+

0

7

Electrolux/AYP 530035526

Grommet-Carb Adjust.
(Superseded to 530049244)

$3.99

$

In Stock, only 3 left!

0

8

Electrolux/AYP 530054144

Seal-Carb Adapter

$

$

Not available

9

Electrolux/AYP 952030150

Spark Plug (RCJ-7Y)

$3.49

$

In Stock, Qty 20+

0

10

Electrolux/AYP 530016136

Clip-High Tension Lead

$3.99

$

Usually ships in 3-10 days

0

11

Electrolux/AYP 530049117

Assy-Wire Harness

Note: (includes switch)

$

$

Not available

12

Electrolux/AYP 530015814

Screw

$6.49

$

In Stock, Qty 20+

0

13

Electrolux/AYP 530039198

Module-Ignition

$47.99

$

In Stock, Qty 5

0

14

Electrolux/AYP 530047442

Strap-Ground

$3.99

$

Usually ships in 3-10 days

0

15

Electrolux/AYP 530049870

Plate-Muffler Back

$6.49

$

Usually ships in 3-10 days

0

16

Electrolux/AYP 530016132

Screw

$6.49

$

In Stock, Qty 10

0

17

Electrolux/AYP 530036103

Screen-Spark

$

$

Not available

18

Electrolux/AYP 530037813

Muffler Diffuser

$4.99

$

In Stock, only 2 left!

0

19

Electrolux/AYP 530019221

Muffler Gasket

$3.99

$

In Stock, only 1 left!

0

20

Electrolux/AYP 530047207

Muffler Ass’y.
(Superseded to 530071904)

Note: (Incl. 15-19)

$

$

Not available

21

Electrolux/AYP 530047062

Assy-Crankshaft
(Superseded to 545113101)

$72.99

$

Usually ships in 3-10 days

0

22

Electrolux/AYP 530037935

Cap-Crankcase

$10.99

$

Usually ships in 3-10 days

0

23

Electrolux/AYP 530056363

Assy-Seal & Bearing

$18.99

$

In Stock, Qty 7

0

24

Electrolux/AYP 530038729

Ring-Piston
(Superseded to 545160401)

$6.49

$

In Stock, only 3 left!

0

25

Electrolux/AYP 530015697

Retainer - Piston Pin

$6.49

$

In Stock, Qty 6

0

26

Electrolux/AYP 530069719

Kit-Piston

Note: (incl. 24,25)

$

$

Not available

27

Electrolux/AYP 530012552

Cylinder

$

$

Not available

28

Electrolux/AYP 530019249

Gasket - Carb. Adapter

$6.49

$

In Stock, only 2 left!

0

29

Electrolux/AYP 530016187

Screw

$6.49

$

In Stock, only 4 left!

0

30

Electrolux/AYP 530049700

Adapter-Carb.

$7.49

$

In Stock, only 3 left!

0

31

Electrolux/AYP 530016386

Screw

$10.99

$

In Stock, Qty 9

0

32

Electrolux/AYP 530019239

Carb. Gasket
(Superseded to 530019271)

$6.49

$

In Stock, only 2 left!

0

33

Electrolux/AYP 530071621

Kit-Carburetor (WT-625)

$

$

Not available

34

Electrolux/AYP 530047604

Housing-Air Filter

$

$

Not available

35

Electrolux/AYP 530016101

Nut

$6.49

$

In Stock, Qty 8

0

36

Electrolux/AYP 530037793

Air Filter - Foam

$4.99

$

In Stock, Qty 20+

0

37

Electrolux/AYP 530031135

Scrench
(Superseded to 530031163)

$9.99

$

In Stock, Qty 17

0

38

Electrolux/AYP 530069608

Kit-Engine Gasket

Note: (incl. 19,28,32)

$8.99

$

In Stock, Qty 20+

0

38

Electrolux/AYP 530163654

Operator Manual

Note: Not Shown

$

$

Not available

38

Electrolux/AYP 530057267

Instruction Decal

Note: Not Shown

$

$

Not available
