2200 H (26A-024-100) - Cub Cadet Pressure Washer (2001) 6HP Carburetor Parts Diagram

Pressure Washer

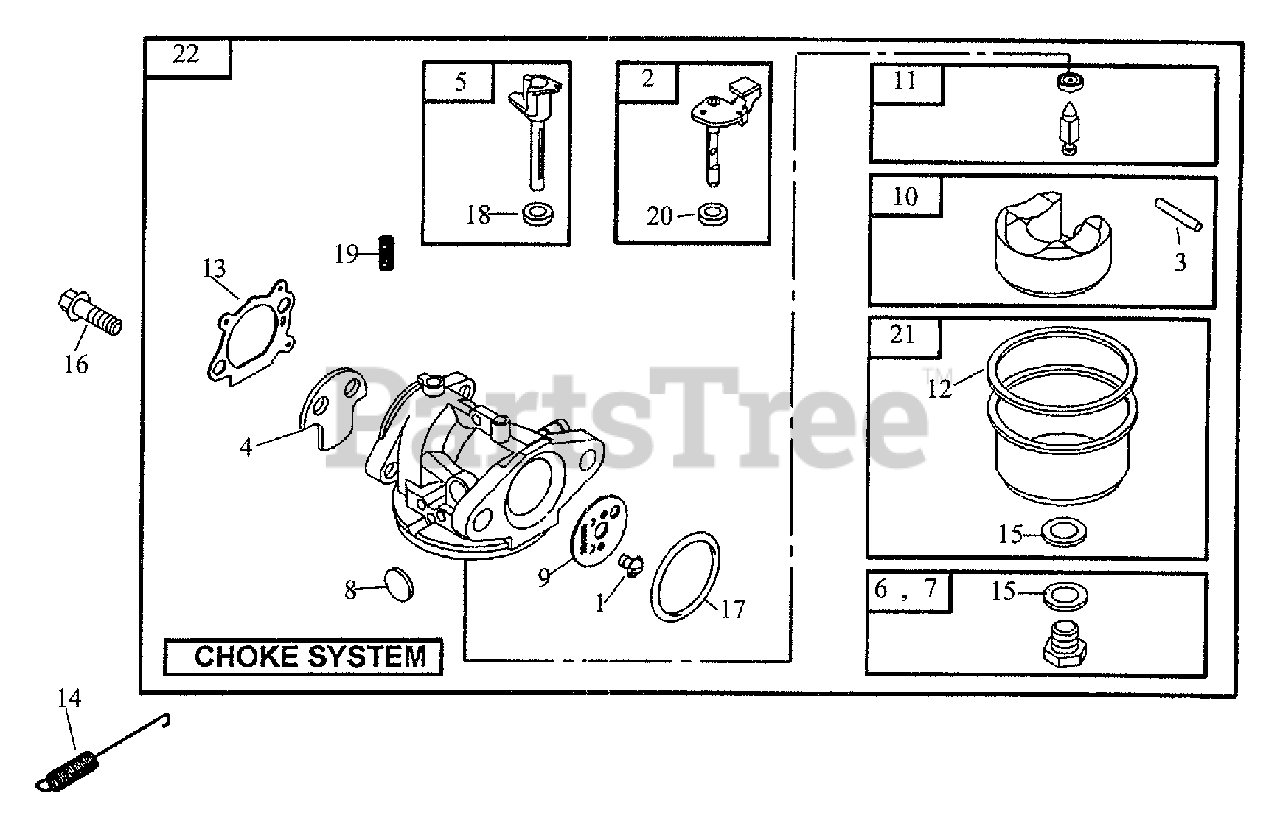

6HP Carburetor Parts Diagram

  • Title

1

Cub Cadet BS-94098

Screw, Throttle Valve
(Superseded to BS-691636)

$3.99

$

In Stock, only 2 left!

0

2

Cub Cadet BS-493267

Shaft, Throttle

$16.99

$

In Stock, only 1 left!

0

3

Cub Cadet BS-691242

Pin, Float Hinge
(Superseded to BS-797622)

$3.99

$

In Stock, only 1 left!

0

4

Cub Cadet BS-691182

Valve, Choke

$9.49

$

Usually ships in 2-12 days

0

5

Cub Cadet BS-498593

Shaft, Choke

$15.99

$

In Stock, only 1 left!

0

6

Cub Cadet BS-498978

Jet, Main Standard

$16.99

$

Usually ships in 2-12 days

0

7

Cub Cadet BS-498975

Jet, Main High Alt.

$19.99

$

In Stock, Qty 5

0

8

Cub Cadet BS-694468

Plug, Welch

$4.49

$

In Stock, Qty 7

0

9

Cub Cadet BS-691203

Valve, Throttle

$9.49

$

In Stock, only 1 left!

0

10

Cub Cadet BS-398187

Float, Carburetor

$9.99

$

In Stock, Qty 8

0

11

Cub Cadet BS-398188

Kit, Needle & Seat

$6.49

$

In Stock, Qty 20+

0

12

Cub Cadet BS-280492

Gasket, Float Bowl
(Superseded to BS-693981)

$3.99

$

In Stock, Qty 20+

0

13

Cub Cadet BS-272653

Gaske, Air Cleaner
(Superseded to BS-795629)

$3.49

$

In Stock, Qty 20+

0

14

Cub Cadet BS-262749

Spring, Return
(Superseded to BS-690354)

$7.49

$

In Stock, only 1 left!

0

15

Cub Cadet BS-271716

Washer, Seal

$6.49

$

In Stock, Qty 20+

0

16

Cub Cadet BS-94840

Screw
(Superseded to BS-692524)

$

$

Not available

17

Cub Cadet BS-270344

Seal- Oring, Intake
(Superseded to BS-270344S)

$3.49

$

In Stock, Qty 20+

0

18

Cub Cadet BS-693867

Seal, Choke Shaft

$4.99

$

In Stock, only 3 left!

0

19

Cub Cadet BS-690572

Spring, Detent
(Superseded to BS-590931)

$5.49

$

In Stock, only 1 left!

0

20

Cub Cadet BS-691321

Seal Throttle Shaft

$4.99

$

In Stock, only 2 left!

0

21

Cub Cadet BS-493640

Bowl, Float
(Superseded to BS-796611)

$6.49

$

In Stock, Qty 18

0

22

Cub Cadet BS-499059

Carburetor

$

$

Not available

$

$

Not available
