22005 - Toro Walk-Behind Mower (SN: 004000001 - 004999999) (1984) ENGINE BRIGGS & STRATTON MODEL NO. 130902 TYPE 1200-01 Parts Diagram

Walk-Behind Mower

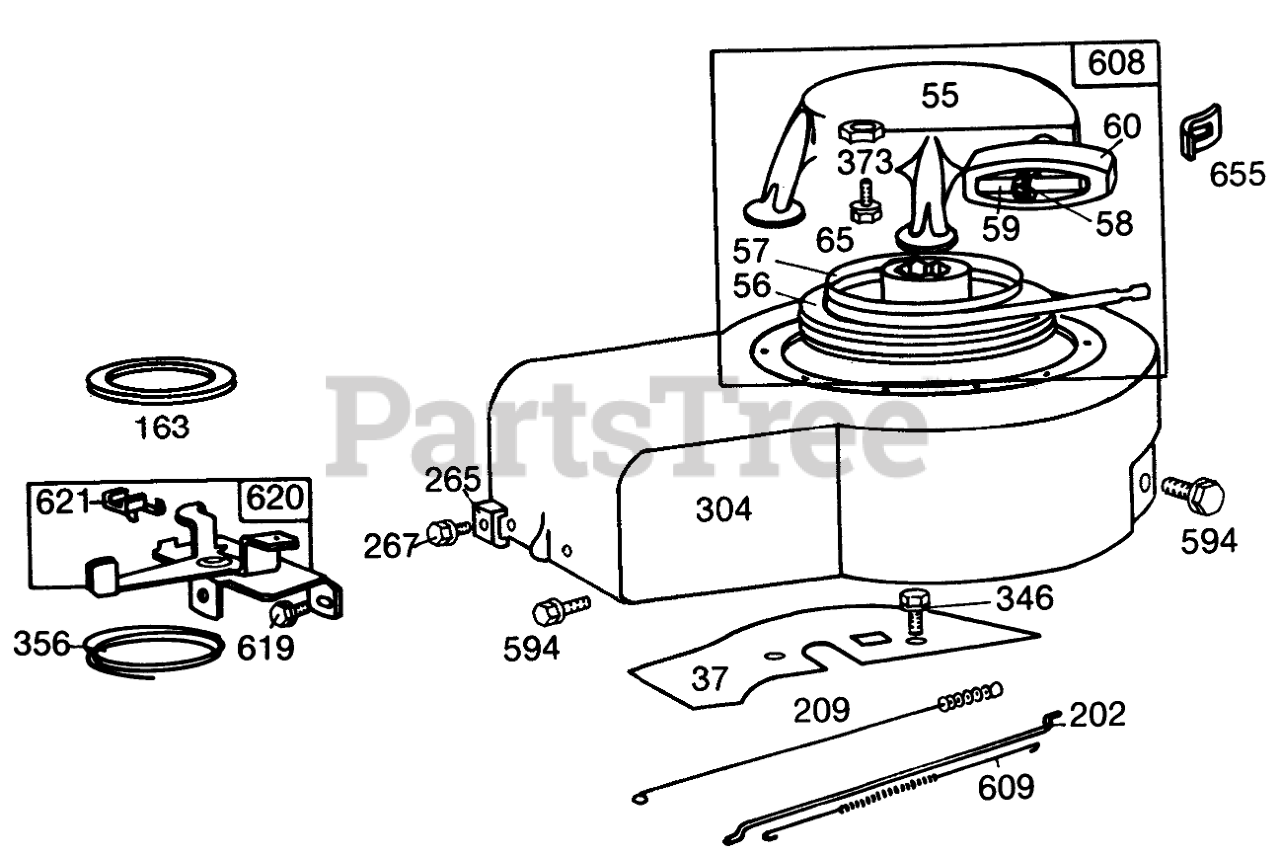

ENGINE BRIGGS & STRATTON MODEL NO. 130902 TYPE 1200-01 Parts Diagram

  • Title

37

Briggs & Stratton 222443

Guard-Flywheel
(Superseded to 691732)

$9.99

$

Usually ships in 2-12 days

0

55

Briggs & Stratton 299431

Housing-Rewind Starter

$

$

Not available

56

Briggs & Stratton 295871

Pulley-Rewind

$14.99

$

In Stock, only 4 left!

0

57

Briggs & Stratton 294303

Spring-Rewind
(Superseded to 490179)

$14.99

$

In Stock, Qty 13

0

58

Briggs & Stratton 66884

Rope-Rewind
(Superseded to 692188)

$8.49

$

In Stock, only 4 left!

0

59

Briggs & Stratton 230228

Pin-Starter Grip
(Superseded to 230228S)

$3.99

$

In Stock, Qty 5

0

60

Briggs & Stratton 66728

Grip-Starter
(Superseded to 490652)

$5.49

$

In Stock, Qty 8

0

65

Briggs & Stratton 93067

Screw
(Superseded to 691082)

$4.99

$

In Stock, only 1 left!

0

163

Briggs & Stratton 271139

Gasket-Air Cleaner
(Superseded to 271139S)

$3.99

$

In Stock, Qty 13

0

202

Briggs & Stratton 260654

Link-Throttle

$

$

Not available

209

Briggs & Stratton 261047

Spring-Gov.

$5.99

$

Usually ships in 2-12 days

0

265

Briggs & Stratton 22372

Clamp-Casing
(Superseded to 692179)

$4.49

$

In Stock, Qty 6

0

267

Briggs & Stratton 93469

Screw
(Superseded to 691044)

$3.99

$

In Stock, Qty 11

0

304

Briggs & Stratton 392277

Housing-Blower

$

$

Not available

346

Briggs & Stratton 93705

Screw
(Superseded to 690661)

$3.49

$

In Stock, Qty 20+

0

356

Briggs & Stratton 298693

Wire-Ground
(Superseded to 398808)

$11.99

$

In Stock, only 1 left!

0

373

Briggs & Stratton 92987

Nut
(Superseded to 690800)

$3.99

$

In Stock, only 3 left!

0

594

Briggs & Stratton 93559

Screw
(Superseded to 690810)

$3.49

$

In Stock, Qty 5

0

608

Briggs & Stratton 390463

Starter-Rewind

$139.99

$

Usually ships in 2-12 days

0

609

Briggs & Stratton 260029

Spring-Throttle Link

$11.99

$

In Stock, only 1 left!

0

619

Briggs & Stratton 93380

Screw-Control Plate Mtg.

$1.99

$

Usually ships in 2-12 days

0

620

Briggs & Stratton 391091

Plate Assy.-Remote Carburetor Control

$36.99

$

Usually ships in 2-12 days

0

621

Briggs & Stratton 297472

Switch-Stop
(Superseded to 297472S)

$

$

Not available

655

Briggs & Stratton 222598

Anchor Spring
(Superseded to 691734)

$4.99

$

Usually ships in 2-12 days

0
