22005 - Toro Walk-Behind Mower (SN: 004000001 - 004999999) (1984) Mower Housing Assembly Parts Diagram

Walk-Behind Mower

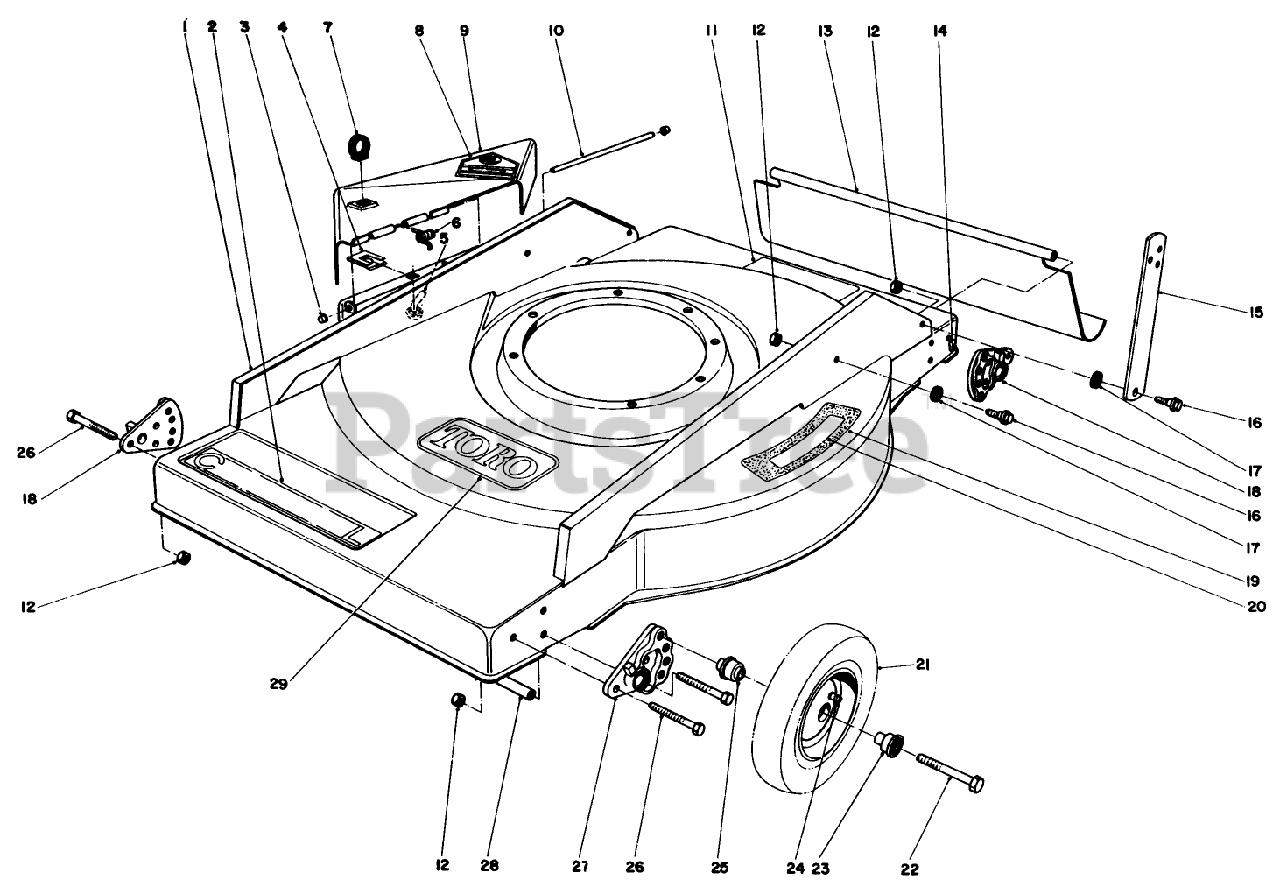

Mower Housing Assembly Parts Diagram

  • Title

1

Toro 11-7079

DISCONTINUED

$

$

Not available

2

Toro 49-9090

DISCONTINUED

$

$

Not available

3

Toro 32112-1

PUSHNUT-CAP, WASHER

$6.49

$

Usually ships in 3-6 days

0

4

Toro 28-3250

BAG CHUTE CLIP PIN

$

$

Not available

5

Toro 28-3260

BAG CHUTE PIN

$

$

Not available

6

Toro 28-1560

DISCONTINUED

$

$

Not available

7

Toro 28-1430

LIFT LOOP

$

$

Not available

8

Toro 39-5770

DECAL-DANGER

$10.99

$

In Stock, Qty 6

0

9

Toro 11-8579

DEFLECTOR/DECALS

$134.99

$

Usually ships in 3-6 days

0

10

Toro 36-6350

DISCONTINUED

$

$

Not available

11

Toro 29-4720

DISCONTINUED

$

$

Not available

12

Toro 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

13

Toro 40-6690

DISCONTINUED

$

$

Not available

14

Toro 33-3204

DISCONTINUED

$

$

Not available

15

Toro 39-5960

DISCONTINUED

$

$

Not available

16

Toro 5-2490

SCREW-SHOULDER

$

$

Not available

17

Toro 27-6510

HANDLE LATCH SPACER

$

$

Not available

18

Toro 49-8910

WHL QUADRANT B-MACH.

$

$

Not available

19

Toro 37-0030

DISCONTINUED

$

$

Not available

20

Toro 36-2820

DISCONTINUED

$

$

Not available

21

Toro 48-2290

See Supercession: 121-1380
(Superseded to 121-1380)

$106.99

$

Usually ships in 3-6 days

0

22

Toro 323-12

SCREW-HH

$2.99

$

In Stock, Qty 7

0

23

Toro 48-2260

DISCONTINUED

$

$

Not available

24

Toro 302-26

FITTING-GREASE

$7.49

$

Usually ships in 3-6 days

0

25

Toro 48-2261

DISCONTINUED

$

$

Not available

26

Toro 322-5

SCREW-HH

$0.99

$

In Stock, Qty 19

0

27

Toro 49-8900

DISCONTINUED

$

$

Not available

28

Toro 40-6710

DISCONTINUED

$

$

Not available

29

Toro 44-0510

See Supercession: 70-2200
(Superseded to 70-2200)

$5.99

$

In Stock, only 2 left!

0
