22005 - Toro Walk-Behind Mower (SN: 004000001 - 004999999) (1984) MOWER HOUSING ASSEMBLY Parts Diagram

Walk-Behind Mower

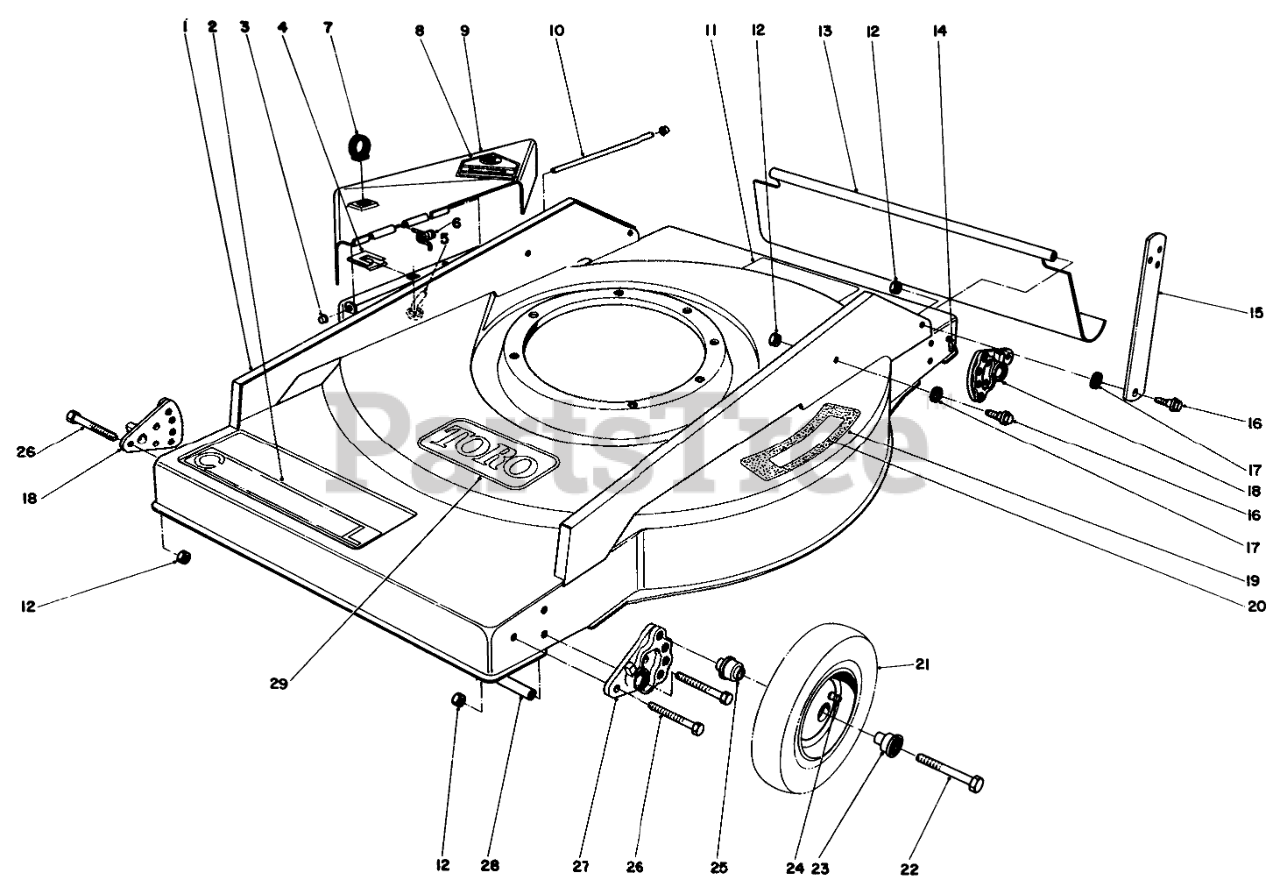

MOWER HOUSING ASSEMBLY Parts Diagram

  • Title

1

Toro 11-7079

Housing (Incl. Ref. #2, 19 & 20)

$

$

Not available

2

Toro 49-9090

COMMERCIAL DECAL

$

$

Not available

3

Toro 32112-1

PUSHNUT-CAP, WASHER

$6.49

$

Usually ships in 3-6 days

0

4

Toro 28-3250

BAG CHUTE CLIP PIN

$

$

Not available

5

Toro 28-3260

BAG CHUTE PIN

$

$

Not available

6

Toro 28-1560

TORSION SPRING

$

$

Not available

7

Toro 28-1430

LIFT LOOP

$

$

Not available

8

Toro 39-5770

DECAL-DANGER

$7.99

$

In Stock, Qty 8

0

9

Toro 11-8579

Deflector (Incl. Ref. #8)

$119.99

$

Usually ships in 3-6 days

0

10

Toro 36-6350

DEFLECTOR PIVOT ROD

$

$

Not available

11

Toro 29-4720

DECAL SAF INST

$

$

Not available

12

Toro 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

13

Toro 40-6690

REAR SAFETY SHIELD

$

$

Not available

14

Toro 33-3204

SHIELD ROD

$

$

Not available

15

Toro 39-5960

Handle Strap

$

$

Not available

16

Toro 5-2490

SCREW-SHOULDER

$9.49

$

Usually ships in 3-6 days

0

17

Toro 27-6510

HANDLE LATCH SPACER

$4.99

$

Usually ships in 3-6 days

0

18

Toro 49-8910

WHL QUADRANT B-MACH.

$

$

Not available

19

Toro 37-0030

PAD STEP

$

$

Not available

20

Toro 36-2820

Decal Step Pad

$

$

Not available

21

Toro 48-2290

Wheel & Tire Assembly (Incl. Ref. #23-25)
(Superseded to 121-1380)

$100.99

$

In Stock, only 4 left!

0

22

Toro 323-12

SCREW-HH

$2.49

$

In Stock, Qty 20+

0

23

Toro 48-2260

WHEEL BRG

$

$

Not available

24

Toro 302-26

FITTING-GREASE

$6.49

$

In Stock, only 1 left!

0

25

Toro 48-2261

WHEEL BEARING

$

$

Not available

26

Toro 322-5

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

27

Toro 49-8900

WHL QUADRANT A-MACH.

$

$

Not available

28

Toro 40-6710

Rod-Tie

$

$

Not available

29

Toro 44-0510

Decal Tow
(Superseded to 70-2200)

$6.49

$

Usually ships in 3-6 days

0
