2201 - Paramount Trimmer, Electric TRIMMER ASSEMBLY Parts Diagram

Trimmer, Electric

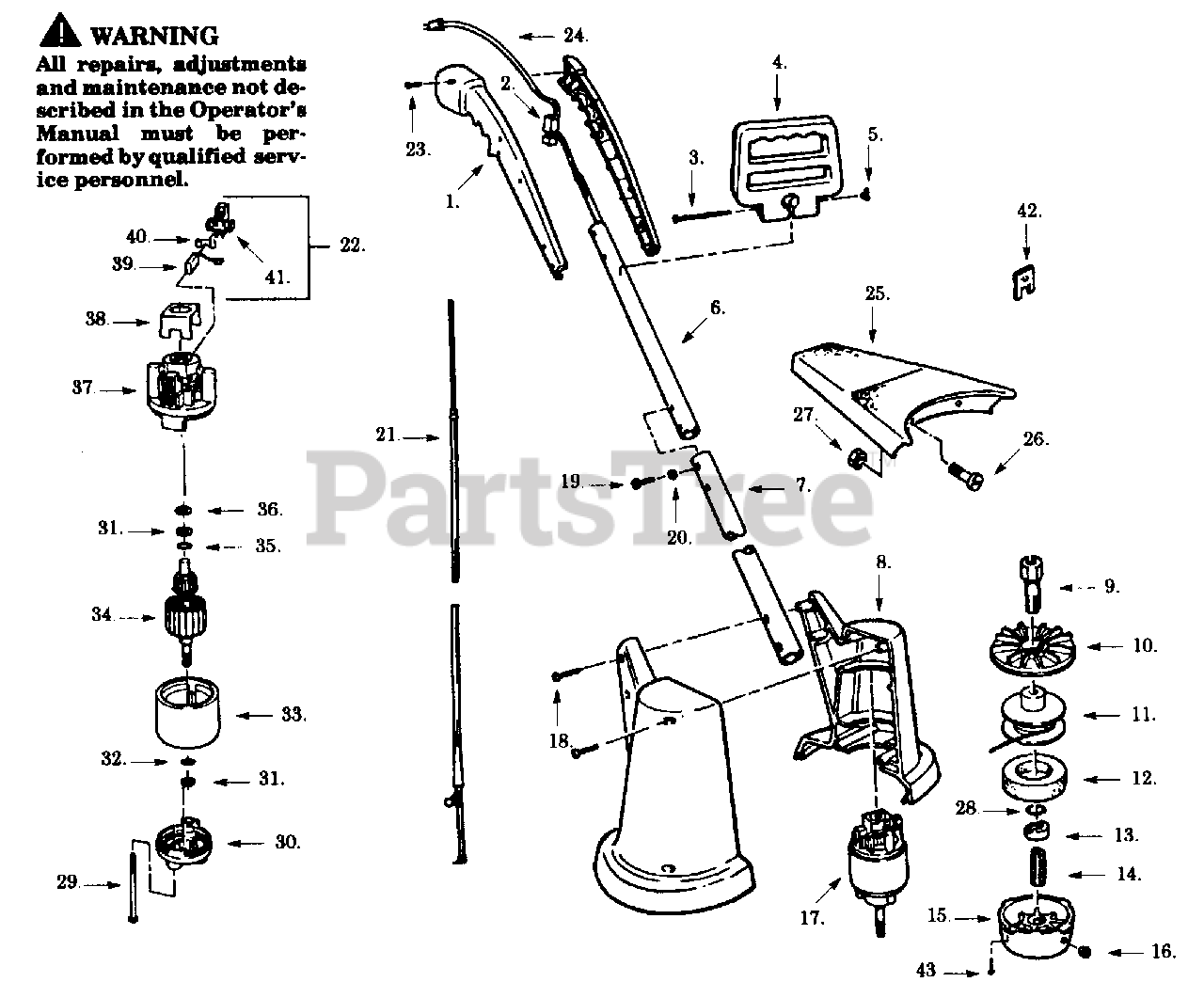

TRIMMER ASSEMBLY Parts Diagram

  • Title

1

Poulan 534192445

R.H./L.H. Handle

$

$

Not available

2

Poulan 534193001

Trigger Switch

$

$

Not available

3

Poulan 534218100

Bolt

$2.49

$

Usually ships in 3-10 days

0

4

Poulan 534282705

Side Handle

$

$

Not available

5

Poulan 534437000

Wing Nut

$

$

Not available

6

Poulan 534222500

Upper Handle Tube

$7.49

$

Usually ships in 3-10 days

0

7

Poulan 534223200

Lower Handle Tube

$

$

Not available

8

Poulan 534288001

R.H./L.H. Housing

$21.99

$

Usually ships in 3-10 days

0

9

Poulan 534223325

Drive Adapter Sleeve

$

$

Not available

10

Poulan 534157305

Rear Plate

$14.99

$

In Stock, only 1 left!

0

11

Poulan 534159705

Spool & Line

$

$

Not available

12

Poulan 534158600

Foam Pad

$

$

Not available

13

Poulan 534156205

Drive Adapter Nut

$

$

Not available

14

Poulan 534157401

Spring

$1.49

$

Usually ships in 3-10 days

0

15

Poulan 534159805

Hub

$

$

Not available

16

Poulan 534157600

Eyelet

$

$

Not available

17

Poulan 534225001

Motor

$

$

Not available

18

Poulan 534222400

Screw

$2.49

$

Usually ships in 3-10 days

0

19

Poulan 534970001

Screw

$

$

Not available

20

Poulan 534713000

Lockwasher

$1.49

$

Usually ships in 3-10 days

0

21

Poulan 534162400

Harness

$21.99

$

Usually ships in 3-10 days

0

22

Poulan 534450400

Brush Kit (Incl. 39-41)

$

$

Not available

23

Poulan 534193800

Screw

$

$

Not available

24

Poulan 534234500

Power Cord

$

$

Not available

25

Poulan 534282405

Tail Guard

$12.99

$

Usually ships in 3-10 days

0

26

Poulan 534136503

Screw

$

$

Not available

27

Poulan 534137002

Lock Nut

$

$

Not available

28

Poulan 534316201

O-Ring

$

$

Not available

29

Poulan 534228700

Screw

$

$

Not available

30

Poulan 534207101

Endbell Output

$

$

Not available

31

Poulan 534228800

Washer

$2.49

$

Usually ships in 3-10 days

0

32

Poulan 534747002

Retainer Ring

$2.49

$

Usually ships in 3-10 days

0

33

Poulan 534227001

Field Ass'y.

$30.99

$

Usually ships in 3-10 days

0

34

Poulan 534225101

Armature

$

$

Not available

35

Poulan 534246700

Retainer Ring

$1.49

$

Usually ships in 3-10 days

0

36

Poulan 534238903

Washer

$

$

Not available

37

Poulan 534227501

Endbell (Brush)

$

$

Not available

38

Poulan 534226000

Insulator

$

$

Not available

39

Poulan 534227800

Brush

$

$

Not available

40

Poulan 534228000

Brush Spring

$

$

Not available

41

Poulan 534227700

Brush Holder

$

$

Not available

42

Poulan 534169900

Spanner Wrench

$2.49

$

Usually ships in 3-10 days

0

43

Poulan 534270300

Cotter Pin

$

$

Not available

44

Poulan 534882990

Operator Manual

Note: Not Shown.

$

$

Not available
