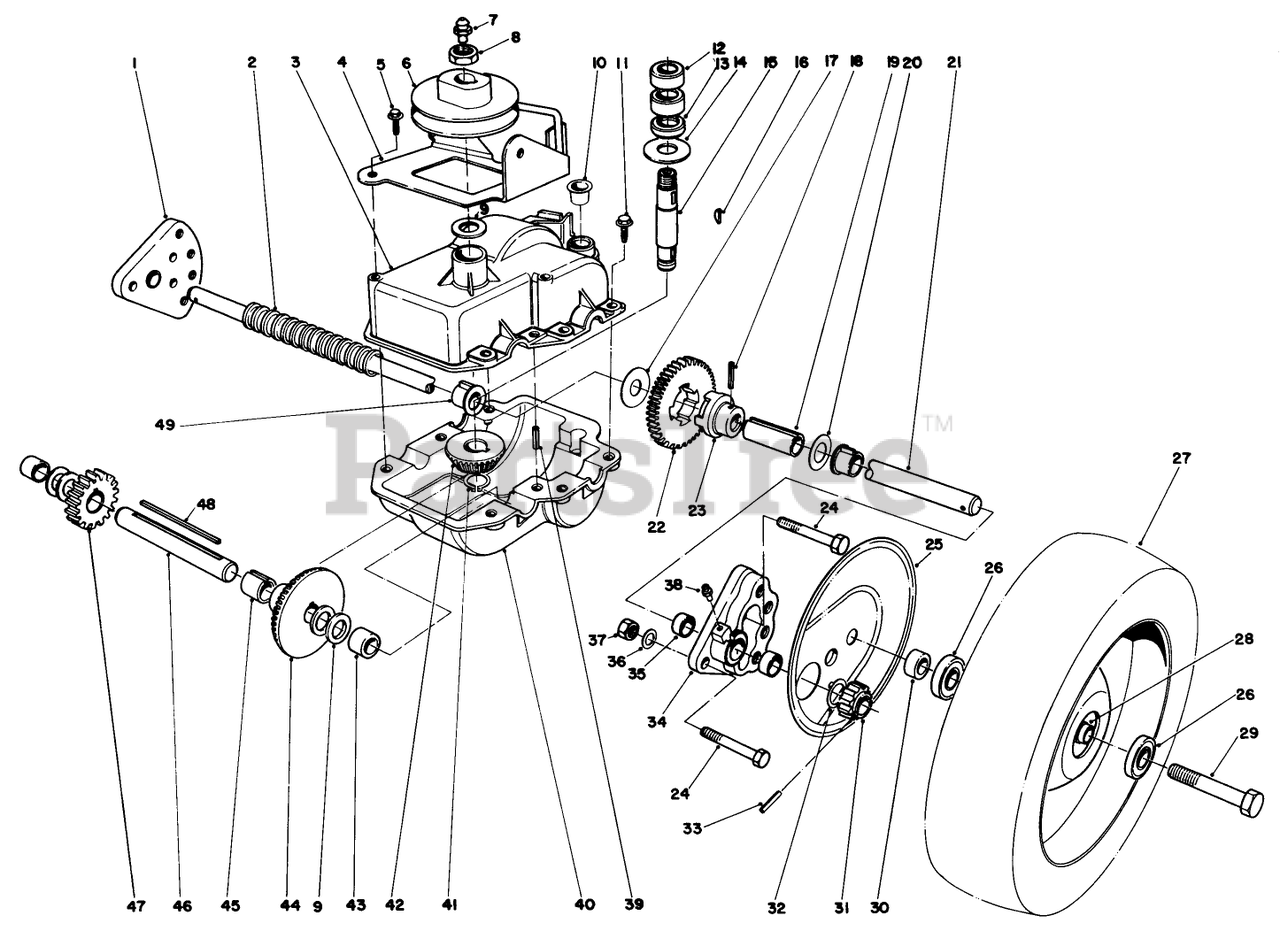

22010 - Toro Walk-Behind Mower (SN: 004000001 - 004999999) (1984) Gear Case Assembly Parts Diagram

Walk-Behind Mower

Gear Case Assembly Parts Diagram

  • Title

1

Toro 49-8950

DISCONTINUED

$

$

Not available

2

Toro 37-9280

DISCONTINUED

$

$

Not available

3

Case-Upper

Note: Order Complete Gear Case Assembly 48-2400.

$

$

Not available

4

Toro 49-9050

DISCONTINUED

$

$

Not available

5

Toro 12-3270

SCREW

$3.99

$

In Stock, Qty 9

0

6

Toro 39-6740

PULLEY

$56.99

$

In Stock, only 2 left!

0

7

Toro 302-5

FITTING-GREASE

$3.49

$

In Stock, Qty 20+

0

8

Toro 3296-5

NUT-HEX

$3.99

$

In Stock, only 4 left!

0

9

Toro 36-4790

WASHER-THRUST

$3.49

$

Usually ships in 3-6 days

0

10

Toro 12-0510

DISCONTINUED

$

$

Not available

11

Toro 49-2040

SCREW-HWHTF

$2.49

$

In Stock, Qty 20+

0

12

Toro 47-7270

BEARING-NEEDLE

$34.99

$

In Stock, only 2 left!

0

13

Toro 47-7260

SEAL

$10.99

$

In Stock, only 2 left!

0

14

Toro 47-2910

WASHER-THRUST

$15.99

$

Usually ships in 3-6 days

0

15

Toro 48-2460

See Supercession: 13-5149
(Superseded to 13-5149)

$109.99

$

Usually ships in 3-6 days

0

16

Toro 3257-1

KEY-WOODRUFF

$2.99

$

In Stock, Qty 14

0

17

Toro 29-9690

WASHER

$

$

Not available

18

Toro 32121-108

PIN-SPIROL

$7.49

$

In Stock, only 1 left!

0

19

Toro 36-9120

DISCONTINUED

$

$

Not available

20

Toro 36-4780

WASHER-PLAIN

$8.49

$

In Stock, Qty 11

0

21

Toro 49-8990

DISCONTINUED

$

$

Not available

22

Toro 29-9260

See Supercession: 14-2009
(Superseded to 14-2009)

$

$

Not available

23

Toro 36-6280

DISCONTINUED

$

$

Not available

24

Toro 322-5

SCREW-HH

$0.99

$

In Stock, Qty 19

0

25

Toro 44-0600

WHEEL COVER

$

$

Not available

26

Toro 52-2460

See Supercession: 121-1380
(Superseded to 121-1380)

$106.99

$

Usually ships in 3-6 days

0

27

Toro 52-2470

See Supercession: 121-1379
(Superseded to 121-1379)

$139.99

$

In Stock, only 2 left!

0

28

Toro 52-2440

SPACER-BEARING

$11.99

$

In Stock, only 3 left!

0

29

Toro 323-12

SCREW-HH

$2.99

$

In Stock, Qty 7

0

30

Toro 52-2480

SPACER-WHEEL

$6.99

$

In Stock, only 3 left!

0

31

Toro 49-8960

PINION GEAR 15T

$

$

Not available

32

Toro 48-2890

THRUST WASHER

$

$

Not available

33

Toro 3283-6

Pin-Groove

$

$

Currently unavailable

34

Toro 49-8940

DISCONTINUED

$

$

Not available

35

Toro 252-104

Bearing-Needle

$

$

Currently unavailable

36

Toro 3256-45

WASHER-FLAT

$0.99

$

In Stock, Qty 10

0

37

Toro 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

38

Toro 302-56

FITTING-GREASE

$5.49

$

In Stock, Qty 11

0

39

Toro 32121-100

ROLL PIN 3/16 X 1 IN

$2.49

$

Usually ships in 3-6 days

0

40

Case-Lower

Note: Order Complete Gear Case Assembly 48-2400.

$

$

Not available

41

Toro 32151-57

RING-RETAINING

$5.49

$

In Stock, only 3 left!

0

42

Toro 39-6660

PINION-BEVEL

$44.99

$

In Stock, only 1 left!

0

43

Toro 252-103

BEARING-NEEDLE, CLOSED

$27.99

$

In Stock, only 2 left!

0

44

Toro 39-6670

DISCONTINUED

$

$

Not available

45

Toro 36-9130

DISCONTINUED

$

$

Not available

46

Toro 48-2520

See Supercession: 53-7950
(Superseded to 53-7950)

$61.99

$

In Stock, only 1 left!

0

47

Toro 39-6640

DISCONTINUED

$

$

Not available

48

Toro 39-7841

See Supercession: 39-7843
(Superseded to 39-7843)

$

$

Not available

49

Toro 48-2450

BUSHING

$20.99

$

Usually ships in 3-6 days

0

Toro 48-2400

DISCONTINUED

Note: Not illustrated

$

$

Not available
