22010 - Toro Walk-Behind Mower (SN: 004000001 - 004999999) (1984) GEAR CASE ASSEMBLY Parts Diagram

Walk-Behind Mower

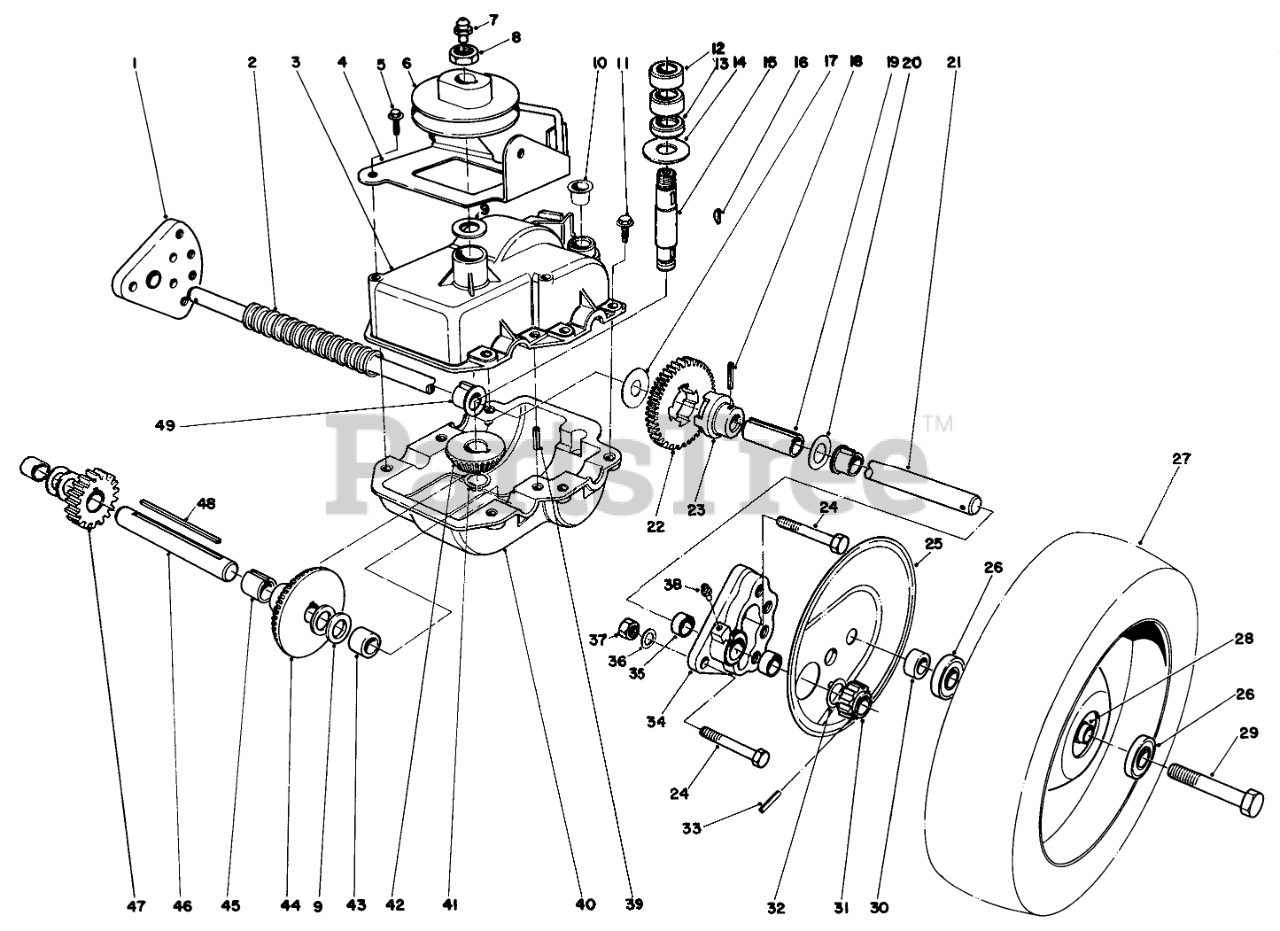

GEAR CASE ASSEMBLY Parts Diagram

  • Title
1

Toro Part# 49-8950

Wheel Quadrant Assembly "B" (Incl. Ref. #35 & 37)
Usually ships same day

Not available

$

$

2

Toro Part# 37-9280

Cover-Drive Shaft
Usually ships same day

Not available

$

$

3

Part#

Case-Upper

Note: Order Complete Gear Case Assembly 48-2400.

Usually ships same day

Not available

$

$

4

Toro Part# 49-9050

BELT GUIDE BRKT WA
Usually ships same day

Not available

$

$

Usually ships in 1 day

$

$2.90

0

Usually ships in 1 day

$

$45.83

0

7

Toro Part# 302-5

FITTING-GREASE
Usually ships in 1 day

$

$2.81

0

8
Usually ships in 1 day

$

$2.90

0

9

Toro Part# 36-4790

WASHER-THRUST
Usually ships in 5 to 8 days

$

$2.24

0

10
Usually ships same day

Not available

$

$

11

Toro Part# 49-2040

SCREW-HWHTF
Usually ships in 1 day

$

$1.67

0

12

Toro Part# 47-7270

BEARING-NEEDLE
Usually ships in 1 day

$

$24.59

0

Usually ships in 1 day

$

$6.65

0

14

Toro Part# 47-2910

WASHER-THRUST
Usually ships in 5 to 8 days

$

$10.98

0

15

Toro Part# 48-2460

Shaft Input
(Superseded to 13-5149)
Usually ships in 5 to 8 days

$

$58.13

0

16

Toro Part# 3257-1

KEY-WOODRUFF
Usually ships in 1 day

$

$1.61

0

17
Usually ships in 5 to 8 days

$

$10.05

0

18
Usually ships in 5 to 8 days

$

$5.52

0

19

Toro Part# 36-9120

Spacer-Output Shaft
Usually ships same day

Not available

$

$

20

Toro Part# 36-4780

WASHER-PLAIN
Usually ships in 1 day

$

$5.86

0

21

Toro Part# 49-8990

Shaft-Output
Usually ships same day

Not available

$

$

22

Toro Part# 29-9260

Gear
(Superseded to 14-2009)
Usually ships same day

Not available

$

$

23

Toro Part# 36-6280

ADAPTER DRIVE
Usually ships same day

Not available

$

$

24

Toro Part# 322-5

SCREW-HH
Usually ships in 1 day

$

$0.47

0

25

Toro Part# 44-0600

WHEEL COVER
Usually ships same day

Not available

$

$

26

Toro Part# 52-2460

Bearing-Flanged
(Superseded to 121-1380)
Usually ships in 1 day

$

$70.42

0

27

Toro Part# 52-2470

Wheel & Tire Assembly (Incl. Ref. #26)
(Superseded to 121-1379)
Usually ships in 1 day

$

$100.55

0

28

Toro Part# 52-2440

SPACER-BEARING
Usually ships in 1 day

$

$7.38

0

29
Usually ships in 1 day

$

$2.24

0

30

Toro Part# 52-2480

SPACER-WHEEL
Usually ships in 1 day

$

$5.58

0

31

Toro Part# 49-8960

PINION GEAR 15T
Usually ships same day

Not available

$

$

32

Toro Part# 48-2890

THRUST WASHER
Usually ships in 5 to 8 days

$

$13.39

0

33

Toro Part# 3283-6

Pin-Groove
Usually ships same day

Currently unavailable

$

$

34

Toro Part# 49-8940

Wheel Quadrant "A" (Incl. Ref. #35 & 37)
Usually ships same day

Not available

$

$

35

Toro Part# 252-104

Bearing-Needle
Usually ships same day

Currently unavailable

$

$

36

Toro Part# 3256-45

WASHER-FLAT
Usually ships in 1 day

$

$0.47

0

37

Toro Part# 3296-29

NUT-LOCK, NI
Usually ships in 1 day

$

$2.00

0

38

Toro Part# 302-56

FITTING-GREASE
Usually ships in 1 day

$

$3.27

0

39

Toro Part# 32121-100

ROLL PIN 3/16 X 1 IN
Usually ships in 5 to 8 days

$

$1.39

0

40

Part#

Case-Lower

Note: Order Complete Gear Case Assembly 48-2400.

Usually ships same day

Not available

$

$

41

Toro Part# 32151-57

RING-RETAINING
Usually ships in 5 to 8 days

$

$2.94

0

42

Toro Part# 39-6660

PINION-BEVEL
Usually ships in 5 to 8 days

$

$32.13

0

43

Toro Part# 252-103

BEARING-NEEDLE, CLOSED
Usually ships in 1 day

$

$20.11

0

44

Toro Part# 39-6670

BEVEL GEAR
Usually ships same day

Not available

$

$

45

Toro Part# 36-9130

Spacer-Short Shaft
Usually ships same day

Not available

$

$

46

Toro Part# 48-2520

Shaft-Intermediate
(Superseded to 53-7950)
Usually ships in 1 day

$

$43.22

0

47

Toro Part# 39-6640

16 T GEAR
Usually ships same day

Not available

$

$

48

Toro Part# 39-7841

Key Square
(Superseded to 39-7843)
Usually ships same day

Not available

$

$

49
Usually ships in 5 to 8 days

$

$12.89

0

Toro Part# 48-2400

Gear Case Assy. Complete (Incl. Ref. #3-23 & 39-49)

Note: Not illustrated

Usually ships same day

Not available

$

$
