22010 - Toro Walk-Behind Mower (SN: 004000001 - 004999999) (1984) MOWER HOUSING ASSEMBLY Parts Diagram

Walk-Behind Mower

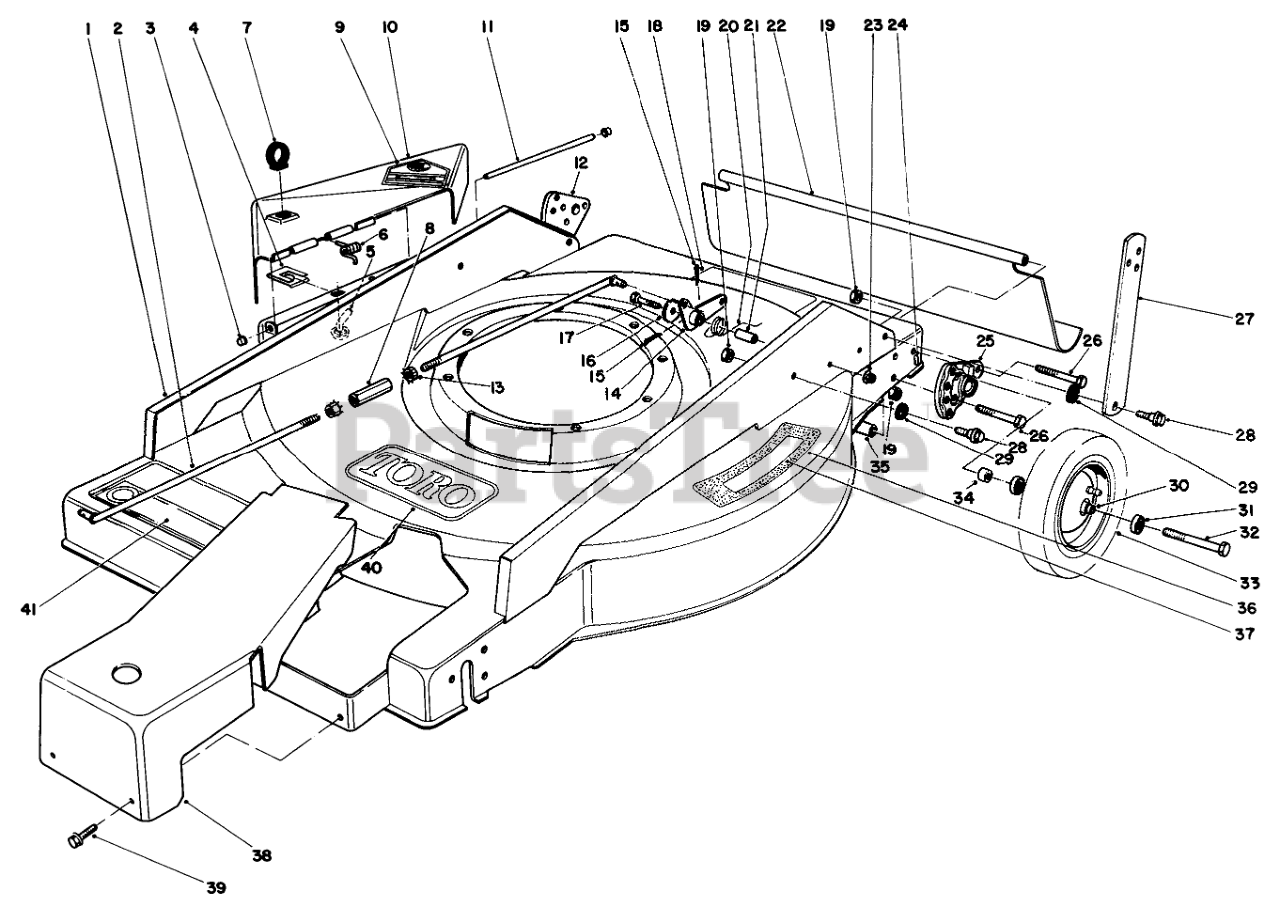

MOWER HOUSING ASSEMBLY Parts Diagram

  • Title
1

Toro Part# 11-7069

Housing (Incl. Ref. #36, 37 & 41)
Usually ships same day

Not available

$

$

2

Toro Part# 36-9150

Link Control Rod
Usually ships same day

Not available

$

$

3

Toro Part# 32112-1

PUSHNUT-CAP, WASHER
Usually ships in 5 to 8 days

$

$4.92

0

4

Toro Part# 28-3250

BAG CHUTE CLIP PIN
Usually ships in 5 to 8 days

$

$5.79

0

5

Toro Part# 28-3260

BAG CHUTE PIN
Usually ships in 5 to 8 days

$

$5.47

0

6

Toro Part# 28-1560

TORSION SPRING
Usually ships same day

Not available

$

$

7

Toro Part# 28-1430

LIFT LOOP
Usually ships in 5 to 8 days

$

$3.62

0

8

Toro Part# 3-6481

CONTROL ROD SLEEVE
Usually ships same day

Not available

$

$

9

Toro Part# 39-5770

DECAL-DANGER
Usually ships in 1 day

$

$6.35

0

10

Toro Part# 11-8579

Deflector (Incl. Ref. #9)
Usually ships in 5 to 8 days

$

$92.65

0

11

Toro Part# 36-6350

DEFLECTOR PIVOT ROD
Usually ships same day

Not available

$

$

12

Toro Part# 49-8900

WHL QUADRANT A-MACH.
Usually ships same day

Not available

$

$

13
Usually ships in 1 day

$

$4.82

0

14

Toro Part# 36-9180

Bell Crank
Usually ships same day

Not available

$

$

15

Toro Part# 3272-5

PIN-COTTER
Usually ships in 1 day

$

$1.11

0

16

Toro Part# 3256-55

WASHER-FLAT
Usually ships in 1 day

$

$3.30

0

17

Toro Part# 321-8

SCREW-HH
Usually ships in 1 day

$

$3.46

0

18

Toro Part# 29-4720

DECAL SAF INST
Usually ships same day

Not available

$

$

19

Toro Part# 3296-29

NUT-LOCK, NI
Usually ships in 1 day

$

$2.00

0

20

Toro Part# 38-7750

TORSION SPRING
Usually ships same day

Not available

$

$

21
Usually ships same day

Not available

$

$

22

Toro Part# 40-6690

REAR SAFETY SHIELD
Usually ships same day

Not available

$

$

23

Toro Part# 32128-10

NUT-LOCK, HHF
Usually ships in 1 day

$

$4.03

0

24

Toro Part# 33-3204

SHIELD ROD
Usually ships same day

Not available

$

$

25

Toro Part# 49-8910

WHL QUADRANT B-MACH.
Usually ships same day

Not available

$

$

26

Toro Part# 322-5

SCREW-HH
Usually ships in 1 day

$

$0.47

0

27

Toro Part# 39-5960

Handle Strap
Usually ships same day

Not available

$

$

28

Toro Part# 5-2490

SCREW-SHOULDER
Usually ships in 5 to 8 days

$

$7.68

0

29

Toro Part# 27-6510

HANDLE LATCH SPACER
Usually ships in 5 to 8 days

$

$3.66

0

30

Toro Part# 52-2440

SPACER-BEARING
Usually ships in 1 day

$

$7.38

0

31

Toro Part# 52-2450

BEARING-WHEEL
Usually ships in 1 day

$

$15.64

0

32
Usually ships in 1 day

$

$2.24

0

33

Toro Part# 52-2460

Wheel & Tire Assembly (Incl. Ref. #30 & 31)
(Superseded to 121-1380)
Usually ships in 1 day

$

$70.42

0

34

Toro Part# 52-2480

SPACER-WHEEL
Usually ships in 1 day

$

$5.58

0

35
Usually ships same day

Not available

$

$

36
Usually ships same day

Not available

$

$

37

Toro Part# 36-2820

Decal Step Pad
Usually ships same day

Not available

$

$

38

Toro Part# 49-9110

BELT COVER-MODIFIED
Usually ships same day

Not available

$

$

Usually ships in 1 day

$

$7.03

0

40

Toro Part# 44-0510

Decal Tow
(Superseded to 70-2200)
Usually ships in 5 to 8 days

$

$5.22

0

41

Toro Part# 49-9090

COMMERCIAL DECAL
Usually ships same day

Not available

$

$
