22010 - Toro Walk-Behind Mower (SN: 004000001 - 004999999) (1984) REMOTE FUEL TANK KIT NO. 39-6880 (OPTIONAL) Parts Diagram

Walk-Behind Mower

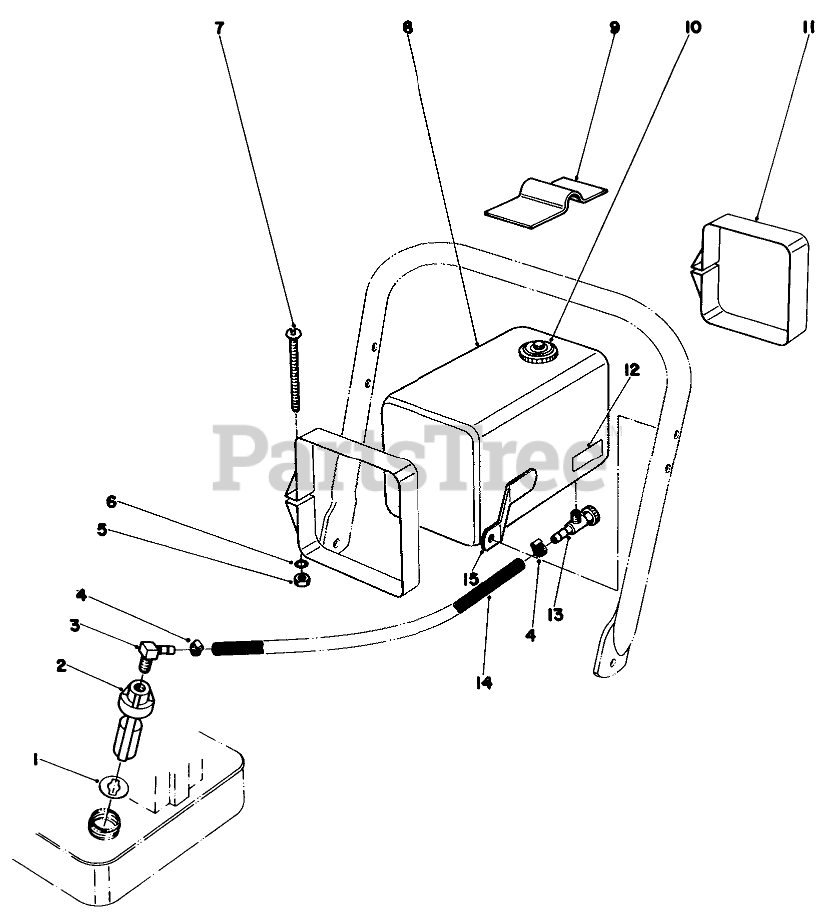

REMOTE FUEL TANK KIT NO. 39-6880 (OPTIONAL) Parts Diagram

  • Title
Usually ships same day

Not available

$

$

2

Toro Part# 28-4840

Fuel Control valve (Incl. Ref. #1)
Usually ships same day

Not available

$

$

3

Toro Part# 304-75

CONNECTOR-HOSE
Usually ships in 5 to 8 days

$

$8.07

0

4

Toro Part# 2412-36

CLAMP-HOSE
Usually ships in 5 to 8 days

$

$1.79

0

5
Usually ships in 1 day

$

$0.64

0

6

Toro Part# 3253-3

WASHER-LOCK
Usually ships in 1 day

$

$0.12

0

7

Toro Part# 3250-21

Screw
(Superseded to 3274-56)
Usually ships in 5 to 8 days

$

$5.51

0

8

Toro Part# 222-14

Fuel Tank (Incl Ref #10)
(Superseded to 52-2331)
Usually ships in 5 to 8 days

$

$292.67

0

9

Toro Part# 39-6960

TANK BRKT
Usually ships same day

Not available

$

$

Usually ships same day

Not available

$

$

11

Toro Part# 39-0570

TANK STRAP WA
Usually ships in 5 to 8 days

$

$95.36

0

12

Toro Part# 28-6910

Decal-Caution
Usually ships same day

Not available

$

$

13

Toro Part# 304-71

.125 ID SHUTOFF VALVE
Usually ships same day

Not available

$

$

14

Toro Part# 39-6930

FUEL LINE
Usually ships same day

Not available

$

$

15

Toro Part# 39-5940

Brace-Tank
Usually ships same day

Not available

$

$
