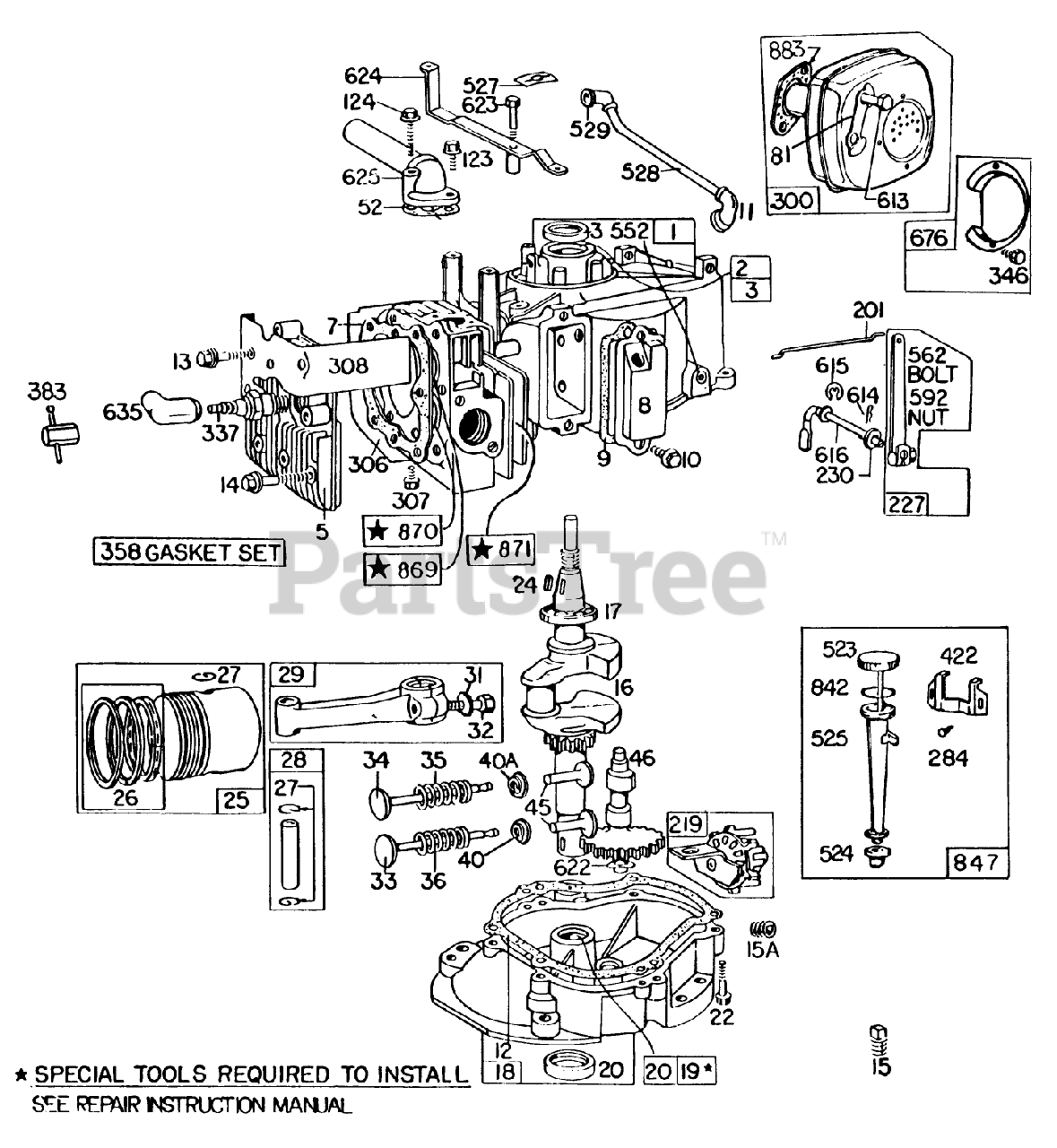

22020 - Toro Walk-Behind Mower (SN: 003000001 - 003999999) (1983) Engine Briggs Stratton Model 131922-0163-01 2 Parts Diagram

Walk-Behind Mower

Engine Briggs Stratton Model 131922-0163-01 2 Parts Diagram

  • Title

1

Toro 393885

Cylinder Assembly

$

$

Currently unavailable

2

Toro 297565

Bushing-Cylinder

$

$

Currently unavailable

3

Toro 299819

Seal-Oil

$

$

Currently unavailable

5

Toro 211542

Head-Cylinder

$

$

Currently unavailable

7

Toro 270383

Gasket-Cylinder Head

Note: Included in Gasket Set-Part No. 297616.

$

$

Currently unavailable

8

Toro 297261

Breather-Valve Chamber

$

$

Currently unavailable

9

Toro 27549

Gasket Breather

Note: Included in Gasket Set-Part No. 297616.

$

$

Currently unavailable

10

Toro 93394

Screw

$

$

Currently unavailable

11

Toro 67738

Grommet-Breather

$

$

Currently unavailable

12

Toro 270069

Gasket-Crankcase.015" Thick (Std.)

Note: Included in Gasket Set-Part No. 297616.

$

$

Currently unavailable

12

Toro 270122

Gasket-Crankcase-.005" thick

Note: Included in Gasket Set-Part No. 297616.

$

$

Currently unavailable

12

Toro 270123

Gasket-Crankcase-.009" thick

Note: Included in Gasket Set-Part No. 297616.

$

$

Currently unavailable

13

Toro 93368

Screw-Cylinder Head

$

$

Currently unavailable

14

Toro 93369

Screw-Cylinder Head

$

$

Currently unavailable

15

Toro 91084

Plug-Pipe

$

$

Currently unavailable

15A

Toro 93418

Plug

$

$

Currently unavailable

16

Toro 396728

Crankshaft

$

$

Currently unavailable

17

Toro 99157

Bearing-Ball

$

$

Currently unavailable

18

Toro 390575

Sump-Oil

$

$

Currently unavailable

19

Toro 297604

Bushing-Oil Sump

$

$

Currently unavailable

20

Toro 391485

Seal-Oil

$

$

Currently unavailable

22

Toro 93032

Screw

$

$

Currently unavailable

24

Toro 222698

Key

$

$

Currently unavailable

25

Toro 393819

Piston Assembly-Standard

$

$

Currently unavailable

25

Toro 393820

Piston Assembly-.010" O.S.

$

$

Currently unavailable

25

Toro 393821

Piston Assembly-.020" O.S.

$

$

Currently unavailable

25

Toro 393822

Piston Assembly-.030" O.S.

$

$

Currently unavailable

26

Toro 393835

Ring Set-Std. Piston

Note: For Chrome Piston Ring Set-Standard Size-Order Part No. 299742. 1131922-0163-01

$

$

Currently unavailable

26

Toro 393836

Ring Set-.010" O.S. Piston

Note: For Chrome Piston Ring Set-Standard Size-Order Part No. 299742. 1131922-0163-01

$

$

Currently unavailable

26

Toro 393837

Ring Set-.020" O.S. Piston

Note: For Chrome Piston Ring Set-Standard Size-Order Part No. 299742. 1131922-0163-01

$

$

Currently unavailable

26

Toro 393838

Ring Set-.030" O.S. Piston

Note: For Chrome Piston Ring Set-Standard Size-Order Part No. 299742. 1131922-0163-01

$

$

Currently unavailable

27

Toro 26026

Iock-Piston Pin

$

$

Currently unavailable

28

Toro 298909

Pin Ass-y-Piston

$

$

Currently unavailable

28

Toro 298908

Pin-Piston (.005 Undersize)

$

$

Currently unavailable

29

Toro 299429

Rod Assy.-Connecting

$

$

Currently unavailable

31

Toro 222282

DISCONTINUED

$

$

Not available

32

Toro 92296

Screw, Conn.Rod

$

$

Currently unavailable

33

Toro 260860

Valve-Exhaust

$

$

Currently unavailable

34

Toro 261044

Valve-Intake

$

$

Currently unavailable

35

Toro 260552

Spring-Valve

$

$

Currently unavailable

36

Toro 26826

Spring-Exhaust Valve

$

$

Currently unavailable

40

Toro 292259

Rotocap-Exhaust Valve

$

$

Currently unavailable

40A

Toro 93312

Gear-Cam

$

$

Currently unavailable

45

Toro 260642

Tappet-Valve

$

$

Currently unavailable

46

Toro 211117

Gear Cam

$

$

Currently unavailable

52

Toro 270070

Gasket-Intake Elbow Mtg.

Note: Included in Gasket Set-Part No. 297616.

$

$

Currently unavailable

81

Toro 222263

Lockplate

$

$

Currently unavailable

123

Toro 93512

Screw Elbow Mtg.

$

$

Currently unavailable

124

Toro 93367

Screw-Intake EIbow Mtg.

$

$

Currently unavailable

201

Toro 260649

Link-Govemor

$

$

Currently unavailable

219

Toro 297249

Oil Slinger Gear, Gov. Bracket

$

$

Currently unavailable

227

Toro 391967

Lever Assy.-Governor

$

$

Currently unavailable

230

Toro 222450

DISCONTINUE-DESA

$

$

Not available

284

Toro 93410

Screw

$

$

Currently unavailable

300

Toro 393615

Muffler

$

$

Currently unavailable

306

Toro 221484

Shield-Cylinder

$

$

Currently unavailable

307

Toro 93042

Screw

$

$

Currently unavailable

308

Toro 221452

Cover-Cylinder Head

$

$

Currently unavailable

337

Toro 293918

Plug-Spark

$

$

Currently unavailable

346

Toro 93705

Screw

$

$

Currently unavailable

358

Toro 297616

Gasket Set

$

$

Currently unavailable

383

Toro 89838

Wrench-Plug, Spark

$

$

Currently unavailable

422

Toro 222576

Clamp-Oil Filler Tube

$

$

Currently unavailable

523

Toro 391840

Cap with Dipstick

$

$

Currently unavailable

524

Toro 68838

Seal-Fill Tube

$

$

Currently unavailable

525

Toro 280133

Tube-Oil Fill

$

$

Currently unavailable

527

Toro 93376

Dip-Breather Pipe

$

$

Currently unavailable

528

Toro 230717

55323 REVISED PARTS

$3.23

$

Usually ships in 3-6 days

0

529

Toro 67608

Grommet-Breather Tube

$

$

Currently unavailable

552

Toro 231078

Bushing-Governor Shaft

$

$

Currently unavailable

562

Toro 92613

Bolt

$

$

Currently unavailable

592

Toro 231082

Nut (Governor Control Lever)

$

$

Currently unavailable

613

Toro 93935

Screw

$

$

Currently unavailable

614

Toro 93306

Pin-Cotter

$

$

Currently unavailable

615

Toro 93307

Retainer-Ring

$

$

Currently unavailable

616

Toro 231076

Crank-Governor

$

$

Currently unavailable

622

Toro 260676

Washer-Spring (Used between cam gear box and oil slingerbracket)

$

$

Currently unavailable

623

Toro 93838

Screw-Shoulder

$

$

Currently unavailable

624

Toro 297252

Lever-Linkage

$

$

Currently unavailable

625

Toro 297254

Elbow and Tube-Intake

$

$

Currently unavailable

635

Toro 66538

Boot-Plug, Spark

$

$

Currently unavailable

676

Toro 393757

Deflector-Exhaust

$

$

Currently unavailable

842

Toro 270920

O-Ring

$

$

Currently unavailable

847

Toro 392066

Fill Group-Oil

$

$

Currently unavailable

869

Toro 211787

Seat-Int. Valve

$

$

Currently unavailable

870

Toro 211436

Seat-Exhaust Valve (STELLITE?)

$

$

Currently unavailable

871

Toro 63709

Bushing-Guide

$

$

Currently unavailable

883

Toro 270918

Gasket-Exhaust

$

$

Currently unavailable
