22020 - Toro Walk-Behind Mower (SN: 003000001 - 003999999) (1983) HOUSING ASSEMBLY (MODEL 22020) Parts Diagram

Walk-Behind Mower

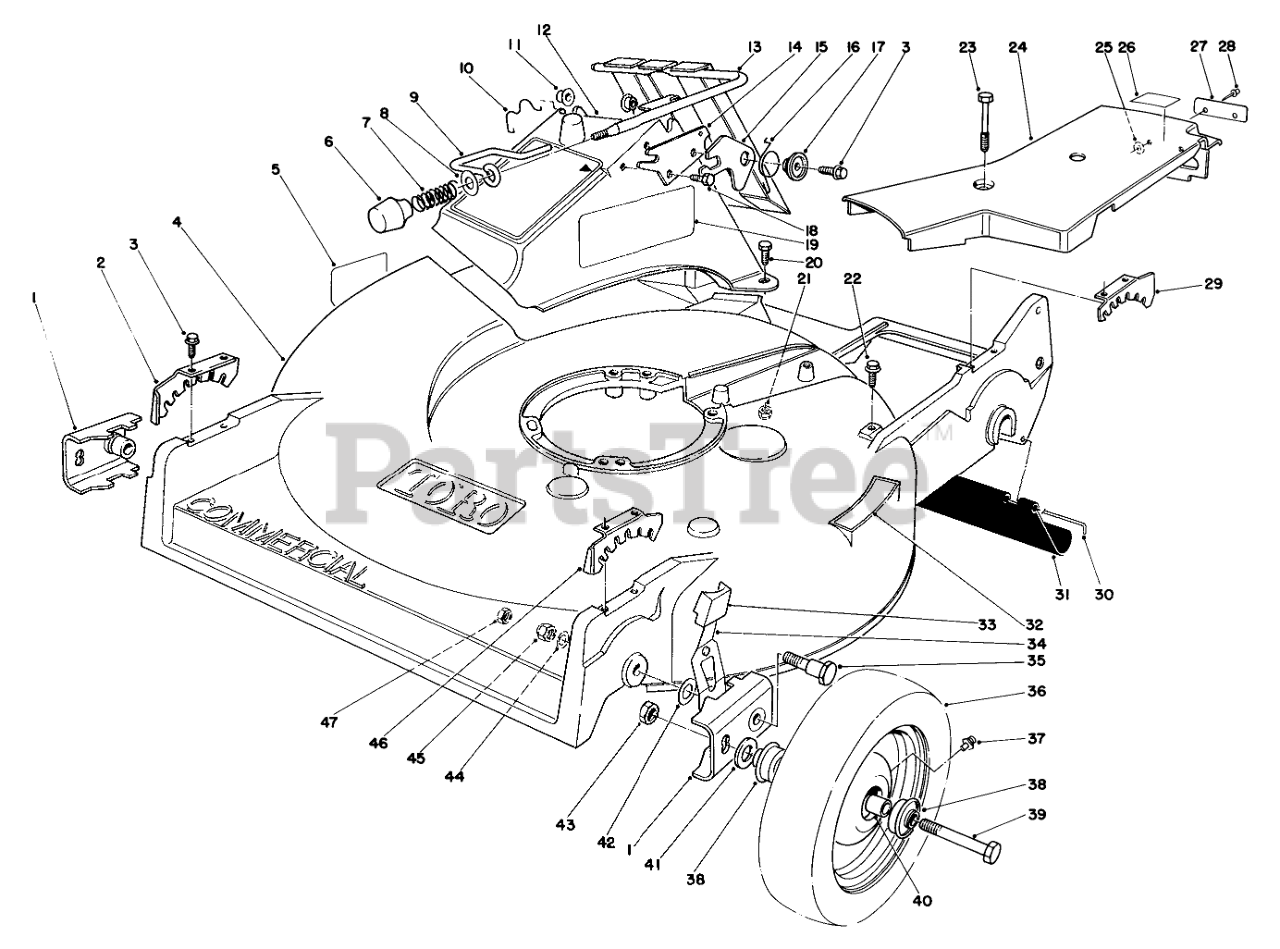

HOUSING ASSEMBLY (MODEL 22020) Parts Diagram

  • Title

1

Toro 48-2320

PIVOT ARM ASM

$

$

Not available

2

Toro 48-2660

RH QUADRANT

$

$

Not available

3

Toro 11-9760

Screw
(Superseded to 49-2040)

$2.49

$

In Stock, Qty 20+

0

4

Toro 48-2760

Housing
(Superseded to 11-7859)

$

$

Not available

5

Toro 39-5770

DECAL-DANGER

$7.99

$

In Stock, Qty 8

0

6

Toro 233-37

KNOB

$31.99

$

Usually ships in 3-6 days

0

7

Toro 23-0920

COMPRESSION SPRING

$8.99

$

Usually ships in 3-6 days

0

8

Toro 3256-25

WASHER-FLAT

$0.99

$

In Stock, Qty 10

0

9

Toro 23-0940

DOOR LATCH

$

$

Not available

10

Toro 33-4830

DOOR RETAINER

$

$

Not available

11

Toro 23-0880

BUSHING-NYLON

$

$

Not available

12

Toro 11-5639

Chute & Door Assembly (Incl. Ref. #3, 6-11 & 13-21)

$

$

Not available

13

Toro 33-5660

DOOR & HANDLE WA

$

$

Not available

14

Toro 23-1040

DOOR LATCH PLATE

$

$

Not available

15

Toro 42-4010

SAFETY LATCH

$

$

Not available

16

Toro 33-4860

TORSION SPRING

$69.99

$

Usually ships in 3-6 days

0

17

Toro 43-4840

DOOR SPACER

$7.49

$

Usually ships in 3-6 days

0

18

Toro 32104-17

SCREW-HWH

$1.49

$

In Stock, only 4 left!

0

19

Toro 29-4720

DECAL SAF INST

$

$

Not available

20

Toro 321-7

SCREW-HH

$5.49

$

In Stock, only 4 left!

0

21

Toro 3296-42

NUT-LOCK, NI

$0.99

$

In Stock, Qty 20+

0

22

Toro 32144-11

SCREW-HWHTF

$7.99

$

In Stock, Qty 8

0

23

Toro 37-7260

SCREW-HHFTF

$6.49

$

In Stock, Qty 6

0

24

Toro 48-2770

Belt Cover Assembly (Incl. Ref. #25, 27 & 28)

$

$

Not available

25

Toro 3256-49

WASHER-PLAIN

$0.99

$

In Stock, Qty 8

0

26

Toro 48-2680

Label-Grease
(Superseded to 119-7894)

$2.49

$

In Stock, only 4 left!

0

27

Toro 48-2790

NAMEPLATE-GRD SPEED

$

$

Not available

28

Toro 3290-409

RIVET

$0.99

$

Usually ships in 3-6 days

0

29

Toro 48-2630

Quadrant-Rear L.H.

$

$

Not available

Toro 48-2640

Quadrant-Rear R.H.

Note: Not illustrated

$

$

Not available

30

Toro 33-3208

ROD-SHIELD

$14.99

$

In Stock, Qty 16

0

31

Toro 44-0580

SHIELD-TRAILING
(Superseded to 112-9989)

$27.99

$

In Stock, Qty 16

0

32

Toro 46-7370

STEP PAD DECAL

$24.99

$

Usually ships in 3-6 days

0

33

Toro 25-7740

KNOB-ARM

$4.99

$

In Stock, Qty 13

0

34

Toro 44-0990

Spring Arm
(Superseded to 99-5260)

$47.99

$

Usually ships in 3-6 days

0

35

Toro 44-5270

PIVOT SCREW

$8.99

$

In Stock, Qty 13

0

36

Toro 48-2291

Wheel & Tire Assembly (Incl. Ref. #37-38 & 40)
(Superseded to 121-1380)

$100.99

$

In Stock, only 4 left!

0

37

Toro 302-5

FITTING-GREASE

$3.49

$

In Stock, Qty 16

0

38

Toro 48-2970

Bearing-Flanged

$

$

Currently unavailable

39

Toro 323-12

SCREW-HH

$2.49

$

In Stock, Qty 20+

0

40

Toro 48-2910

Spacer-Wheel Bearing

$

$

Not available

41

Toro 48-2920

WHEEL SPACER-HP

$

$

Not available

42

Toro 5-4460

WASHER-PIVOT

$7.99

$

In Stock, Qty 20+

0

43

Toro 32152-2

NUT-LOCK, CONE

$2.99

$

In Stock, Qty 20+

0

44

Toro 3256-23

WASHER-PLAIN

$2.49

$

In Stock, Qty 20+

0

45

Toro 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

46

Toro 48-2650

LH QUADRANT

$

$

Not available

47

Toro 3218-2

NUT-JAM

$0.99

$

In Stock, Qty 20+

0
