22020 - Toro Walk-Behind Mower (SN: 004000001 - 004999999) (1984) GRASS BAG ASSEMBLY NO. 11-5609 Parts Diagram

Walk-Behind Mower

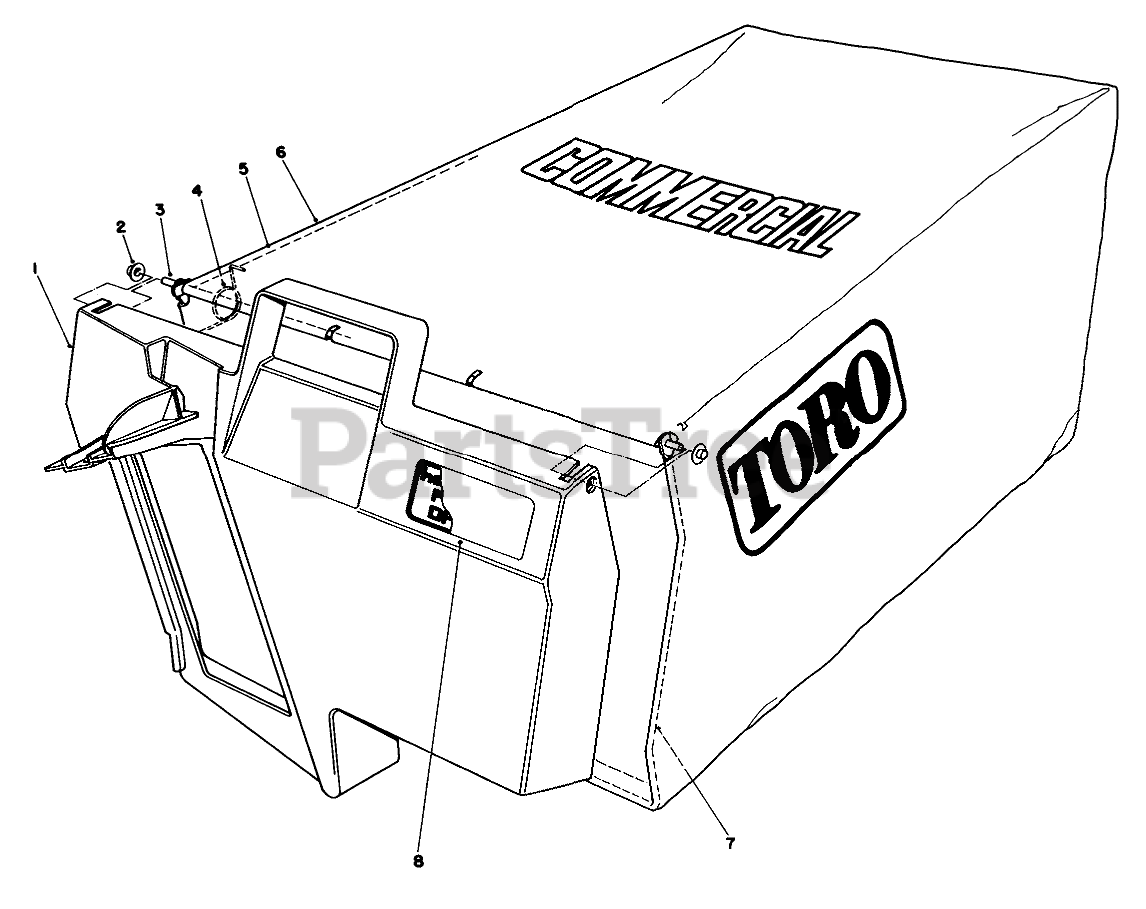

GRASS BAG ASSEMBLY NO. 11-5609 Parts Diagram

  • Title

1

Door-Grass Bag

Note: Order Complete Grass Bag Assembly 11-5609.

$

$

Not available

2

Toro 3290-422

NUT-PUSH

$1.99

$

In Stock, Qty 20+

0

3

Toro 33-4820

HINGE-DOOR, BAG

$13.99

$

In Stock, only 3 left!

0

4

Toro 36-6910

SPRING

$13.99

$

In Stock, only 2 left!

0

5

Toro 42-4030

FRAME-BAG, UPPER
(Superseded to 121-1388)

$28.99

$

Usually ships in 3-6 days

0

6

Bag-Grass

Note: Order Complete Grass Bag Assembly 11-5609.

$

$

Not available

7

Toro 42-4020

FRAME-BAG

$89.99

$

Usually ships in 3-6 days

0

8

Decal-Bag Door

Note: Order Complete Grass Bag Assembly 11-5609.

$

$

Not available

Toro 11-5609

Grass Bag Assembly (Incl. Ref. # 1-8)
(Superseded to 121-1391)

Note: Not illustrated

$200.99

$

In Stock, only 4 left!

0
