22025 - Toro Walk-Behind Mower (SN: 004000001 - 004999999) (1984) ENGINE ASSEMBLY Parts Diagram

Walk-Behind Mower

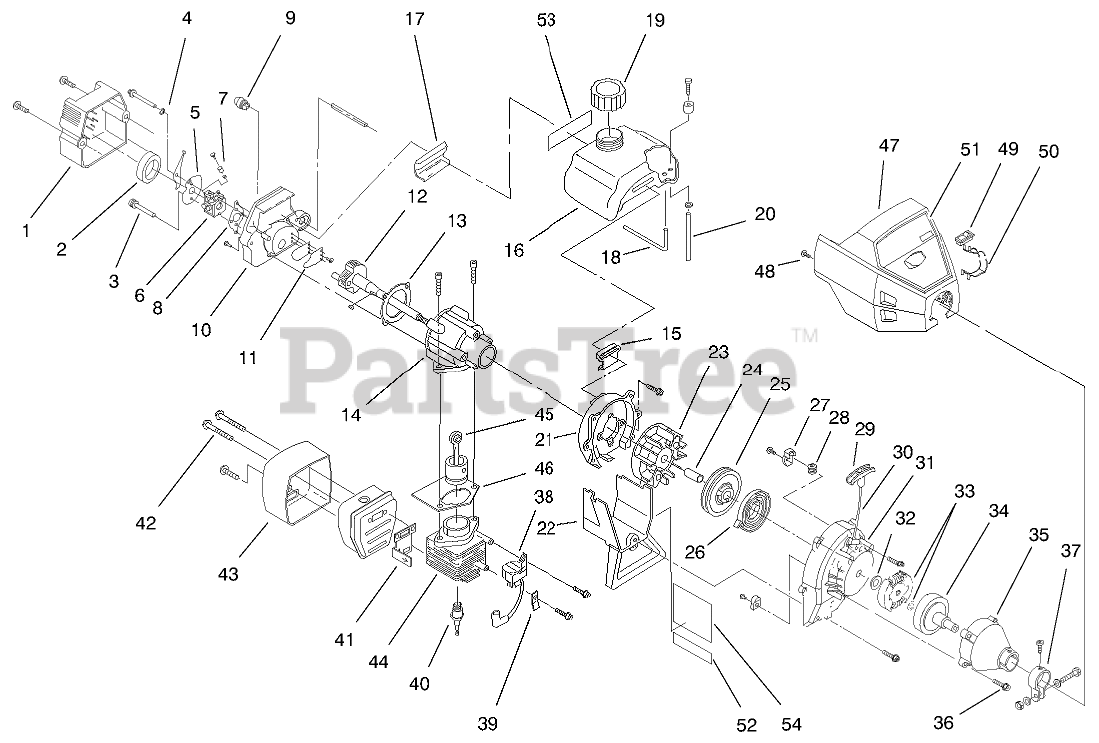

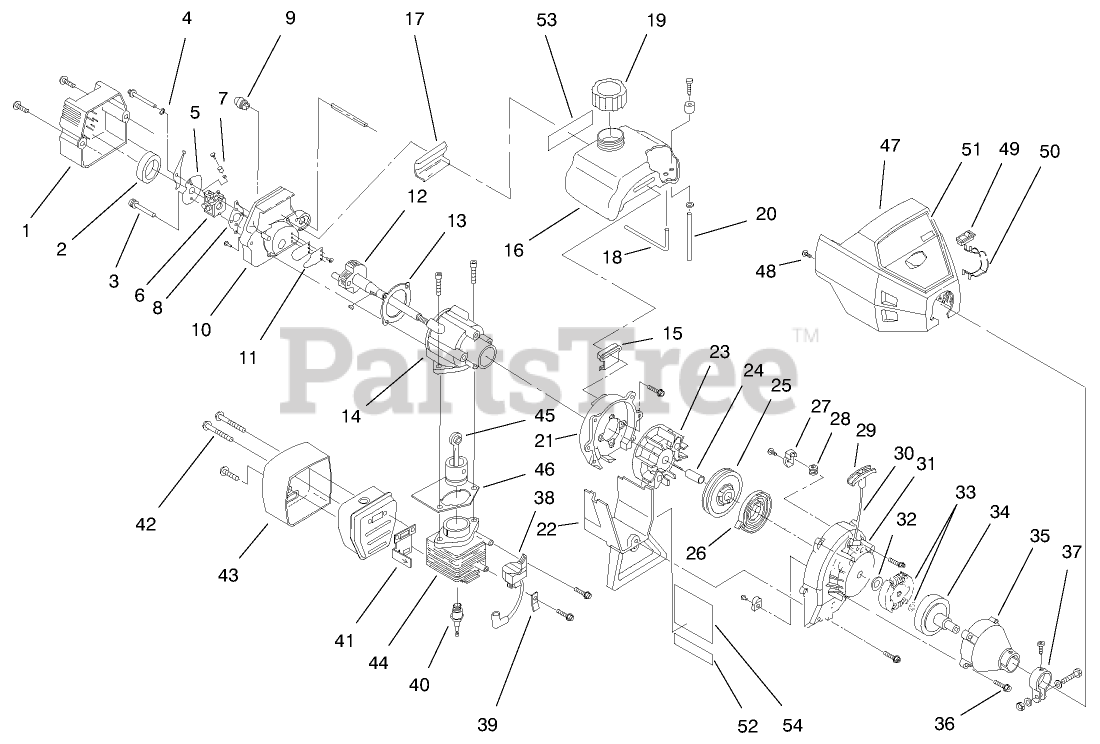

ENGINE ASSEMBLY Parts Diagram

  • Title

1

Toro 46-8291

Plate-Logo
(Superseded to 71-1260)

$7.49

$

Usually ships in 3-6 days

0

2

Toro 49-9030

Plate-Engine Logo
(Superseded to 77-0040)

$11.99

$

Usually ships in 3-6 days

0

3

Toro 3218-3

NUT-JAM

$0.99

$

In Stock, Qty 20+

0

4

Toro 81-0090

GASKET-AIR CLEANER

$7.99

$

In Stock, Qty 10

0

5

Toro 52-2200

Air Cleaner Assembly (Incl. Ref. #6, 8 & 9)

$553.99

$

Usually ships in 3-6 days

0

6

Toro 3256-53

WASHER-FLAT

$0.99

$

Usually ships in 3-6 days

0

7

Toro 51-3220

HEX FL HD M.6X1.0X25MM

$

$

Not available

8

Toro 3296-5

NUT-HEX

$3.49

$

In Stock, Qty 20+

0

9

Toro 52-2250

AIR CLEANER COVER WA

$

$

Not available

10

Toro 81-0140

SPIT BACK DEFLECTOR

$16.99

$

Usually ships in 3-6 days

0

11

Toro 237-127

5/16 ID BSHG

$

$

Not available

12

Toro 49-7810

NUT-LOCK
(Superseded to 33023-00)

$0.99

$

Usually ships in 3-6 days

0

13

Toro 81-1280

SCREW-HHF

$1.99

$

In Stock, Qty 6

0

14

Toro 81-0100

FILTER

$9.49

$

In Stock, only 4 left!

0

15

Toro 81-0120

AIR CLEANER COVER

$

$

Not available

16

Toro 52-2240

AIR CLEANER GUARD

$

$

Not available

Toro 59260

Complete Engine
(Superseded to 12-8099)

Note: Not illustrated

$

$

Not available
