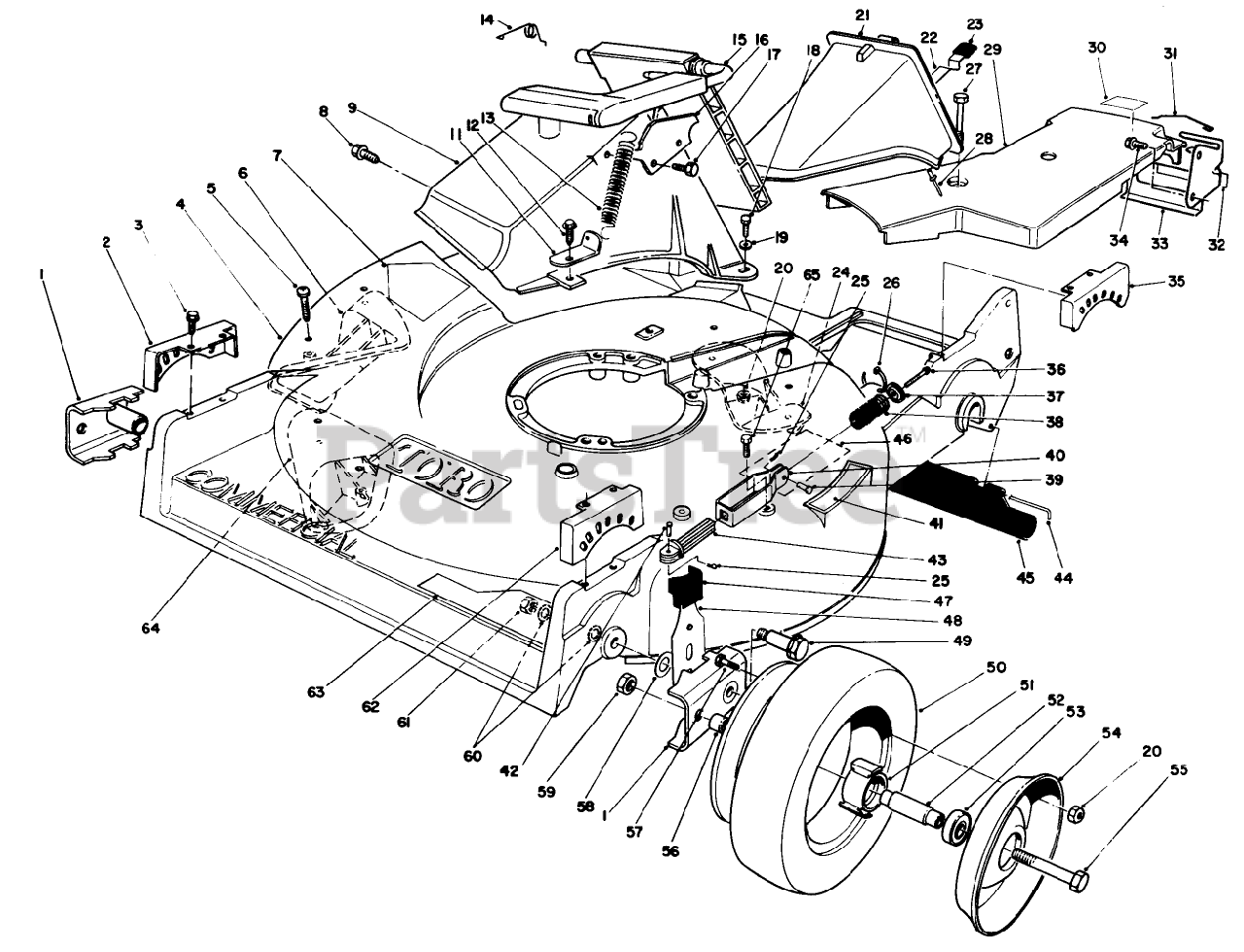

22025 - Toro Walk-Behind Mower (SN: 006000001 - 006999999) (1986) Housing Assembly Parts Diagram

Walk-Behind Mower

Housing Assembly Parts Diagram

  • Title

1

Toro 49-9180

PIVOT SCREW

$

$

Not available

2

Toro 52-2480

SPACER-WHEEL

$6.99

$

In Stock, only 3 left!

0

3

Toro 49-9160

PIVOT ARM

$81.99

$

Usually ships in 3-6 days

0

4

Toro 49-8800

SPRING ARM ASM-FRONT

$49.99

$

Usually ships in 3-6 days

0

5

Toro 25-7740

KNOB-ARM

$5.49

$

In Stock, Qty 12

0

6

Toro 53-7930

SPACER-PIVOT

$10.99

$

Usually ships in 3-6 days

0

7

Toro 52-2510

FRT RIGHT QUAD

$

$

Not available

8

Toro 11-9760

See Supercession: 49-2040
(Superseded to 49-2040)

$2.49

$

In Stock, Qty 20+

0

9

Toro 28-3260

BAG CHUTE PIN

$

$

Not available

10

Toro 28-3250

BAG CHUTE CLIP PIN

$

$

Not available

11

Toro 52-2570

DISCONTINUED

$

$

Not available

12

Toro 53-7910

See Supercession: 12-4739
(Superseded to 12-4739)

$

$

Not available

13

Toro 28-1430

LIFT LOOP

$

$

Not available

14

Toro 39-5770

DECAL-DANGER

$10.99

$

In Stock, Qty 6

0

15

Toro 52-2560

DEFLECTOR SPRING

$

$

Not available

16

Toro 28-3270

DISCONTINUED

$

$

Not available

17

Toro 52-2530

DISCONTINUED

$

$

Not available

18

Toro 29-4720

DISCONTINUED

$

$

Not available

19

Toro 3296-39

NUT-LOCK, NI

$2.99

$

In Stock, Qty 20+

0

20

Toro 274510

Spacer-Handle Latch

$

$

Currently unavailable

21

Toro 27-7071

DISCONTINUED
(Superseded to 100-3296-03)

$

$

Not available

22

Toro 52-2540

DISCONTINUED

$

$

Not available

23

Toro 52-2640

See Supercession: 117-5298
(Superseded to 117-5298)

$

$

Not available

24

Toro 323-12

SCREW-HH

$2.99

$

In Stock, Qty 7

0

25

Toro 52-2260

REAR PIVOT SCREW

$

$

Not available

26

Toro 33-3201

SHIELD ROD

$

$

Not available

27

Toro 3290-340

WASHER-BELLEVILLE

$8.99

$

In Stock, Qty 6

0

28

Toro 52-2360

HANDLE LATCH SPACER

$

$

Not available

29

Toro 46-7370

STEP PAD DECAL

$28.99

$

Usually ships in 3-6 days

0

30

Toro 323-11

SCREW-HH

$2.49

$

In Stock, Qty 20+

0

31

Toro 52-2520

DISCONTINUED

$

$

Not available

32

Toro 52-2500

CRNKSHFT PROTECT ASM

$133.99

$

Usually ships in 3-6 days

0

33

Toro 3254-6

WASHER-LOCK, INTERNAL

$0.99

$

Usually ships in 3-6 days

0

34

Toro 32144-11

SCREW-THD ROLL, HWH

$8.49

$

In Stock, only 2 left!

0

35

Toro 52-2170

See Supercession: 52-2170-03
(Superseded to 52-2170-03)

$82.99

$

In Stock, only 2 left!

0

36

Toro 8-5230

See Supercession: 8-5230-03
(Superseded to 8-5230-03)

$41.99

$

Usually ships in 3-6 days

0

37

Toro 26-0671

SCREW-HH

$9.49

$

In Stock, Qty 12

0

38

Toro 3253-22

WASHER-LOCK

$2.99

$

In Stock, only 2 left!

0

39

Toro 27-8590

KEY-SQUARE

$6.99

$

Usually ships in 3-6 days

0

40

Toro 3230-16

SCREW-CARR

$2.99

$

In Stock, Qty 20+

0

41

Toro 52-2650

DISCONTINUED
(Superseded to 52-2650-01)

$

$

Not available

42

Toro 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

43

Toro 3296-56

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

44

Toro 53-7780

See Supercession: 121-1365-06
(Superseded to 121-1365-06)

$19.99

$

In Stock, only 2 left!

0

45

Toro 53-7890

DISCONTINUED
(Superseded to 12-4729)

$

$

Not available

46

Toro 52-2450

BEARING-WHEEL

$20.99

$

In Stock, Qty 20+

0

47

Toro 52-2440

SPACER-BEARING

$11.99

$

In Stock, only 3 left!

0

48

Toro 52-2410

HUB-BEARING

$36.99

$

In Stock, Qty 13

0

49

Toro 53-7740

TIRE

$43.99

$

In Stock, only 3 left!

0

50

Toro 3234-26

SCREW-HHF

$3.49

$

In Stock, Qty 9

0

51

Toro 46-6811

SCREW-HWH

$3.99

$

In Stock, only 3 left!

0

Toro 53-7760

See Supercession: 121-1380
(Superseded to 121-1380)

Note: Not illustrated

$106.99

$

Usually ships in 3-6 days

0

Toro 53-7720

See Supercession: 121-1380
(Superseded to 121-1380)

Note: Not illustrated

$106.99

$

Usually ships in 3-6 days

0
